84" Wide Bi-Fold Pass Through Window - Multiple Heights

84" Wide Manual Fold-Up Window – Custom Heights Available

Product Description:

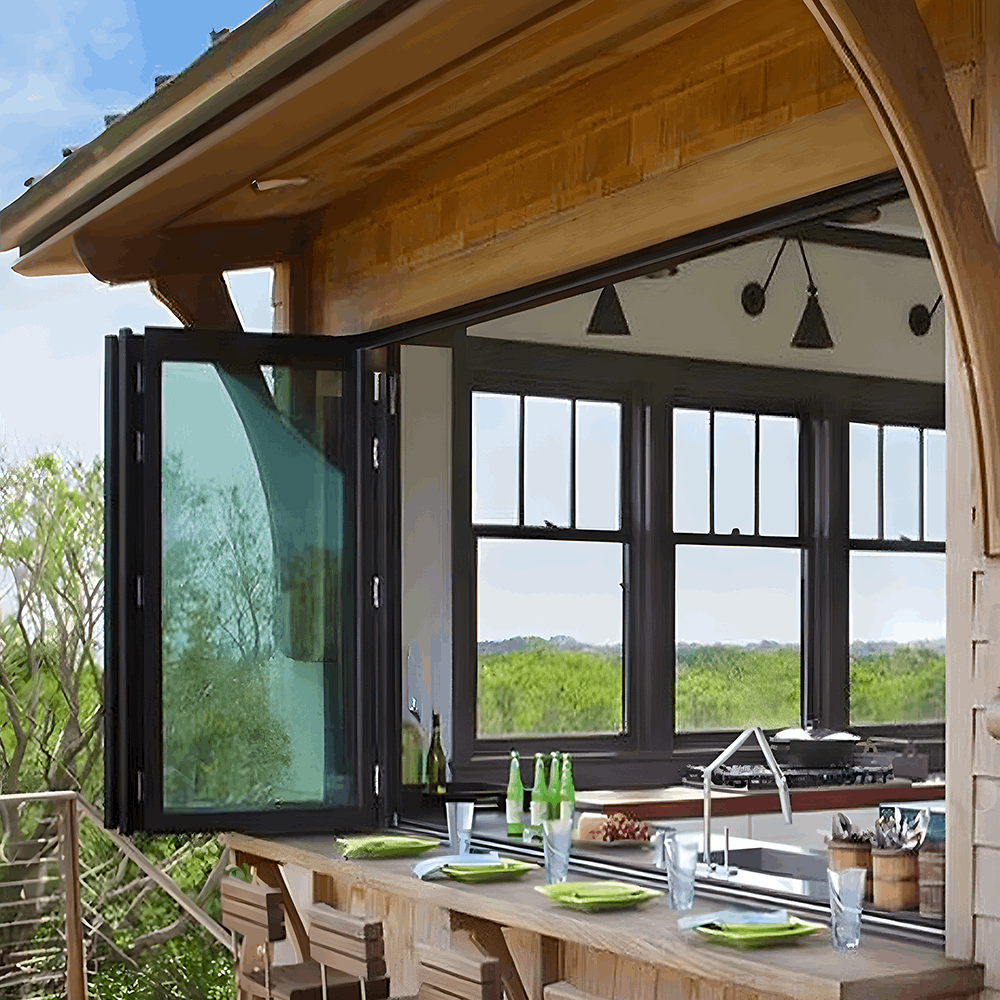

Bring modern elegance and superior functionality to your space with our 48-inch wide manual fold-up window, available in a variety of heights to suit your project needs. This innovative pass-through window is perfect for residential, commercial, or hospitality applications where style meets performance.

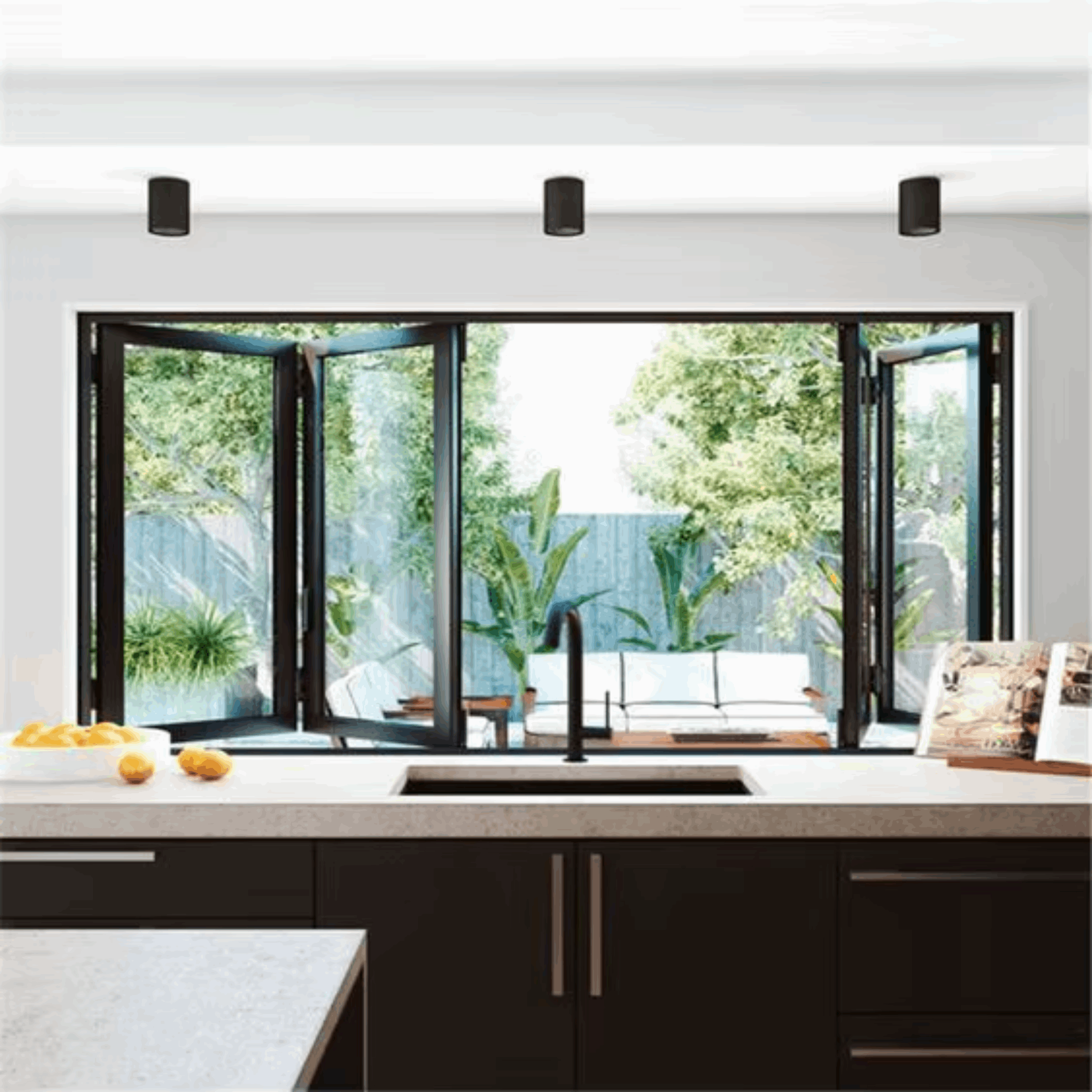

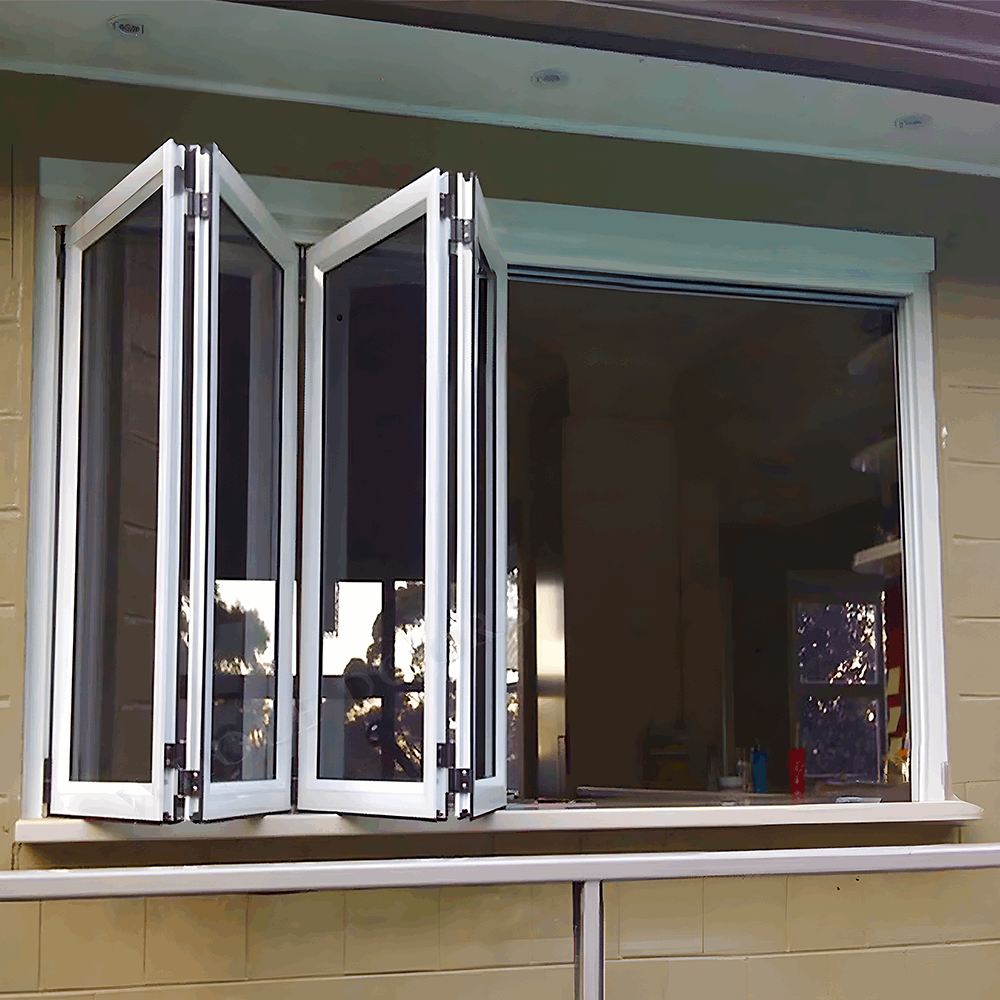

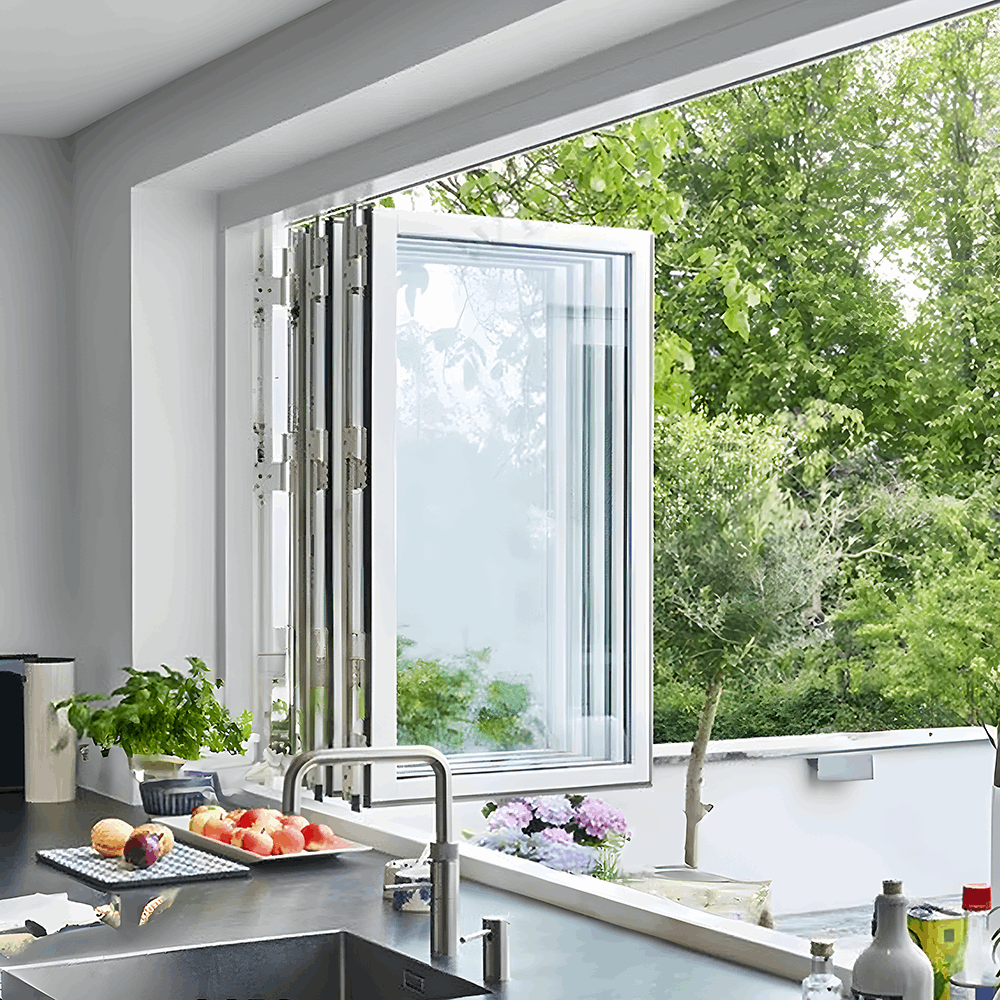

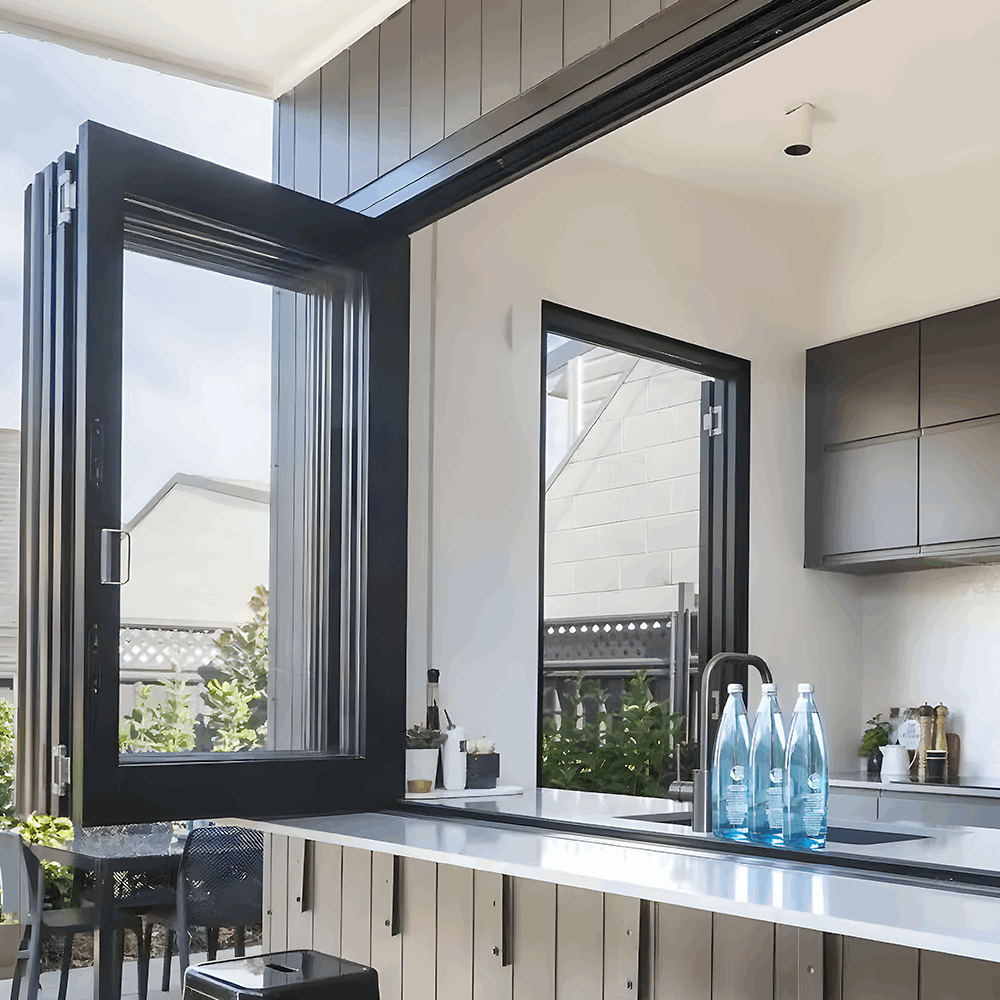

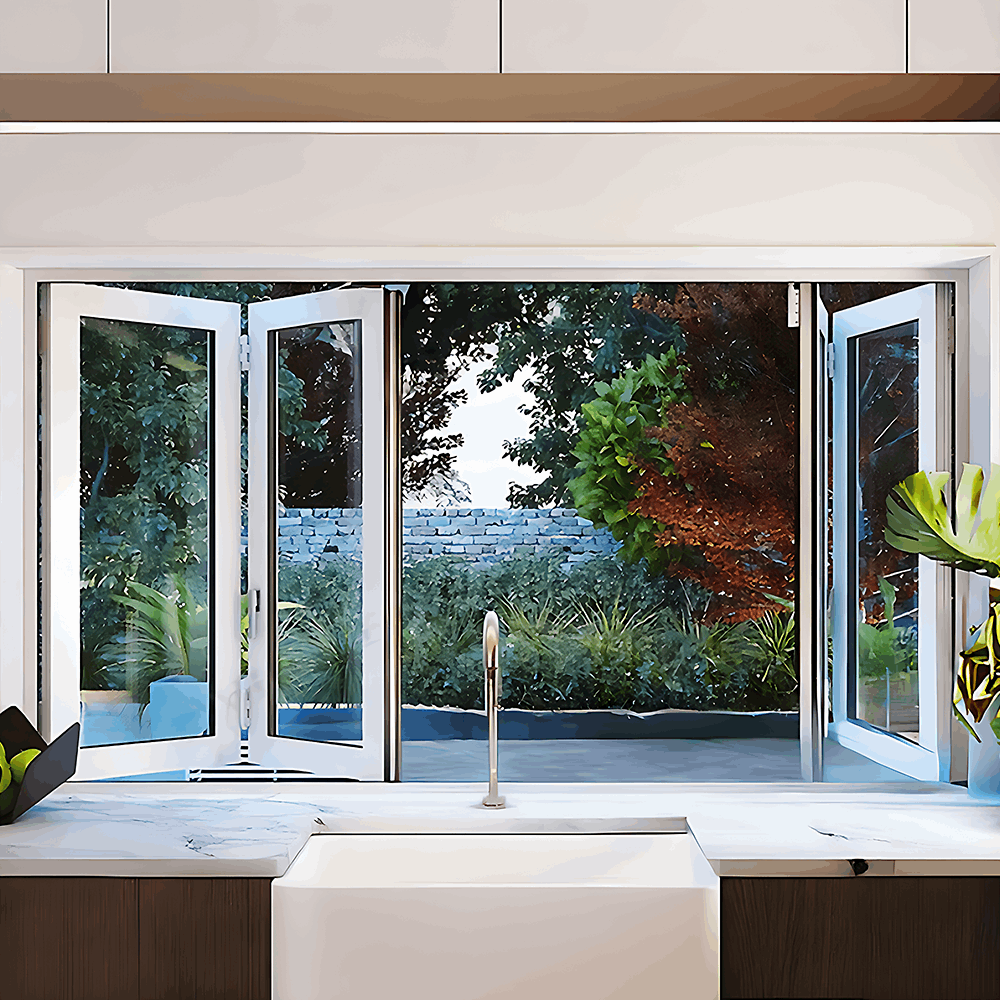

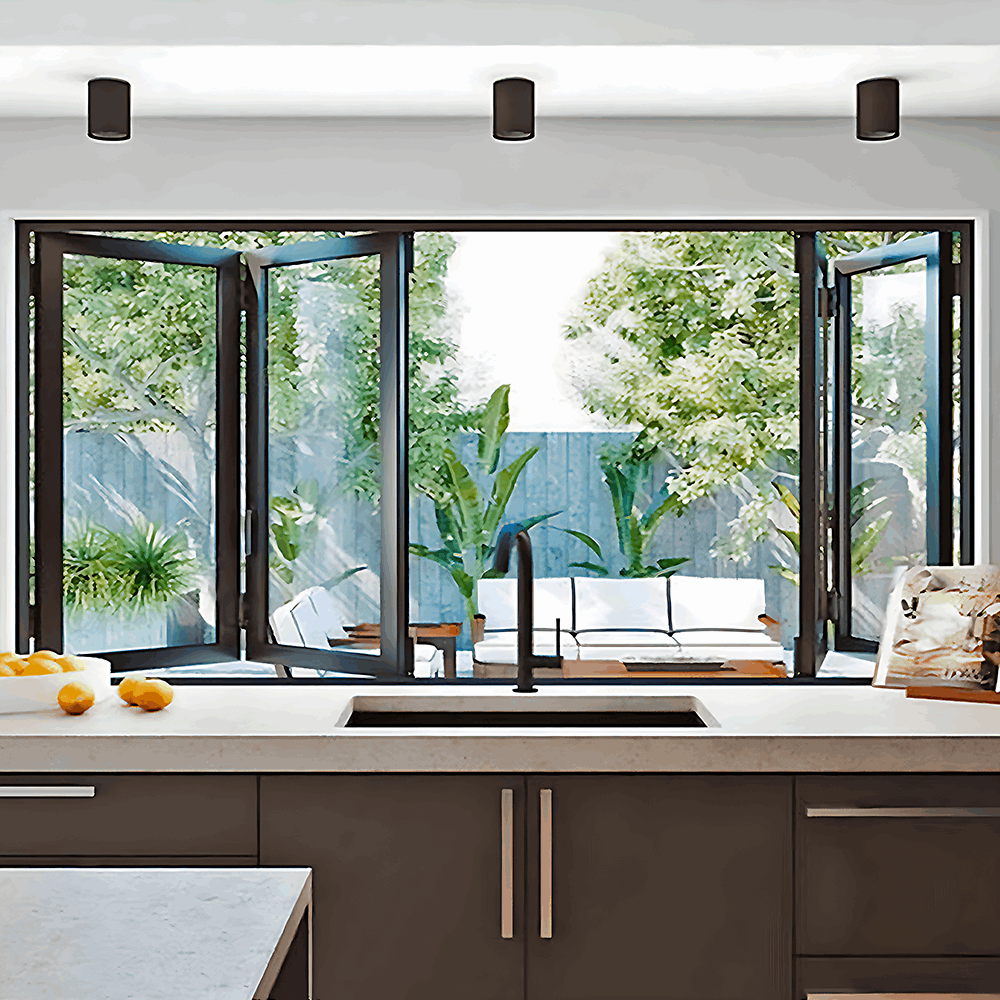

Whether you’re designing a kitchen pass-through, outdoor bar, or indoor-outdoor living space, this window delivers exceptional natural light, ventilation, and space-saving design—ideal for both traditional and contemporary builds.

Key Features:

• Available Sizes: 84" wide with customizable heights

• Frame Material: Premium 6063-T5 Aluminum Alloy, 2.2mm thick for enhanced durability

• Finish Options: Sleek black or white powder-coated frame for a modern, corrosion-resistant look

• Operation: Manual fold-up design—window opens upward to 70% of height for improved airflow

• Glass Type: 5+12A+5mm double-tempered Low-E glass

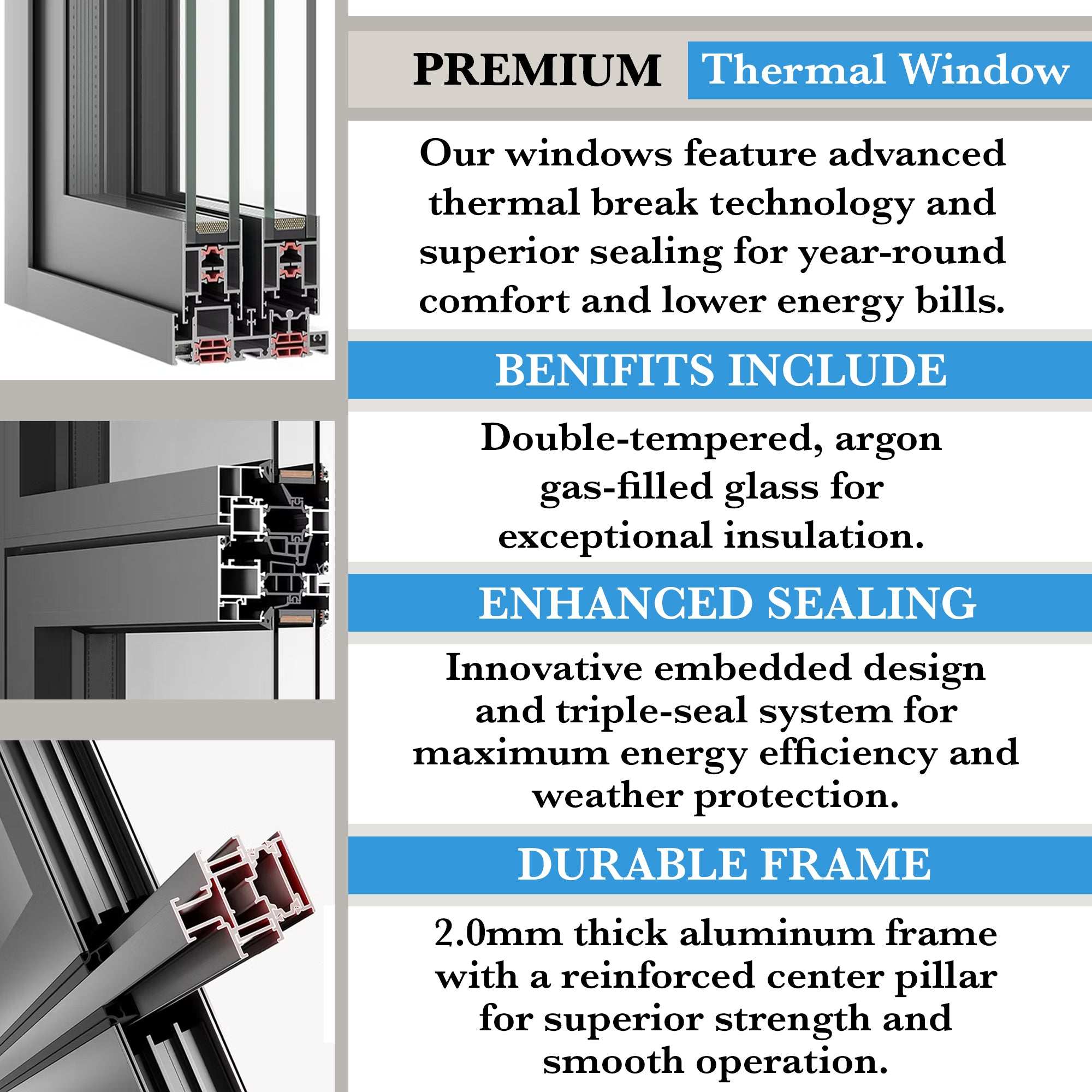

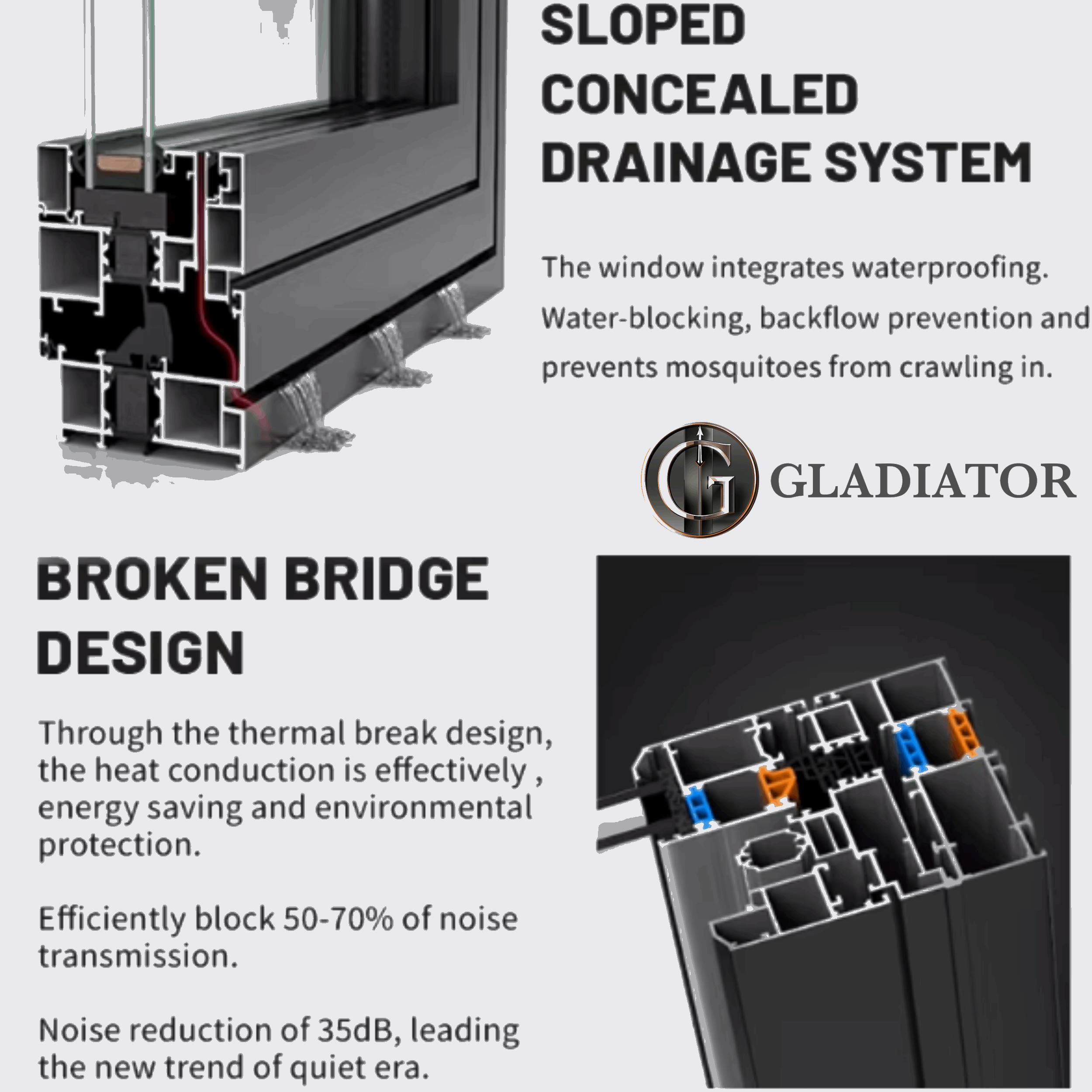

• Thermal Break Technology: Reduces energy loss and improves insulation

• Sealing: Three-layer weather-seal system for improved air and water resistance

• Drainage: Hidden internal drainage system to prevent water intrusion

• Soundproofing: Up to 30 dB sound reduction

• Security: Heavy-duty six-point locking system and optional anti-theft flyscreen

Performance Ratings:

• U-Factor: 0.26 – 0.29

• SHGC (Solar Heat Gain Coefficient): 0.23 – 0.32

• Air Permeability: 4.5 m³/m·h

• Water Tightness: Rated up to 300 Pa

• Wind Load Resistance: Rated up to 4500 Pa

• Thermal Insulation: Uw: 2.3 W/m²·K

Customization Options:

• Multiple height sizes to choose from

• Custom frame colors available upon request

• Glass tinting and specialty glass upgrades

• Optional locking handles and screens

• Suitable for residential, commercial, or luxury applications

Shipping & Packaging:

• Nationwide Delivery: Free shipping within the U.S.

• Secure Packaging: Professionally crated to prevent damage in transit

• Tracking Included: Get regular updates from production to delivery

• Lead Time: Estimated 10–12 weeks for custom fabrication

Why Choose Our Fold-Up Window?

• Expertly engineered for modern living spaces

• Boosts natural light and ventilation

• Enhances indoor-outdoor flow for kitchens, patios, or serving counters

• Designed with both aesthetics and efficiency in mind

Request a Quote or Custom Order

Ready to upgrade your space with a stylish, energy-efficient fold-up window? Contact our team today to discuss sizes, finishes, and customization options. Whether you’re ordering for a single home or a large-scale commercial project, we’re here to help.

Contractors & Builders:
Ask about bulk discounts and wholesale pricing for your next project.

All windows meet U.S. installation standards (NRFC - IGCC & EU CE Approved).
