By the Gladiator Window & Doors Specification Team — factory-direct aluminum door manufacturer, Jacksonville, FL. Our engineering and product teams spec bifold and sliding systems daily for residential, mixed-use, and commercial projects across the country.

The short answer: bi-fold doors maximize open space and drama; sliding doors maximize weather-tightness, slim sightlines, and everyday ease. Neither is universally better — the right call depends on opening width, climate exposure, traffic patterns, and budget. This guide gives contractors, builders, and designers the concrete specs, cost data, and use-case logic to make the right decision on every project.

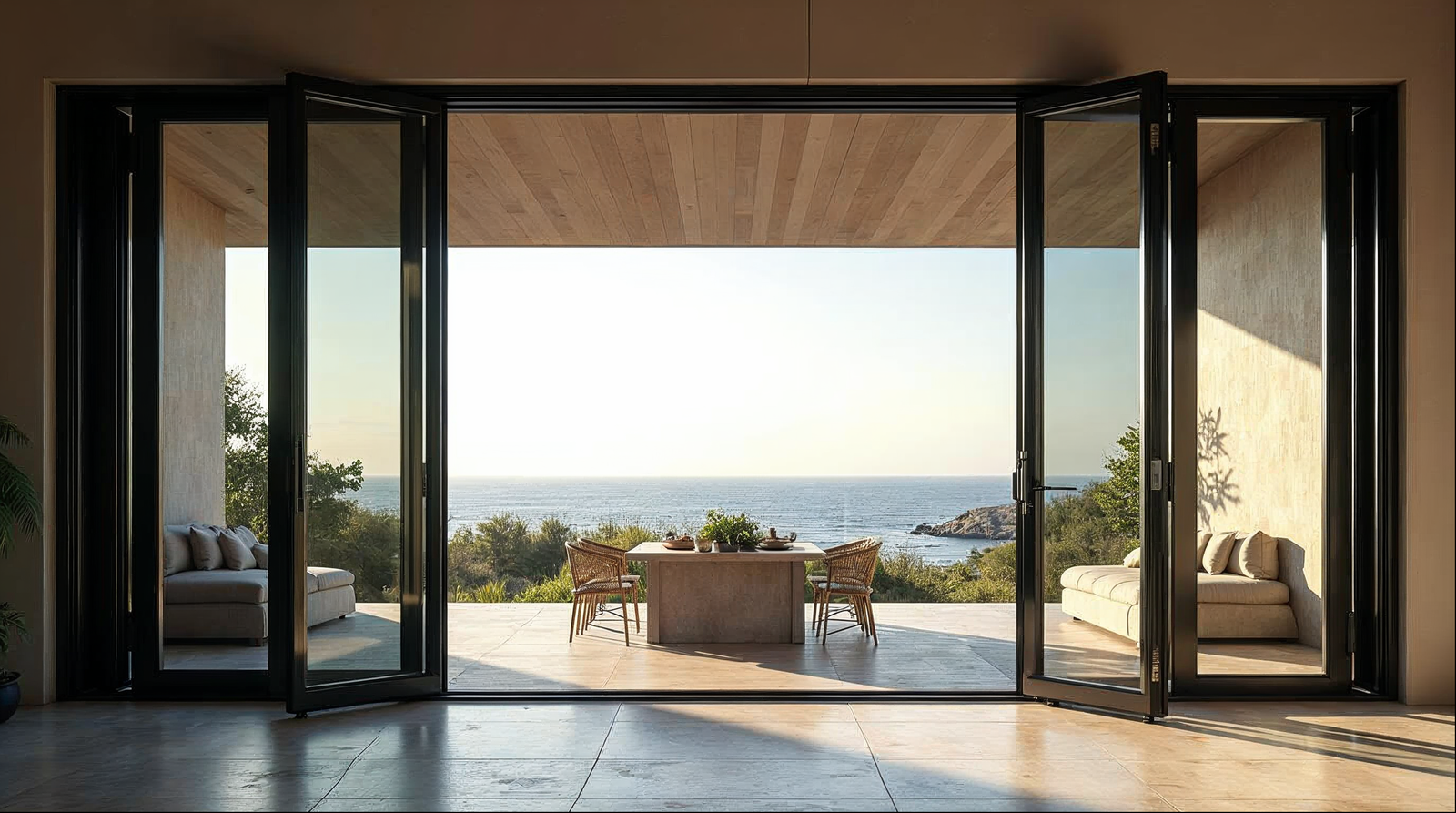

How does a bifold door system work?

A bifold door — also called a folding or accordion door — operates on a top-hung or bottom-rolling track: panels fold against each other in a concertina stack that piles to one or both sides of the opening, leaving virtually the entire rough opening clear. Gladiator's aluminum bi-fold door systems support 3- to 12-panel configurations spanning up to 36 ft wide and 10 ft tall per section, with each panel typically 18–36 inches wide. The folding action is driven by heavy-duty stainless steel rollers riding a precisely extruded aluminum track. Because panels stack completely out of the structural opening, a 20-foot bi-fold produces roughly 19+ feet of usable clear width — typically 90–95% of the rough opening.

• Panel count: 3 to 12 panels per run
• Max single-run width: ~36 ft (multi-run configurations wider)
• Max panel height: 10 ft standard; custom taller available
• Glass: 6mm tempered or laminated standard; dual-pane IGU available
• Track profile: low-profile flush threshold (ADA-compatible options)
• Stack direction: single-stack (all panels one side) or center-fold (split both sides)

How does a sliding glass door system work?

A sliding door system moves one or more panels horizontally along a fixed track; panels glide past each other or into a wall pocket rather than folding. Gladiator's sliding glass door systems use thermally broken aluminum frames, heavy-duty stainless rollers, and multi-point locking hardware. Panel widths run up to 72 inches each; configurations include 2-, 3-, and 4-panel (OX, OXO, OX/XO) and lift-and-slide or pocket-slide variants. Because at least one panel always occupies the track, a 12-foot two-panel slider delivers roughly 6 feet of clear opening — 50% of the rough opening for a standard two-panel, though a three-panel XOX yields ~67%.

• Panel count: 2 to 6 panels per run
• Max panel width: ~72 in per panel
• Max panel height: 10 ft standard
• Glass: 6mm tempered or laminated standard; dual-pane IGU available
• Track profile: ultra-low-profile 3/4 in threshold; flush options available
• Thermal break: standard on all Gladiator aluminum slider frames

Bifold vs. sliding doors: full side-by-side comparison

Use this table to compare the two systems across every spec dimension that matters to contractors, builders, and architects. All figures reflect Gladiator factory-direct aluminum systems.

Spec / Factor	Bi-Fold Door	Sliding Glass Door
Clear opening width	90–95% of rough opening	45–67% of rough opening (config-dependent)
Sightlines (closed)	Moderate — vertical panel joints visible	Minimal — single slim center meeting stile
Frame material	Thermally broken aluminum	Thermally broken aluminum
Glass standard	6mm tempered or laminated	6mm tempered or laminated
Max single-run width	~36 ft	~24 ft (4-panel)
Max panel height	10 ft standard	10 ft standard
Weather-tightness	Good — multi-point locks, compression seals; fewer panel-to-panel seals reduce performance at extremes	Excellent — fewer moving joints, robust meeting-stile compression seals, superior air/water ratings
Impact / hurricane rating	Available with laminated glass + reinforced frames (Miami-Dade NOA path)	Available with laminated glass + reinforced frames (Miami-Dade NOA path)
U-factor (IGU option)	As low as 0.28 (dual-pane IGU)	As low as 0.26 (dual-pane IGU)
SHGC options	0.22–0.40 depending on glass spec	0.22–0.40 depending on glass spec
Daily operability	Requires full panel sequence to open; not ideal for quick pass-through	One-handed glide; instant single-panel access
Stack / pocket option	Panels stack to wall face (require clearance)	Panels slide into wall pocket or behind fixed panel
Floor space impact	Stacked panel depth 4–8 in per panel thickness	Minimal — panels disappear into wall or stack flush
Structural header	Larger clear span required; engineer header for wide runs	Standard beam per code; less cantilever load
Installation complexity	Moderate-high: track alignment critical; plan for plumb/level tolerances	Moderate: track is simpler; fewer moving parts
Lead time (Gladiator factory-direct)	4–8 weeks custom	4–8 weeks custom
Shipping	Free nationwide (Gladiator)	Free nationwide (Gladiator)
Relative cost (same opening)	Higher — more panels, more hardware, more glass	Lower — fewer panels, simpler track, less hardware
Best application	Indoor-outdoor living walls, entertainment spaces, resort/hotel amenities	Everyday patio access, bedrooms, commercial entries, hurricane zones

What is the cost difference between bifold and sliding doors?

Bifold doors cost more than sliding doors for the same rough opening — plan for a 25–50% premium depending on panel count and glass spec. The cost gap is driven by panel count (more panels = more glass, more hardware, more extrusion), not by material quality, which is identical across both systems. On a typical 12-foot opening, a two-panel sliding door will use two glass panels and one track; a four-panel bifold covering the same opening uses four glass panels, four sets of hinges, four sets of stainless rollers, and a folding hardware kit.

Key cost drivers to communicate to clients

• Panel count: Every additional panel adds glass, frame, and hardware cost linearly.
• Glass spec: Upgrading from single 6mm tempered to dual-pane IGU adds cost but improves U-factor and SHGC significantly — worth it in Florida and Sun Belt climates.
• Opening width: Wider openings require structural header upgrades (especially bi-fold); factor engineering costs into the project budget.
• Finish: Matte black and dark grey anodized finishes carry no upcharge at Gladiator — unlike many distributors who surcharge specialty colors.
• Factory-direct advantage: Gladiator ships direct with no distributor markup, no upcharges for standard finishes, and free nationwide freight — contractors typically save 15–30% vs. dealer-supplied aluminum systems of equivalent spec.

Which door system is more weather-tight?

Sliding doors generally outperform bi-fold doors on air infiltration and water resistance ratings, because they have fewer panel-to-panel seal interfaces. A two- or three-panel slider has a single meeting stile with compression seals and a bottom sweep; a six-panel bifold has five hinge points and five inter-panel seals, each of which is a potential infiltration path. For projects in high-wind, hurricane-prone, or coastal salt-air environments — particularly Florida, the Gulf Coast, and the Carolinas — sliding doors are the lower-risk specification. Both systems can be impact-rated with laminated glass and reinforced frames; always confirm the project's local wind-load requirements and verify NOA/Miami-Dade approval status before speccing either system in HVHZ zones.

Which projects call for bifold doors, and which call for sliding doors?

Bi-fold doors are the right spec when maximum clear opening and the "disappearing wall" effect are the primary goals; sliding doors are the right spec when weather performance, daily ease of use, or tighter budgets take priority. Here is a practical breakdown by project type:

Specify bi-fold doors when:

• The client wants a full indoor-outdoor connection — living room to pool deck, kitchen to lanai — with no visual or physical barrier when open.
• The opening is 16 ft or wider and the design calls for a statement feature (resort hotels, luxury residential, event venues).
• The space is used for entertaining and the door will be opened fully for extended periods, not just quick pass-through traffic.
• Architectural sightlines when closed are less critical — the vertical panel joints are acceptable in the design language.
• The project is in a mild-to-moderate climate zone where extreme weather-sealing is not the primary performance driver. See our full guide to Gladiator bi-fold door systems for configurations and specs.

Specify sliding doors when:

• The project is in a hurricane-zone or high-humidity coastal environment where superior weather-tightness is non-negotiable.
• The door will see daily residential traffic — bedrooms, primary suites, smaller patios — where one-handed, single-panel operation is practical and preferred.
• The budget is constrained but the client still wants floor-to-ceiling glass and premium aluminum framing.
• Sightlines are a priority: a slim center meeting stile on a closed slider is far less visually disruptive than five or seven vertical bi-fold joints.
• A pocket-slide or wall-pocket configuration is required to fully conceal panels. Browse Gladiator sliding glass door systems for panel count and pocket-slide options.

Consider combining both systems

On large-format projects — resort amenities, high-end spec homes, mixed-use commercial — it often makes sense to spec bi-fold doors on the primary entertainment wall and sliding doors on secondary bedroom or utility openings. This gives clients the wow factor where it counts while managing cost and weather performance elsewhere. Gladiator's factory-direct pricing makes mixing systems budget-neutral compared to dealer-supplied alternatives. You may also want to explore folding passthrough windows for bar, kitchen, or servery openings adjacent to bifold door walls — they pair naturally with accordion-style living spaces.

What should contractors check before speccing either system?

Before locking in a specification, verify these four things regardless of which system you choose:

1. Structural header capacity: Wide bi-fold runs (16 ft+) demand engineered headers. Confirm beam size and bearing with your structural engineer before ordering.
2. Floor levelness and threshold type: Both systems require a level, plumb, and square rough opening. Bi-fold tolerances are tighter; an out-of-level track causes binding and seal failures.
3. Local wind-load and impact code: In Florida HVHZ, Texas coastal counties, and other high-wind zones, confirm your system carries the required NOA or product approval. Gladiator's team can advise on the right glass and frame spec for your jurisdiction.
4. Stack clearance (bi-fold) or pocket depth (slider): Bi-fold panels stack on the wall face — confirm there are no obstructions (light switches, sconces, columns) in the stack zone. Pocket sliders require sufficient wall depth for the panel thickness plus frame.

For projects requiring a refined entry statement rather than a wide patio wall, also consider pivot doors — a single oversized slab on a central pivot delivers maximum impact with minimum track complexity.
