What is the most common sliding glass door size for a residential patio?

The most common residential sliding glass door size is a 2-panel unit measuring 6 ft wide by 6 ft 8 in tall (72 in × 80 in) or 8 ft wide by 8 ft tall (96 in × 96 in). Most Florida pool-patio projects, however, opt for 4- to 6-panel custom configurations between 12 ft and 24 ft wide for a more open indoor-outdoor feel.

Can sliding glass doors be made taller than 8 feet?

Yes. Custom aluminum sliding glass doors can be manufactured to 10, 11, or even 12 feet tall. Taller panels require heavier-duty hardware and thicker structural framing, and the rough opening preparation must accommodate the increased header depth.

Do sliding glass doors in Florida need to be impact-rated?

In most of Florida — including Jacksonville coastal areas and all of South Florida — the Florida Building Code requires sliding glass doors in wind-borne debris regions to meet impact standards (or be protected by impact-rated shutters). Gladiator sliding systems are engineered with impact-laminated insulated glass and reinforced frames to meet these requirements.

How much wall space do the panels take up when open?

In a standard configuration, sliding panels stack behind one another on the track, occupying roughly the width of the active panels on one side of the opening. A 4-panel system (2 active, 2 fixed) will leave half the opening clear. For a fully unobstructed opening, bi-fold accordion doors are worth considering, as they fold and stack flush against the wall.

Can I order a sliding glass door in a non-standard size?

Absolutely. Gladiator builds every door to the customer's exact rough opening dimensions at our Jacksonville factory. There are no standard-size limitations, and ordering a custom size does not add a special-order wait or middleman markup.

Sliding Glass Door Sizes: Spans & Widths Guide (2026)

By Gladiator Window & Doors July 08, 2026

What are standard sliding glass door sizes?

Standard sliding glass door sizes typically run 60 inches (5 ft) to 96 inches (8 ft) wide and 80 inches (6 ft 8 in) to 96 inches (8 ft) tall for two-panel configurations. These dimensions fit the rough openings found in most residential framing, which is why big-box retailers stock them. However, "standard" in the aluminum architectural market — and especially in Florida's growing indoor-outdoor living segment — stretches well beyond those numbers. Custom multi-panel systems can reach 30 feet wide or more in a single continuous run, with heights up to 10 or 12 feet depending on the structural framing and glass weight constraints.

What sliding glass door widths are available by panel count?

Width is almost entirely a function of how many panels you specify and the width of each individual panel leaf. As a practical reference, here is how common configurations map to total opening widths:

Configuration	Typical Panel Width Each	Total Rough Opening Width	Common Use
2-panel (1 active / 1 fixed)	30–48 in	5 ft – 8 ft	Bedroom, small patio
3-panel (2 active / 1 fixed)	30–48 in	7.5 ft – 12 ft	Mid-size living room
4-panel (2 active / 2 fixed or all active)	36–48 in	12 ft – 16 ft	Great room, pool deck
6-panel	36–48 in	18 ft – 24 ft	Open-plan living, hospitality
8-panel	36–48 in	24 ft – 32 ft	Large estate, commercial

At Gladiator, our sliding glass doors are factory-built to your exact rough opening, so the numbers above are starting points, not hard limits. If your architect calls out a 22-ft-wide opening, we build it — no special-order surcharge from a middleman.

How tall can a sliding glass door be?

Residential sliding glass doors commonly max out at 8 ft (96 in) tall in stock configurations, but custom aluminum systems routinely reach 10 ft, 11 ft, or 12 ft of clear height. Taller panels require heavier-gauge aluminum profiles and larger-format glass lites, which increases the panel weight significantly — a 10-ft-tall, 4-ft-wide panel in tempered insulated glass can weigh over 200 lbs. That weight is managed by robust stainless-steel bottom-rolling hardware and multi-point locking, which our systems include as standard. Structural header depth also increases with height, so confirm your rough opening with a structural engineer for anything above 10 ft.

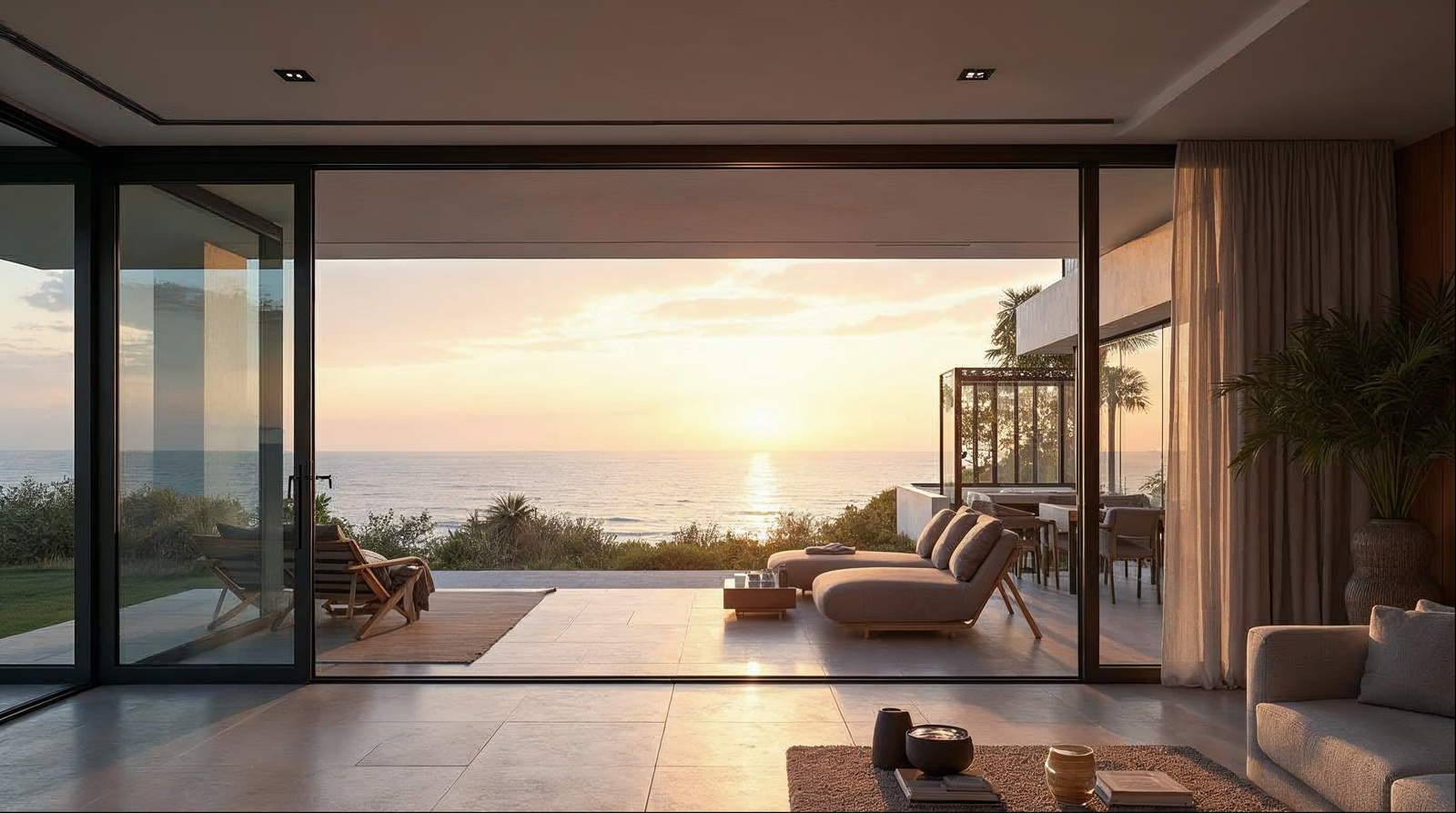

Custom sliding glass door sizes shown in a Jacksonville Florida modern home opening to a landscaped patio

What is the maximum span for a sliding glass door system?

For a residential multi-slide system, 30 to 35 feet is a realistic upper bound before the engineering of the structural header, sill track deflection, and glass weight become cost-prohibitive. Commercial sliding or "lift-and-slide" systems in hospitality or retail applications can exceed that, but those projects are engineered case-by-case. In practice, most Florida homeowners installing a dramatic indoor-outdoor wall choose a run between 16 ft and 24 ft, which delivers a fully open feel without extraordinary structural requirements. For openings wider than that, some designers pair two sliding door systems flanking a fixed center lite, or compare sliding with our bi-fold folding doors, which can stack completely out of the way in very wide openings.

What glass options are available, and does that affect sizing?

Glass selection affects both performance and the maximum practical panel size. The most common options for Florida projects are:

Single-pane tempered — lightest weight, permitted only in limited interior or non-impact applications.
Dual-pane insulated (IGU) — standard for energy efficiency; the added weight and thickness (typically 1 in overall unit) constrains maximum panel size somewhat.
Impact-rated laminated IGU — required in Florida's wind-borne debris regions (most of the state, including the Jacksonville metro coastal zones); adds further weight. Panel widths above 48 in may require thicker glass laminates to meet Florida Building Code (FBC) impact standards.
Low-E coatings — applied to the IGU interior surface; no meaningful size effect, but critical for Florida's solar heat gain requirements under the Florida Energy Conservation Code.

All Gladiator sliding systems are engineered for impact compliance from the ground up — the frame profiles, glazing pockets, and hardware are sized together rather than retrofitted, which is why sizing a custom panel correctly at the factory stage matters so much.

What rough opening dimensions should I provide?

When ordering a custom sliding glass door, you need to supply the rough opening width (RO-W) and rough opening height (RO-H), measured from framing member to framing member. The manufacturer deducts the frame and sill tolerances to arrive at the finished door unit size — typically ½ in to ¾ in smaller than the rough opening on each side for shimming and leveling. For slab-on-grade Florida homes, also confirm the sill track type: flush-mount (recessed into the slab for a zero-threshold feel) vs. surface-mount, as these require different rough opening preparations and affect the net clear height.

Multi-panel sliding glass door spanning a wide great-room opening in a Florida luxury home

How do sliding glass door sizes compare to other door types?

Understanding how sliding doors fit against alternatives helps you choose the right system for your opening:

Sliding vs. bi-fold: Sliding panels never leave the plane of the wall, so they suit narrower patios where a swinging or folding panel would be obstructed. Bi-fold doors fold accordion-style and create a completely open aperture, but each panel is narrower and the stacked panels take up wall space on one or both sides. Explore our bi-fold door collection if you want a fully open corner or wall.
Sliding vs. pivot: Pivot doors are a dramatic single-slab entry statement, typically 3–6 ft wide and up to 12 ft tall. They don't span wide openings the way multi-panel sliders do.
Sliding vs. passthrough windows: For a kitchen-to-lanai or bar counter application, a folding passthrough window serves a similar indoor-outdoor brief at counter height without requiring a floor-level rough opening.

What does size affect in terms of cost?

Four factors drive cost as you scale up sliding door size: glass area (the largest single cost component), panel count and hardware (each panel adds a roller assembly and lock point), frame extrusion weight (heavier profiles for taller or wider spans), and impact glazing specification (laminated IGU for Florida coastal zones costs more per square foot than standard insulated glass). Because Gladiator manufactures and ships factory-direct, you avoid the typical distributor and dealer markups — meaning a custom 20-ft sliding system from us is frequently priced comparably to an off-the-shelf unit of the same size from a traditional supply chain.

Ready to spec your sliding glass door?

Whether you have a precise rough opening in hand or are still in the design phase, our team can walk through the options with you — panel count, glass spec, finish, and Florida impact compliance — without any sales pressure. Browse our sliding glass door systems or reach out directly for a factory-direct quote.
