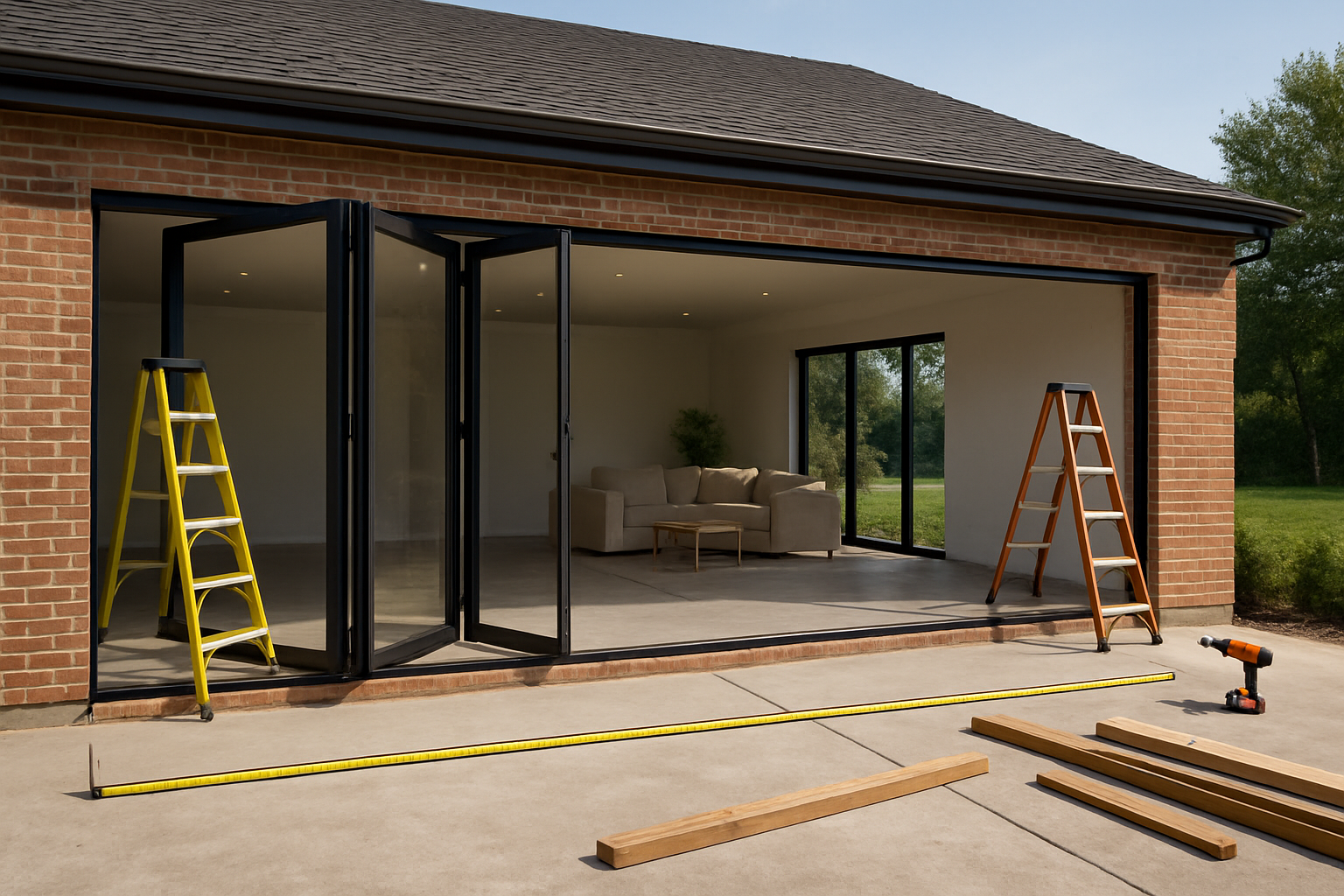

Understanding Wide Aperture Requirements for Bi-Fold Systems

Installing bi-fold doors across a 38-foot opening represents one of the most ambitious residential glazing projects homeowners can undertake. This expansive threshold demands meticulous planning, precise engineering calculations, and specialized installation techniques that transcend conventional door hanging methodologies. The sheer magnitude of such an installation requires understanding structural load distribution, thermal expansion coefficients, and seismic considerations that smaller configurations rarely encounter.

Wide aperture installations fundamentally alter the relationship between interior and exterior spaces. They create seamless transitions that can transform living environments, but they also introduce complex engineering challenges. The structural header must accommodate substantial dead loads while maintaining deflection tolerances within acceptable parameters. Understanding these requirements forms the foundation of successful wide bi-fold door installation projects.

Structural Load Calculations

A 38-foot opening necessitates comprehensive structural analysis beyond standard residential construction practices. The header system must support not only the door panels' static weight but also dynamic loads from wind pressure, seismic activity, and thermal cycling. Professional structural engineers typically specify laminated veneer lumber (LVL) beams, engineered steel headers, or composite structural members capable of spanning such distances without excessive deflection.

Load path analysis becomes crucial when determining how forces transfer from the header through supporting columns to the foundation system. Tributary areas for wind load calculations expand significantly with wider openings, potentially requiring upgraded anchorage systems and reinforced foundation elements.

Pre-Installation Planning and Site Assessment

Thorough site evaluation precedes any successful wide bi-fold door installation. Professional assessment encompasses structural adequacy, dimensional verification, and environmental considerations that directly impact long-term performance. The planning phase typically extends several weeks beyond standard door installation timelines due to the complexity involved.

Dimensional Verification and Tolerance Analysis

Achieving precise dimensional control across 38 feet requires specialized measuring techniques and equipment. Laser measurement systems provide accuracy levels necessary for custom manufacturing specifications. Even minor dimensional discrepancies can compound across the full width, potentially causing operational issues or weather sealing failures.

Construction tolerances that prove acceptable for standard openings become problematic at this scale. The accumulated tolerance stack-up across multiple building elements—foundation, framing, sheathing, and finish materials—must remain within manufacturer specifications to ensure proper door operation.

Gladiator's 38-Foot Wide Bi-Fold Solution

Gladiator Window and Doors addresses these complex installation challenges through their engineered 38-foot wide bi-fold panoramic door system. This Title 24 NFRC-approved solution incorporates precision manufacturing tolerances and comprehensive installation support that simplifies the complexity inherent in wide aperture projects. The system's modular design accommodates site-specific conditions while maintaining structural integrity across the full span.

Their factory-direct approach eliminates third-party markups while providing complete technical documentation, including structural calculations and installation specifications tailored to each project's unique requirements. The engineering team works directly with contractors to address site-specific challenges, ensuring successful installation outcomes.

Installation Methodology and Best Practices

Wide bi-fold door installation demands specialized techniques that differ substantially from conventional door hanging procedures. The installation sequence becomes critical, as improper sequencing can introduce stresses that compromise long-term performance or create irreversible alignment issues.

Header Installation and Alignment

Header installation represents the most critical phase of the entire project. Precise leveling across 38 feet requires sophisticated leveling equipment and techniques. Traditional bubble levels prove inadequate for this scale; optical levels or laser leveling systems become essential tools.

Shim placement strategy differs significantly from narrow opening installations. Distributed shimming at calculated intervals prevents point loading while maintaining level conditions. The shimming pattern must account for anticipated deflection under full door weight and operational loads.

Panel Sequencing and Alignment Procedures

Installing multiple bi-fold panels requires systematic sequencing to maintain alignment tolerances. Starting from a fixed reference point, each subsequent panel must align within specified tolerances while accommodating thermal expansion requirements. The cumulative effect of small misalignments becomes magnified across the full 38-foot width.

Track systems require precise installation to ensure smooth operation. Any deviation from specified tolerances can cause binding, excessive wear, or operational failures. Professional installation teams utilize specialized jigs and alignment tools designed specifically for wide bi-fold applications.

Weather Sealing and Performance Optimization

Achieving effective weather sealing across a 38-foot bi-fold system presents unique challenges that require sophisticated sealing strategies. Traditional weatherstripping approaches prove inadequate for the thermal expansion and structural movement inherent in wide systems.

Thermal Movement Accommodation

Aluminum and glass components undergo significant thermal expansion and contraction across 38-foot widths. Temperature differentials between interior and exterior surfaces create additional expansion stresses that must be accommodated within the sealing system design.

Expansion joints and flexible sealing materials become essential components rather than optional enhancements. The sealing system must maintain weather resistance while accommodating predictable movement patterns throughout seasonal temperature cycles.

Quality Control and Performance Validation

Post-installation validation ensures the wide bi-fold system meets performance specifications and operational requirements. This process extends beyond visual inspection to include quantitative performance measurements and long-term monitoring protocols.

Operational Testing Procedures

Comprehensive testing validates smooth operation across the full opening cycle. Force measurements ensure opening and closing efforts remain within acceptable ranges throughout the travel path. Any binding or excessive force requirements indicate alignment issues that require immediate correction.

Performance validation includes weather sealing effectiveness testing, typically conducted through pressure differential testing or thermal imaging analysis. These techniques identify potential leak paths that might not be apparent through visual inspection alone.

Common Installation Challenges and Solutions

Wide bi-fold installations encounter predictable challenges that experienced installation teams anticipate and address proactively. Understanding these challenges helps project teams prepare appropriate solutions and avoid costly delays.

• Structural deflection under door weight exceeding manufacturer tolerances
• Thermal expansion causing operational binding during temperature extremes
• Wind load effects creating excessive stress on hardware components
• Sealing system failures at panel interfaces during extreme weather events

Maintenance Requirements and Long-Term Performance

Wide bi-fold systems require specialized maintenance protocols to ensure continued reliable operation. The scale of these installations magnifies the consequences of neglected maintenance, making proactive care essential for long-term success.

Preventive Maintenance Scheduling

Regular maintenance schedules must account for the increased operational stresses inherent in wide bi-fold systems. Hardware components experience greater loads and require more frequent inspection and adjustment compared to smaller installations.

Professional maintenance teams familiar with wide bi-fold systems bring specialized knowledge and tools necessary for proper service. Their expertise proves invaluable for identifying potential issues before they develop into costly failures that could compromise the entire system's performance and longevity.
