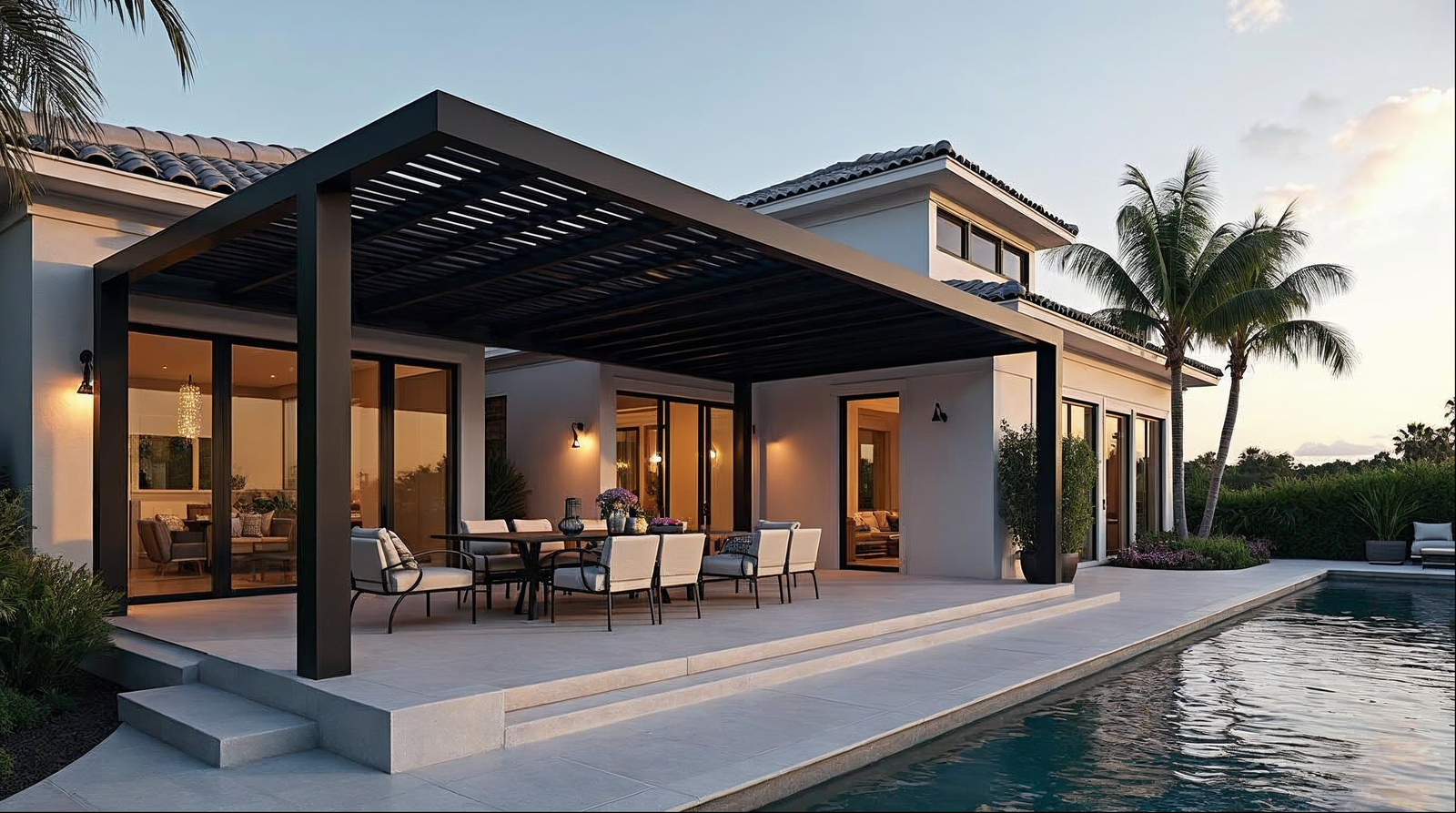

What Is a Modern Pergola Design?

A modern pergola design moves away from traditional wood lattice structures and toward clean-lined, engineered systems — most commonly aluminum — that deliver precise weather control, structural integrity, and architectural continuity with the home. Where a classic pergola filters light passively, a modern aluminum pergola actively manages sun, rain, and airflow through adjustable louvers, integrated drainage, and optional motorized automation.

The shift matters practically: Florida homeowners deal with UV intensity, hurricane-season wind loads, and year-round humidity that degrade wood and vinyl within a few years. Powder-coated aluminum resists all three, which is why it has become the structural material of choice for architects and builders specifying outdoor-living extensions in 2026.

What Is a Cantilever Pergola and How Does It Work?

A cantilever pergola is a structure that extends horizontally beyond its support columns — eliminating posts at the outer edge and creating an unobstructed open view beneath. Instead of four corner posts, a cantilever design uses two rear columns (or a wall-mount bracket system) and engineers the beam and rafter assembly to carry the load in tension and compression across the overhang.

From an engineering standpoint, the cantilever span is limited by the beam depth, connection detail, and the live loads the structure must resist. In Florida, that includes:

• Wind uplift: Coastal and high-velocity hurricane (HVHZ) zones require engineered connections rated for significant uplift forces.
• Dead load: Aluminum louvered roofs add considerably less weight than wood or polycarbonate alternatives, which extends achievable cantilever spans.
• Snow load: Not a Florida concern, but critical for clients in other states receiving Gladiator systems via our free nationwide shipping.

Typical freestanding cantilever aluminum pergolas can span 10–16 feet of clear overhang when properly engineered. Wall-attached cantilever configurations can push further because the home's framing shares the load. Always verify the specific span with engineering drawings stamped for your jurisdiction.

What Are the Key Structural Elements of a Modern Aluminum Pergola?

Modern aluminum pergola systems are assembled from a hierarchy of components, each with a defined structural role:

• Main beams (rafters): Extruded aluminum profiles — commonly 6000-series alloy — sized to span between columns without deflection. Hollow-chamber extrusions are stiffer per pound than solid profiles, enabling longer clear spans.
• Columns / posts: Square or rectangular aluminum posts, typically 4×4 in. to 6×6 in. profile, set on concealed base plates. Cantilever designs use heavy-duty bolted connections at both the post and the wall anchor.
• Adjustable louvers: Horizontal aluminum slats, usually 4–6 in. wide, that rotate from fully open (0°) to fully closed (90°). In the closed position they shed water into an internal drainage channel routed through the beams and columns — no external gutters required.
• Integrated drainage: Modern systems route water internally through hollow beam profiles and out through column bases, keeping the aesthetic completely clean.
• Motorization: Louvers are driven by a low-voltage tubular motor with a wall switch, remote, or smart-home integration. Wind and rain sensors can trigger automatic closure.
• Finish: Powder coating in a range of colors (matte black, RAL 7016 dark grey, RAL 9010 white, bronze anodized) provides a durable, UV-stable surface that won't peel, splinter, or require repainting.

How Does a Louvered Aluminum Pergola Differ from a Fixed-Roof Patio Cover?

A louvered aluminum pergola offers dynamic weather control that a fixed-roof patio cover cannot: the louvers open to flood the space with natural light and breeze, then close to block direct sun or shed rain — all without leaving the covered area. A solid fixed roof, by contrast, creates a permanently shaded and rain-proof space, but it also blocks natural light, requires a separate drainage system, and often triggers more stringent building permits because it functions as a permanent structure addition.

For most homeowners extending a Jacksonville or coastal Florida outdoor living space, a louvered pergola hits the sweet spot: it reads architecturally as a pergola (lighter permit pathway in many municipalities), performs like a patio cover when closed, and disappears visually when open. Paired with a large-format sliding glass door or a folding bi-fold door system, the result is a seamless indoor-outdoor room that functions in nearly all weather conditions.

What Design Styles Pair Well with a Modern Aluminum Pergola?

Aluminum's precision profiles and clean powder-coated finish make it adaptable across contemporary architectural styles:

• Coastal contemporary: White RAL 9010 or bronze anodized finish, wide louver spacing, integration with hurricane-rated sliding glass doors. Works especially well on waterfront homes in Northeast Florida and the Gulf Coast.
• Urban modern / flat-roof homes: Matte black or dark grey RAL 7016 finish creates a strong graphic line that reads as a continuation of the roofline. Cantilever configurations emphasize the floating quality.
• Transitional / craftsman: Bronze anodized finish bridges traditional and modern. Wall-attached pergolas with decorative column caps and symmetrical louver spacing soften the industrial feel.
• Commercial and hospitality: Restaurants, hotels, and retail environments benefit from the same motorized louver technology at larger scales — multi-bay configurations with integrated LED lighting and heaters create year-round outdoor revenue space.

What Does a Modern Aluminum Pergola Cost — and Why Does Factory-Direct Matter?

Aluminum pergola pricing is driven by four variables: footprint size, cantilever engineering requirements, motorization package, and finish. A straightforward 12×16 ft wall-attached louvered pergola in a standard finish will occupy a very different price tier than a freestanding 20×20 ft cantilever structure with motorized louvers, integrated LED lighting, and a wind-sensor package.

What meaningfully compresses that cost is the factory-direct supply chain. Dealer-network brands layer in distributor and installer margins that can add 30–50% to the system cost before a single post is set. Because Gladiator Window & Doors manufactures aluminum systems in Jacksonville and ships factory-direct — with free nationwide shipping — the margin savings are passed to the customer, not absorbed by a distribution chain. The same structural aluminum, the same powder-coat quality, without the middleman markup.

All Gladiator aluminum systems carry a 15-year warranty, reflecting confidence in both materials and fabrication. That warranty is backstopped by the manufacturer, not a third-party dealer who may or may not be in business at claim time.

Builders and architects working across multiple projects can also explore our reseller and wholesale program for volume pricing and project support.

What Should I Know About Florida Permits for a Pergola?

In Florida, any freestanding or attached structure that provides weather protection typically requires a building permit, and the requirements vary by county. Key considerations for a modern aluminum pergola in 2026 include:

• Wind speed design: Florida's Building Code mandates structures be engineered for local ultimate design wind speed (Vult). Jacksonville (Duval County) is generally in the 130–140 mph range; coastal and HVHZ zones are higher. Aluminum pergola systems should come with engineering documentation that references the correct wind speed map.
• Attachment method: Wall-attached pergolas require the home's framing to be assessed for adequate lateral load transfer. Freestanding cantilever systems need engineered footing design.
• HOA review: Many Northeast Florida communities require HOA approval before permit submittal. Matte black and dark grey finishes are increasingly accepted; verify your community's color palette requirements.
• Setbacks: A pergola typically must observe the same rear and side setbacks as any accessory structure. Cantilever overhangs may be treated differently by some jurisdictions — confirm with your local building department.

How Do I Integrate a Pergola with My Doors and Windows?

The strongest modern outdoor-living designs treat the pergola as an extension of the interior floor plan, not an accessory tacked onto the back of the house. That integration happens at the opening. A wide bi-fold door system stacked fully to one side creates a seamless threshold between the interior and the covered pergola space. A multi-panel sliding glass door achieves the same effect with a lower sill profile and a pocket option for zero visual interruption.

For outdoor kitchens and bar areas, a folding passthrough window between the interior kitchen and the pergola-covered outdoor kitchen keeps the cook connected to guests without carrying plates through a full door. Matching the aluminum finish across your pergola, doors, and windows creates the architectural continuity that characterizes genuinely well-designed modern homes.

Ready to design your modern aluminum pergola? Explore Gladiator's aluminum pergola systems and request a custom quote — our team works directly with homeowners, builders, and architects from concept through delivery.
