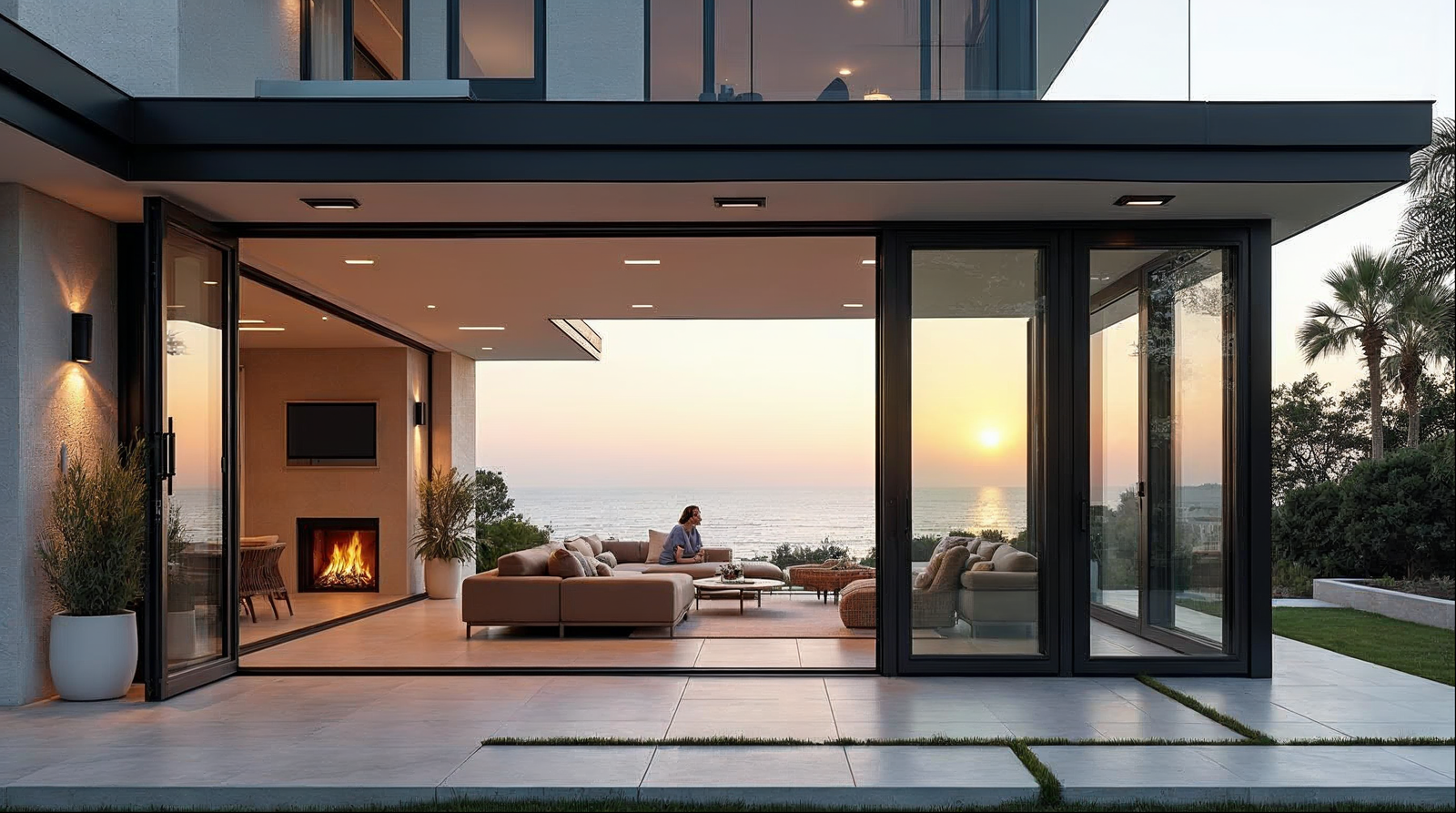

What exactly is a bi-fold door system — and how does it work?

A bi-fold door (also called a folding or accordion door) is a multi-panel system where each panel folds against the next on hinges, then the entire folded stack glides along a top-hung or bottom-rolling track to one or both sides of the opening. The result is a near-full-width opening that collapses flat against a wall, connecting two spaces with no visual obstruction. Panel counts typically run from 2 to 10 or more, making bi-fold systems the most flexible solution for wide openings — patios, great rooms, indoor bars, and pool decks.

How wide can a bi-fold door opening realistically span?

A well-engineered aluminum bi-fold system can span 8 ft to well over 40 ft in a single run, depending on the number of panels and the structural support in place. Each panel in Gladiator's aluminum bi-fold door line is custom-manufactured to your exact rough-opening dimensions, so you are not constrained by stock sizes. Typical residential projects fall in the 12–24 ft range (4–8 panels), while commercial and hospitality projects routinely exceed 32 ft. The key structural rule: every panel adds load to the header, so spans above 20 ft generally require an engineered beam or a structural consultation before ordering.

• 4-panel / ~16 ft: Most popular for suburban patios and master-suite transitions.
• 6-panel / ~24 ft: Great-room-to-pool-deck standard in coastal Florida builds.
• 8-panel / ~32 ft: Hospitality, indoor-outdoor bars, resort-style custom homes.
• 10+ panels: Commercial applications; split-stack (panels fold to both sides) recommended.

What glass options should I specify for a Florida bi-fold door?

In Florida, your glass specification is simultaneously a performance decision, a code requirement, and an insurance factor. Gladiator bi-fold doors ship with 6mm impact-rated glass as the standard unit — thicker than the 4mm default common in imported thin-frame systems. Here is how the key options stack up:

Glass Type	Best For	Notes
6mm Tempered Impact (standard)	All Florida coastal and inland zones	Meets Florida Building Code impact requirements; qualifies for most insurer discounts
Dual-Pane Low-E IGU	A/C-heavy homes, western or southern exposures	Significantly reduces solar heat gain (SHGC) and UV transmission; improves NFRC U-factor
Laminated Impact IGU	High-velocity hurricane zones (Miami-Dade, Broward)	Laminated interlayer + insulating air gap; top-tier protection and thermal performance combined
Tinted or Fritted Glass	Privacy, glare control, design accent	Available in bronze, grey, and custom fritted patterns

For most Jacksonville and North Florida projects, a dual-pane Low-E IGU with impact lamination hits the sweet spot of code compliance, energy savings, and long-term ownership cost.

How does aluminum bi-fold door thermal performance compare to wood-clad systems?

Thermal-break aluminum outperforms non-broken aluminum significantly and competes directly with wood-clad folding systems when the full door assembly is measured. The critical number is the whole-door NFRC U-factor — not just the center-of-glass value that many spec sheets highlight. Gladiator's thermally broken aluminum profiles isolate the interior and exterior faces of the frame with a polyamide barrier, cutting conductive heat transfer through the frame dramatically. When paired with a Low-E dual-pane IGU, the resulting whole-door U-factor is typically in the 0.28–0.34 range, which meets or beats ENERGY STAR requirements for the Southern climate zone.

Wood-clad folding systems can achieve similar U-factors, but they introduce long-term maintenance obligations — repainting, swelling, rot risk — that are particularly acute in Florida's humidity. Aluminum requires no repainting, does not swell or warp, and carries a 15-year finish warranty from Gladiator's factory.

What does bi-fold door hardware actually affect — and what should I look for?

Hardware is where the long-term ownership experience is made or broken. The three systems to evaluate are the track, the hinges, and the locking mechanism.

Track system

Top-hung track carries the panel weight from above, leaving the floor track minimal (typically a low-profile threshold under 20mm). This matters in Florida because a flush or near-flush threshold is ADA-friendly, reduces trip hazard, and drains water away from the interior during rain events. Bottom-rolling systems are less expensive but create a deeper floor channel that traps debris and creates a trip hazard.

Hinges and panel weight

Heavy-duty stainless or marine-grade aluminum hinges are non-negotiable on the Florida coast. Salt air degrades cheaper zinc-alloy hinges within two to three seasons. Gladiator panels carry stainless hardware as standard — you are not paying an upgrade fee for coastal-grade components.

Multi-point locking

A single-point lock on a bi-fold door is a security compromise. Multi-point locking engages the frame at multiple vertical positions simultaneously, dramatically improving both forced-entry resistance and the door's ability to maintain a weather-tight seal under wind pressure — critical for Florida's hurricane season.

How does factory-direct purchasing change the price and lead time?

Most homeowners and builders are accustomed to buying doors through a dealer or distributor network, where two to three markup layers sit between the manufacturer and the job site. Gladiator operates differently: we manufacture in our own Jacksonville, Florida facility and ship direct to your project, anywhere in the country, with free nationwide shipping included. The practical impact is significant — a comparable aluminum bi-fold system purchased through a dealer network typically carries a 30–50% channel markup over what you pay factory-direct.

Lead times are also faster when there is no distribution middleman to route through. Custom orders move from confirmed specification to ship-ready in the factory's current production queue, and you communicate directly with manufacturing — not a sales rep two phone calls away from anyone who can answer a technical question.

Builders, architects, and developers working on multiple projects can apply for Gladiator's reseller and wholesale program for additional trade pricing and priority scheduling.

What other Gladiator systems pair well with bi-fold doors?

A bi-fold door rarely lives alone in a well-designed home. The most common pairings our Jacksonville design team sees:

• Folding pass-through windows: A folding passthrough window at the kitchen or bar counter extends the indoor-outdoor flow established by a bi-fold door wall, creating a continuous entertaining zone from interior to lanai.
• Multi-slide pocket doors: Sliding glass doors work well for secondary openings — guest suites, office transitions — where you want the same aluminum finish family but a lower-profile system.
• Statement pivot entry: A pivot door at the front entry in the same matte black or dark grey finish creates a cohesive architectural language that reads as intentional from the street through the home.
• Aluminum pergola: An aluminum pergola over the adjoining patio extends livable square footage and completes the indoor-outdoor transition that your bi-fold door wall initiates.

Ready to specify your bi-fold door?

Gladiator's team works directly with homeowners, architects, and builders to confirm rough-opening dimensions, glass specifications, finish selection, and structural requirements — before any order is placed. Browse the full bi-fold door collection and request a custom quote. No dealer, no markup, no runaround — just factory-direct answers from the people who build your door.
