By the Gladiator Window & Doors Technical Team — factory-direct aluminum door specialists serving contractors, developers, and commercial designers nationwide.

For restaurant and bar servery openings, bi-folding aluminum door systems and folding pass-through windows are the most effective solution. They maximize the usable opening width, stack compactly out of the flow of service, and — when built from thermal-break aluminum with 6mm glass — hold up to the grease, humidity, and heavy daily cycling that hospitality environments demand. The sections below walk through every decision a contractor or owner-builder needs to make before cutting the rough opening.

What door system works best for a restaurant or bar servery opening?

Bi-fold doors and folding pass-through windows are the go-to systems for servery applications because they open a structural bay fully — no center post, no swing arc intruding on server paths, no partially blocked view. A Gladiator bi-fold door can clear a 6- to 10-panel run in seconds, converting a closed dining room wall into a completely open indoor-outdoor terrace. A Gladiator folding pass-through window handles the counter-height bar-to-patio connection — the classic "stadium window" detail that lets bartenders serve directly to outdoor guests without leaving the station.

Sliding multi-panel systems are a solid secondary option for wider bays (30 ft+) where the panel count would make folding impractical, but they always leave a portion of the opening occupied by the stacked panels. Pivot doors suit a dramatic front-of-house entrance, not a working servery. The right answer for most bar and restaurant servery cutouts is a folding system, sized and configured to the exact rough opening.

What features matter most for folding doors in a restaurant or bar?

Durability, cleanability, thermal performance, and ADA/code compliance are the four non-negotiable performance pillars for commercial hospitality folding doors. Here is what each means in practice:

• Aluminum extrusion quality: Restaurant environments are high-humidity and high-grease. Thermally broken aluminum with an anodized or powder-coat finish resists corrosion and wipes clean without degrading the frame. Wood-clad systems absorb moisture, swell, and require frequent refinishing — not practical in a commercial kitchen adjacency.
• Glass thickness: Gladiator specifies 6mm glass as standard. Thicker glass dampens ambient noise between dining zones, resists incidental impact from service carts, and improves thermal and acoustic performance vs. standard 4mm lites common in residential-grade systems.
• Low-profile track: A flush or low-profile sill track is critical in any space where servers move quickly with trays. Gladiator's low-profile bottom track minimizes the trip hazard and meets ADA threshold height requirements for commercial occupancies. Confirm your local AHJ's interpretation for the specific use case.
• Thermal-break construction: Florida's energy code (and many state commercial energy codes) requires a demonstrated U-factor on the whole door unit, not just the glass. Gladiator systems carry a whole-door NFRC U-factor rating, which satisfies plan-review requirements in most jurisdictions without costly add-ons.
• Panel configuration flexibility: Most restaurant servery bays run 12–32 ft wide. Gladiator bi-fold panels can be configured from 2-panel up to 10-panel (or beyond for custom commercial runs), with individual panel widths up to ~3 ft, letting you fill almost any structural bay precisely.
• Hardware rated for commercial cycling: Residential-grade hardware is not rated for the thousands of open/close cycles a busy bar or restaurant accumulates in a single season. Specify commercial-grade concealed hinges and top-hung or bottom-rolling carriers rated for heavy daily use.

Bi-fold doors vs. sliding doors vs. folding pass-through windows: which fits a servery?

Each system has a distinct use case in the restaurant and bar environment. The table below breaks down the key decision points contractors and designers use to specify the right product for each opening type.

Feature	Gladiator Bi-Fold Doors	Gladiator Sliding Doors	Gladiator Folding Pass-Through Window
Best use case	Indoor-outdoor wall removal, dining room to terrace, full-bay openings	Wide bays (30 ft+), lower panel-count preference, patio transitions	Bar counter to outdoor seating, kitchen pass, servery window
Clear opening width	Up to ~95% of rough opening (panels stack to one or both sides)	~50% of rough opening per stack side	Up to ~95% of rough opening (folds up or to one side)
Opening height	Full height (floor-to-ceiling) — 8 ft to 12 ft+ custom	Full height — standard up to 10 ft, custom taller	Counter-height cutout — typically 36–42 in. sill height
Track profile	Low-profile sill, top-hung option available	Low-profile flush track	Counter-mount frame, no floor track
Panel count range	2–10+ panels	2–8 panels (multi-slide)	2–6 panels (window scale)
Glass standard	6mm (Gladiator standard)	6mm (Gladiator standard)	6mm (Gladiator standard)
Frame material	Thermal-break aluminum	Thermal-break aluminum	Thermal-break aluminum
Typical commercial lead time	4–8 weeks factory-direct	4–8 weeks factory-direct	3–6 weeks factory-direct
Shipping	Free nationwide (Gladiator)	Free nationwide (Gladiator)	Free nationwide (Gladiator)
Traditional top-hung wood-clad folding systems	Heavier frame, moisture-sensitive finish, higher maintenance — common in residential remodels, less suitable for commercial hospitality cycling

Bottom line: Specify bi-fold doors for any full-height wall opening that transitions a dining room or bar to an outdoor terrace. Use a folding pass-through window for any counter-height servery cut-out — bar to patio, kitchen to garden, pizza counter to sidewalk dining. Use sliding glass doors when the bay is exceptionally wide and full-open access is not required.

What does a commercial folding door system cost for a restaurant or bar?

Commercial-grade aluminum bi-fold door systems for restaurant and bar servery applications typically range from $800 to $1,800 per linear foot of opening, depending on panel count, glass specification (tempered, laminated, or impact-rated), finish, and hardware tier. Factory-direct sourcing from Gladiator eliminates the dealer and distributor markups that commonly add 20–40% to project costs on dealer-network brands.

Key cost drivers contractors should account for in the bid:

• Glass specification: Standard tempered 6mm is the base. Laminated glass (for sound attenuation between dining zones or to meet local wind-load codes) adds cost. Impact-rated laminated glass (required in Florida High-Velocity Hurricane Zones and many coastal jurisdictions) is a further step up but eliminates the need for storm shutters.
• Panel count and total width: A 6-panel, 18 ft bi-fold run costs less per project than a 10-panel, 30 ft run, but the per-linear-foot cost is similar. Wider panels may require heavier carriers.
• Finish: Standard powder-coat finishes (matte black, white RAL 9010, dark grey RAL 7016, bronze anodized) are included. Custom RAL colors carry a surcharge on commercial volumes.
• Stack direction: Single-stack (all panels fold to one side) is simpler to frame and slightly less expensive than double-stack. Double-stack halves the panel depth on each side and may be necessary in tight service corridors.
• Threshold and floor prep: Low-profile commercial thresholds add minimal material cost but require precise slab-to-frame coordination. Budget for a concrete saw cut and epoxy fill if retrofitting into an existing slab.

Gladiator's factory-direct model means contractors and resellers receive wholesale trade pricing with no upcharges, and free nationwide shipping is included on all orders. For projects with multiple openings — a full restaurant renovation with a bar pass-through, two dining-room folding walls, and a patio pivot entry — the savings on shipping and margin alone justify setting up a reseller account before the first RFQ goes out.

Are there code and safety requirements for folding doors in commercial hospitality spaces?

Yes — and they are meaningful enough to affect product selection before the rough opening is framed. Contractors specifying folding doors for restaurants and bars should verify the following with the AHJ (Authority Having Jurisdiction) at permit submission:

• Egress compliance: IBC Section 1010 governs egress doors. In most commercial occupancies, at least one leaf of a folding door system must be operable as a single door for egress without requiring knowledge of special mechanisms. Gladiator bi-fold systems accommodate a dedicated egress leaf within the panel run.
• ADA threshold height: ADA Standards §404.2.5 limits changes in level at accessible doors to ½ in. maximum (¼ in. vertical, ¼ in. beveled). Low-profile sill tracks are essential; confirm exact height with the project's accessibility consultant.
• Wind load / impact rating: Florida's FBC and coastal jurisdictions in many other states require impact-rated glazing or approved shutters in Windborne Debris Regions. Gladiator can supply impact-rated laminated glass configurations — specify at order time, not post-fabrication.
• Fire-rated openings: Standard aluminum bi-fold systems are not fire-rated. If the opening occurs in a rated assembly (e.g., between a commercial kitchen and dining area), consult a fire protection engineer before specifying a glazed folding system.
• Health department / food service: Pass-through servery windows that open between a kitchen and outdoor dining may be subject to vector-control requirements (screens) under local health codes. Factor screened panel options into the specification.

What do real restaurant and bar folding door installations look like?

The most common commercial hospitality configurations Gladiator supplies to contractors and developers in 2026 include:

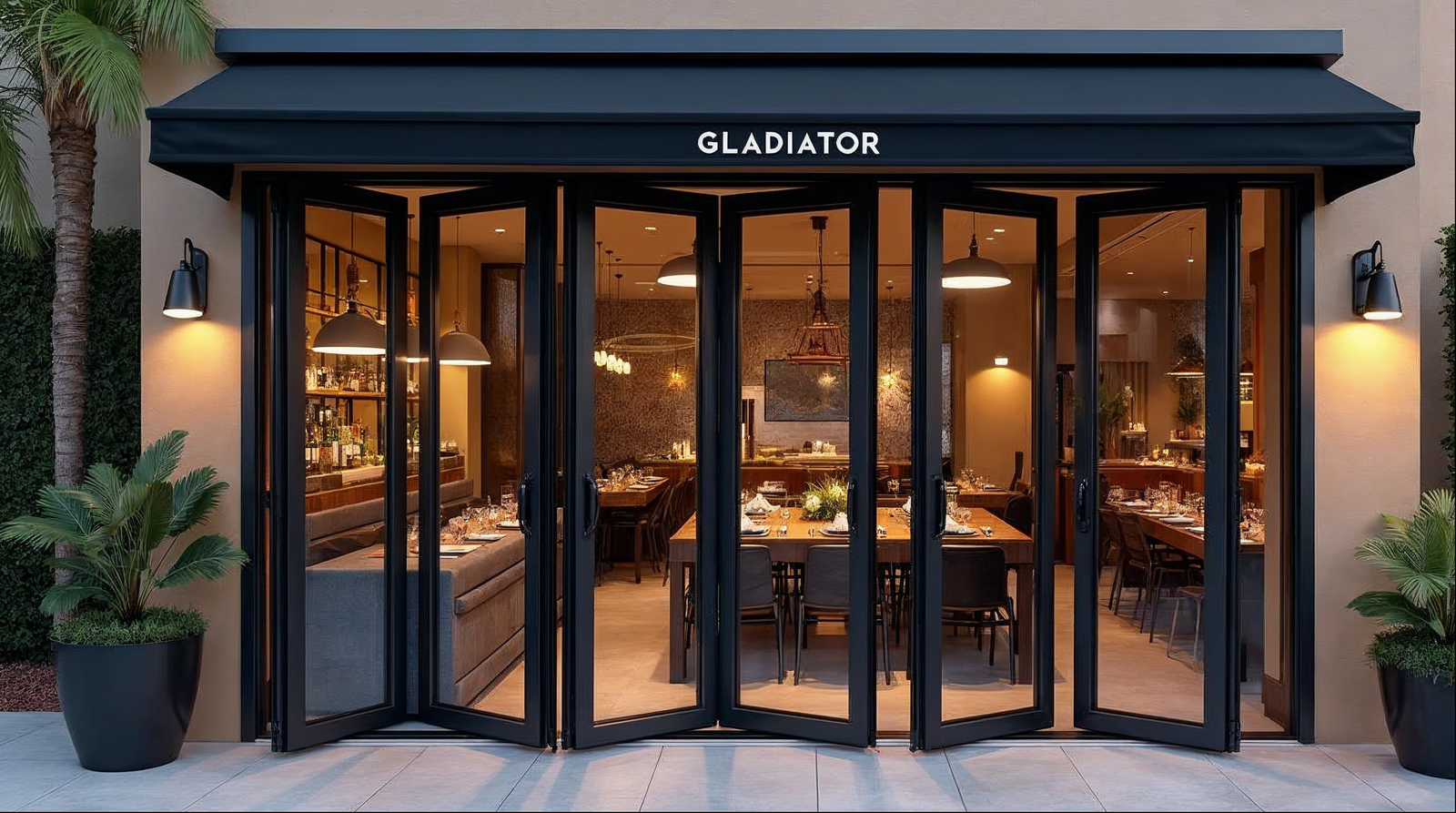

• Full dining-room folding wall: A 6- to 8-panel bi-fold system spanning a 20–28 ft bay between a climate-controlled dining room and a covered outdoor terrace. Panels fold to a single stack at one end during service, reopening to a clear walkway between indoor and outdoor seating. Matte black aluminum frames with floor-to-ceiling 6mm tempered glass give the clean, upscale look that matches contemporary hospitality design.
• Bar pass-through servery window: A 3- to 4-panel folding pass-through window, sill height at 36–42 in., opening from the bar to a sidewalk or patio. Folds up like a traditional stadium window or folds to one side depending on the structural bay. Bartenders serve outdoor guests directly without a separate service door.
• Rooftop bar accordion wall: An 8- to 10-panel bi-fold system on a rooftop level, where wind-load requirements are elevated. Impact-rated laminated glass specified throughout; double-stack configuration keeps panels from protruding into the bar service area on either side.
• Brewery taproom indoor-outdoor: A paired bi-fold installation — one 6-panel wall to a beer garden, one 4-panel wall to a side patio — both with matte black frames and low-profile sill tracks flush to a stained concrete floor. A single Gladiator reseller account covered both openings at trade pricing with coordinated lead times.

For commercial projects with multiple openings or recurring hospitality clients, contractors can apply for a Gladiator Reseller & Wholesale Account to access trade pricing across the full product line — bi-fold doors, sliding doors, pass-through windows, and pivot entries — under a single account.
