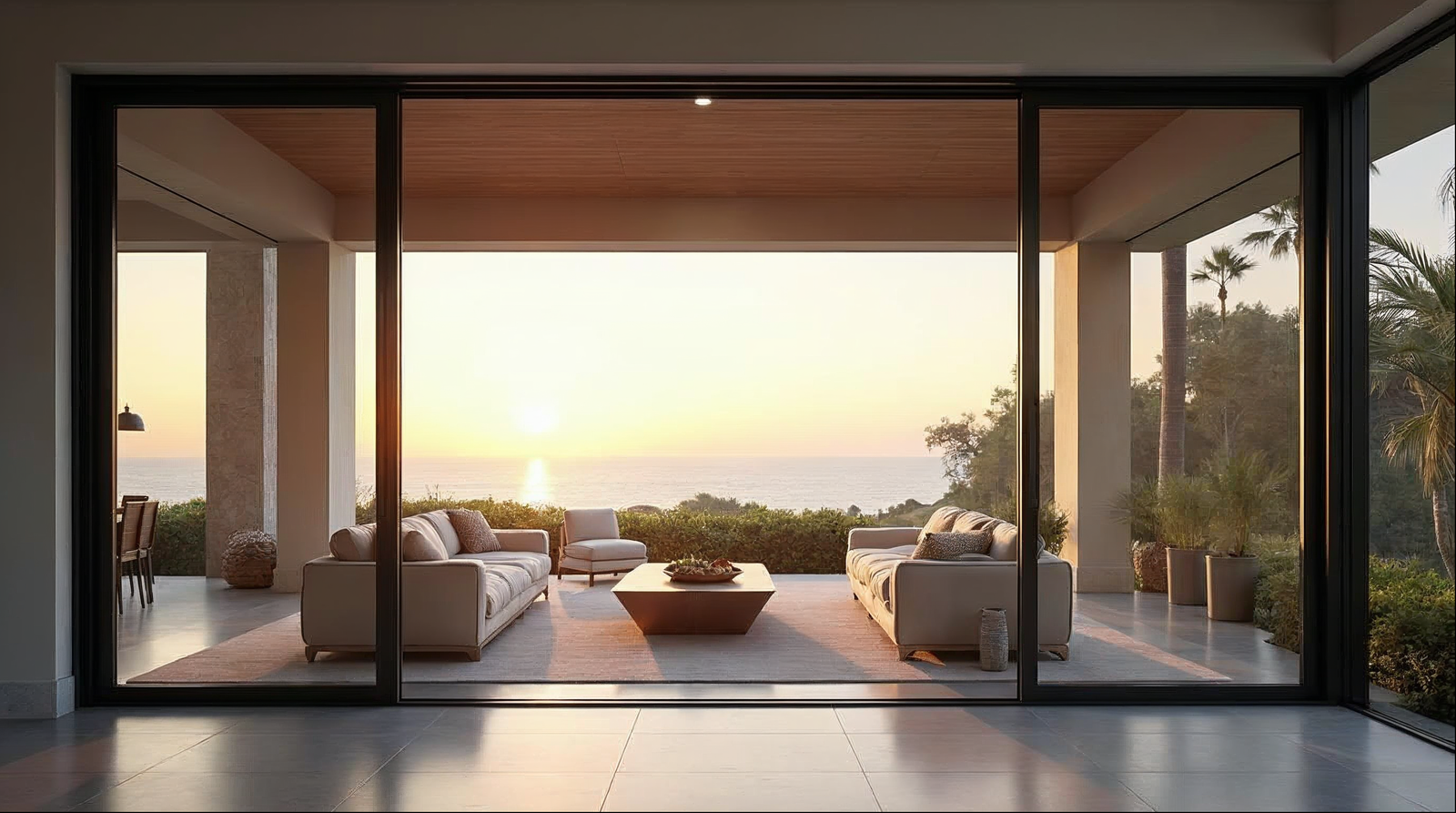

How wide can a sliding glass door actually get?
A premium aluminum multi-slide system can span well over 40 feet when multiple panels are combined, making it one of the widest door configurations available for residential and light commercial construction. Gladiator's sliding glass door systems accommodate individual panel widths up to approximately 5 feet per leaf and can stack multiple panels — 2, 3, 4, 6, or more — to achieve total opening widths that a single-panel slider could never reach. The practical limit is typically set by structural header capacity and the slab/track engineering, not by the door system itself.
What determines the maximum width of a sliding glass door system?
Four factors govern how wide a multi-slide system can run: panel count, individual panel width, track configuration, and the structural opening the building can support.
- Panel count: Most aluminum multi-slide systems are available in 2-, 3-, 4-, 6-, and 8-panel configurations. Each added panel extends total width proportionally.
- Individual panel width: Each leaf in a premium aluminum system typically maxes out around 48–60 inches (4–5 ft). Going wider per panel increases glass weight and can compromise smooth operation over time.
- Track layout — stacking vs. pocket: In a stacking configuration, panels slide to one or both sides, so your usable opening equals total width minus the panel stack depth. Pocket sliders fully conceal the panels into the wall, delivering a full clear opening equal to the rough opening width.
- Structural header and sill: A wide aluminum door puts significant point loads on the header. For spans beyond 20 ft, builders typically engineer a steel or LVL beam. The low-profile flush-mount sill track on Gladiator systems minimizes threshold height without compromising structural transfer.
What's the widest single sliding door panel available?
A single sliding panel in a quality aluminum system typically reaches a maximum of about 48–60 inches wide and up to 120 inches tall, after which glass weight and frame deflection become limiting factors. Gladiator uses 6mm tempered or laminated glass as standard — heavier than the 4–5mm glass common in builder-grade systems — which means each panel is more substantial and more impact-resistant, but also means the hardware and track must be engineered accordingly. Our stainless-steel roller assemblies and multi-point locking hardware are sized for that load from the factory.
How do multi-panel configurations scale total door width?
Total rough-opening width scales directly with panel count and individual panel width. The table below shows representative configurations using Gladiator's aluminum multi-slide system with nominal 48-inch panels:
| Panel Count | Approx. Total Width | Stack Configuration | Max Clear Opening (stack one side) | Best Application |
|---|---|---|---|---|
| 2-panel | ~8 ft | Single stack | ~4 ft | Secondary bedroom, apartment patio |
| 3-panel | ~12 ft | Single or split stack | ~8 ft | Standard great room, condo |
| 4-panel | ~16 ft | Split stack (2+2) | ~16 ft (fully open) | Luxury residential great room |
| 6-panel | ~24 ft | Split stack (3+3) | ~24 ft (fully open) | Open-plan indoor/outdoor living |
| 8-panel | ~32 ft | Split stack (4+4) | ~32 ft (fully open) | High-end residential, hospitality |
| 10-panel+ | 40 ft+ | Split or pocket | 40 ft+ (fully open) | Commercial, resort, large custom home |
Panel widths can be adjusted from 36 to 60 inches per leaf depending on the project, so total widths are fully customizable. Contact our trade team to specify exact rough openings.
How does a wide sliding door compare to other wide-opening systems?
For extremely wide openings, builders often weigh multi-slide doors against bi-fold (accordion) systems. Here's how they differ on the specs that matter most to contractors and developers:
| Spec / Factor | Gladiator Multi-Slide | Traditional Top-Hung Folding Systems | Legacy Lift-and-Slide Systems |
|---|---|---|---|
| Max practical span | 40 ft+ (10+ panels) | Typically limited by panel hinge count | Typically 20–24 ft before hardware complexity increases |
| Glass thickness (standard) | 6mm tempered/laminated | Often 4–5mm; 6mm as upgrade | Often 4–5mm standard |
| Sill profile | Low-profile flush track | Raised threshold common | Raised threshold common |
| Clear opening (fully open) | Up to 100% with pocket config | ~90–95% of rough opening | ~50% of rough opening (panels stack) |
| Thermal performance | Thermal-break aluminum frame, whole-door NFRC U-factor rated | Varies; thermal break not always standard | Varies by system generation |
| Impact/hurricane rating | Available; Florida code compliant | Varies; not always impact-rated | Varies; not always impact-rated |
| Lead time | Factory-direct, typically 6–10 weeks custom | Dealer-network lead times vary widely | Dealer-network lead times vary widely |
| Shipping | Free nationwide | Freight typically billed separately | Freight typically billed separately |
| Warranty | 15 years | Varies by brand | Varies by brand |
For the widest possible clear opening without a center post, a Gladiator multi-slide pocket door is the most architecturally clean solution. If the opening is under 24 ft and you want a fully folded-away wall, aluminum bi-fold doors deliver a comparable indoor-outdoor effect with a different aesthetic.
Are wide sliding doors hurricane and impact rated?
Yes — Gladiator's aluminum multi-slide systems are available with impact-rated laminated glass to meet Florida Building Code requirements, including high-velocity hurricane zone (HVHZ) standards where applicable. The thermal-break aluminum frame is engineered to resist both positive and negative wind pressure loads across wide spans. For any project in a Florida coastal or HVHZ zone, specify laminated impact glass at the time of order; our team will confirm the appropriate glass makeup and frame reinforcement for your rough opening size and local code jurisdiction.
What are the key installation considerations for very wide sliding doors?
Wide multi-slide systems require careful pre-construction coordination. The most common field issues we see on large-span sliders are preventable with upfront planning:
- Header engineering: Any opening beyond approximately 16–18 ft needs a structural engineer to specify the beam. A sagging header will bind panels and void hardware warranties.
- Sill flatness: The track must be set perfectly level and on a flat substrate. Even a 1/8-inch deviation across 32 ft will cause operational issues. Gladiator's low-profile track system includes shimming guidance in our install documentation.
- Rough opening tolerances: Order to confirmed RO dimensions — not framing drawings. Field-verify width, height, and squareness before submitting your order.
- Panel delivery sequencing: On 6-panel-plus systems, panels are typically shipped in sequence. Coordinate staging space on site; panels are heavy and should not be stood unbraced.
- Thermal expansion: Aluminum expands and contracts. In Florida's climate, leave the manufacturer-specified clearances at frame perimeters. Gladiator's factory team provides project-specific clearance specs on request.
For projects also incorporating folding passthrough windows at a bar or kitchen counter adjacent to the wide slider, coordinate rough opening heights together at the design stage to keep sill and head heights consistent across the elevation.
What does a wide sliding door cost at the wholesale/trade level?
Pricing for multi-slide systems scales with panel count, glass specification, and finish. Because Gladiator ships factory-direct with no dealer markup, trade accounts consistently see lower landed cost than dealer-network alternatives — with 6mm glass and thermal-break frames already included at base price, not as upgrades. Free nationwide shipping eliminates the freight line item that commonly inflates competitor quotes. Exact trade pricing is available through our Reseller & Wholesale Application — approved accounts receive a full price schedule and project quoting support.
