What Is the Average Cost of an Aluminum Sliding Glass Door for an 8- to 16-Foot Opening?

For an 8- to 16-foot opening, aluminum sliding glass door prices in 2026 typically range from $3,500 to $14,000 for the door unit alone, before installation. Where your project lands within that range depends on opening width, panel count, glass specification, frame finish, and whether you buy factory-direct or through a dealer network. At Gladiator Window & Doors, our factory-direct sliding glass doors start well below the dealer-inflated ceiling because there is no distributor margin layered on top of the product cost.

Here is a realistic ballpark by opening size for a standard thermal-break aluminum multi-slide system with dual-pane low-e glass:

Opening Width	Typical Panel Count	Factory-Direct Price Range
8 ft	2-panel	$3,500 – $5,500
10–12 ft	2- or 3-panel	$5,000 – $8,000
14–16 ft	3- or 4-panel	$7,500 – $14,000

These figures reflect door-unit cost only. Installation, rough-opening prep, and any structural header work are separate line items discussed below.

How Does the Price of Aluminum Sliding Doors Change With Panel Count and Glass Type?

Every additional panel and every glass upgrade adds a predictable, substantive cost — so understanding these two variables puts you firmly in control of your budget.

Panel Count

More panels mean more aluminum extrusion, more hardware, and more glass. A three-panel system costs roughly 30–40% more than a comparable two-panel unit at the same overall width, because the third panel requires an additional set of rollers, a stile, and a locking point. A four-panel system adds another similar step up.

Glass Specification

Glass is often the largest single cost driver after frame size. Common options and their relative cost impact:

• Dual-pane low-e (standard): Included in base pricing. Meets or exceeds most residential energy codes, including California Title 24.
• Triple-pane: Adds approximately $200–$600 per panel depending on size. Lowers U-factor meaningfully — worthwhile in cold northern climates.
• Tinted or reflective glass: Adds $100–$300 per panel. Reduces solar heat gain coefficient (SHGC) for sun-facing exposures in warm climates.
• Laminated glass: Adds $150–$400 per panel. Provides safety glazing and sound attenuation in urban or high-traffic settings.

Gladiator includes 6mm standard glass across our systems — thicker than the 4mm used in many imported thin-frame aluminum systems — which contributes directly to better acoustics and structural rigidity without a mandatory upgrade charge.

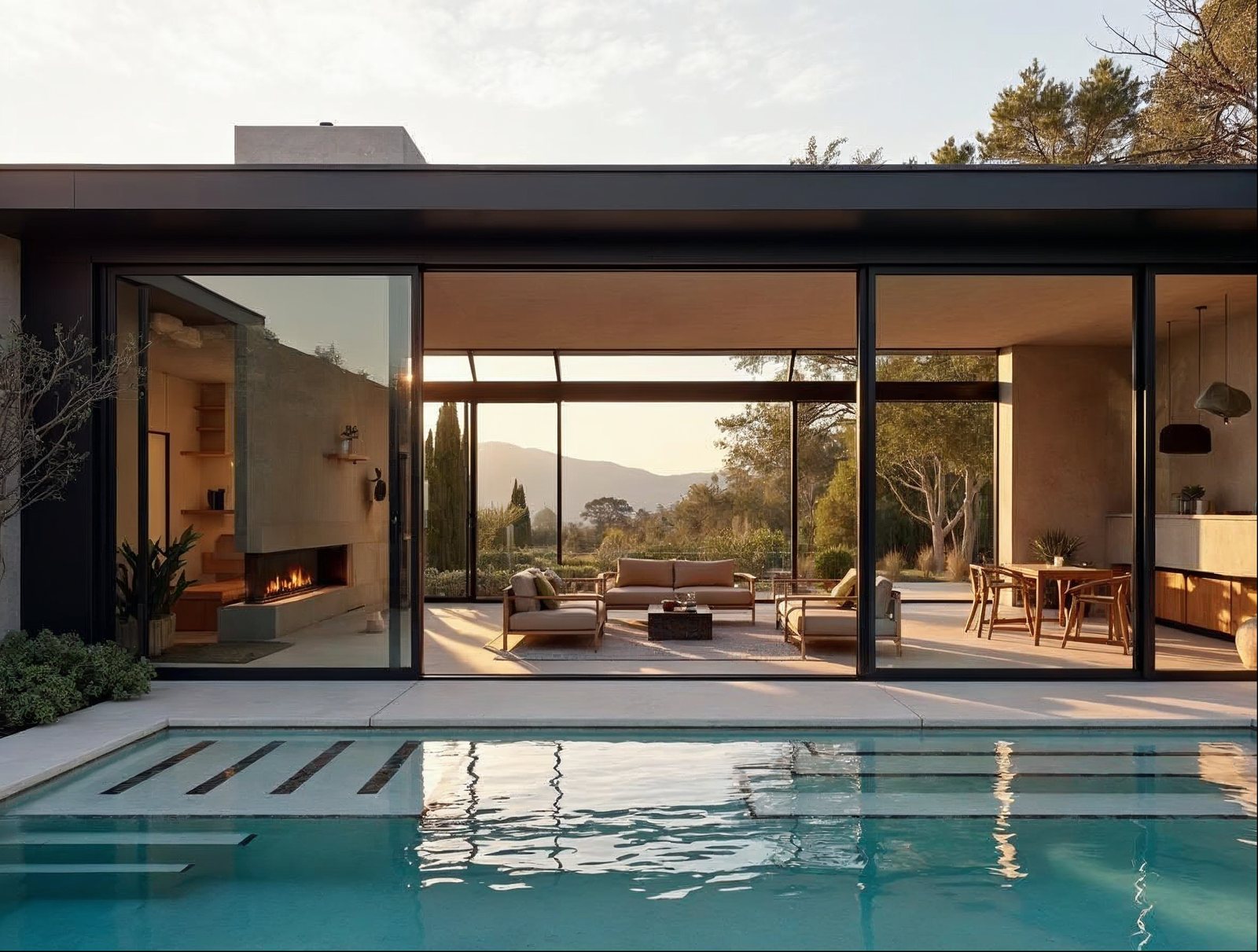

What Is the Cost Difference Between a Two-Panel and a Four-Panel Aluminum Multi-Slide Door?

Across comparable widths, a four-panel aluminum multi-slide door typically costs 40–70% more than a two-panel unit, and the gap widens with premium glass packages. Here is a side-by-side illustration using a 12-foot opening as a common baseline:

Configuration	Opening	Panels	Approx. Unit Price (factory-direct)
Two-panel slider	12 ft wide × 8 ft tall	2	$5,800 – $7,500
Three-panel multi-slide	12 ft wide × 8 ft tall	3	$7,500 – $9,500
Four-panel multi-slide	16 ft wide × 8 ft tall	4	$10,000 – $14,000

The four-panel system's higher cost is almost entirely justified by span: it opens a significantly wider wall, creates a true indoor-outdoor connection, and stacks panels to one or both sides so the full 16 feet of glass becomes unobstructed. For most buyers, the cost-per-foot-of-opening actually improves as the door gets larger — the frame and hardware costs are amortized across more glass area.

If you are comparing a large multi-slide against a folding wall system for the same opening, our bi-fold doors offer a similar unobstructed opening at a similar price tier — worth exploring before you finalize your spec.

How Much Does Installation Add to the Total Cost of a Large Aluminum Sliding Door?

Professional installation for a large aluminum sliding glass door typically adds $800 to $3,500 to the total project cost, depending on opening size, existing rough-opening conditions, header requirements, and regional labor rates.

Key installation cost factors to plan for:

• Rough-opening preparation: If the existing opening is the correct size and the framing is plumb and square, installation labor is straightforward. Out-of-square openings or structural modifications increase time and cost significantly.
• Header sizing: Spans over 10 feet almost always require an engineered header. If one is not already in place, budget $500–$2,000 for structural carpentry and potentially an engineer's sign-off.
• Threshold and flooring transition: Our low-profile track sits flush with most flooring, but the transition still requires careful finish work. Factor in flooring patching or a custom threshold if the existing slab or subfloor needs modification.
• Access and location: Ground-floor patio replacements are the simplest. Second-floor balcony installations or new openings cut through solid exterior walls add labor hours.
• Flashing and waterproofing: Proper sill pan flashing and head flashing are non-negotiable for a lasting installation — do not let a contractor skip them to save time.

A practical budgeting rule of thumb: add 20–30% of the door unit cost to cover installation and ancillary materials for a straightforward replacement, and 35–50% if structural modifications are required.

Are Factory-Direct Aluminum Sliding Doors Significantly Cheaper Than Distributor Pricing?

Yes — factory-direct pricing eliminates one to two layers of margin that dealer-network brands embed in every quote. When a door moves from manufacturer to regional distributor to local dealer to homeowner, each step adds 15–30% in margin. By the time the door reaches the buyer, a $6,000 unit cost can become a $9,000–$11,000 retail price before any installation discussion.

Gladiator Window & Doors ships directly from our Jacksonville, Florida factory to any of the 50 states. That means:

• No distributor margin. The savings from cutting out the middleman go directly to you.
• Free nationwide shipping on our systems — an additional line item that dealer quotes rarely include.
• A 15-year warranty backed by the manufacturer, not a local dealer who may not be in business a decade from now.
• Direct access to our technical team for sizing, configuration, and specification questions before you buy.

For commercial clients and trade buyers, our reseller and wholesale program unlocks additional tiered pricing — worth applying for if you install multiple projects per year.

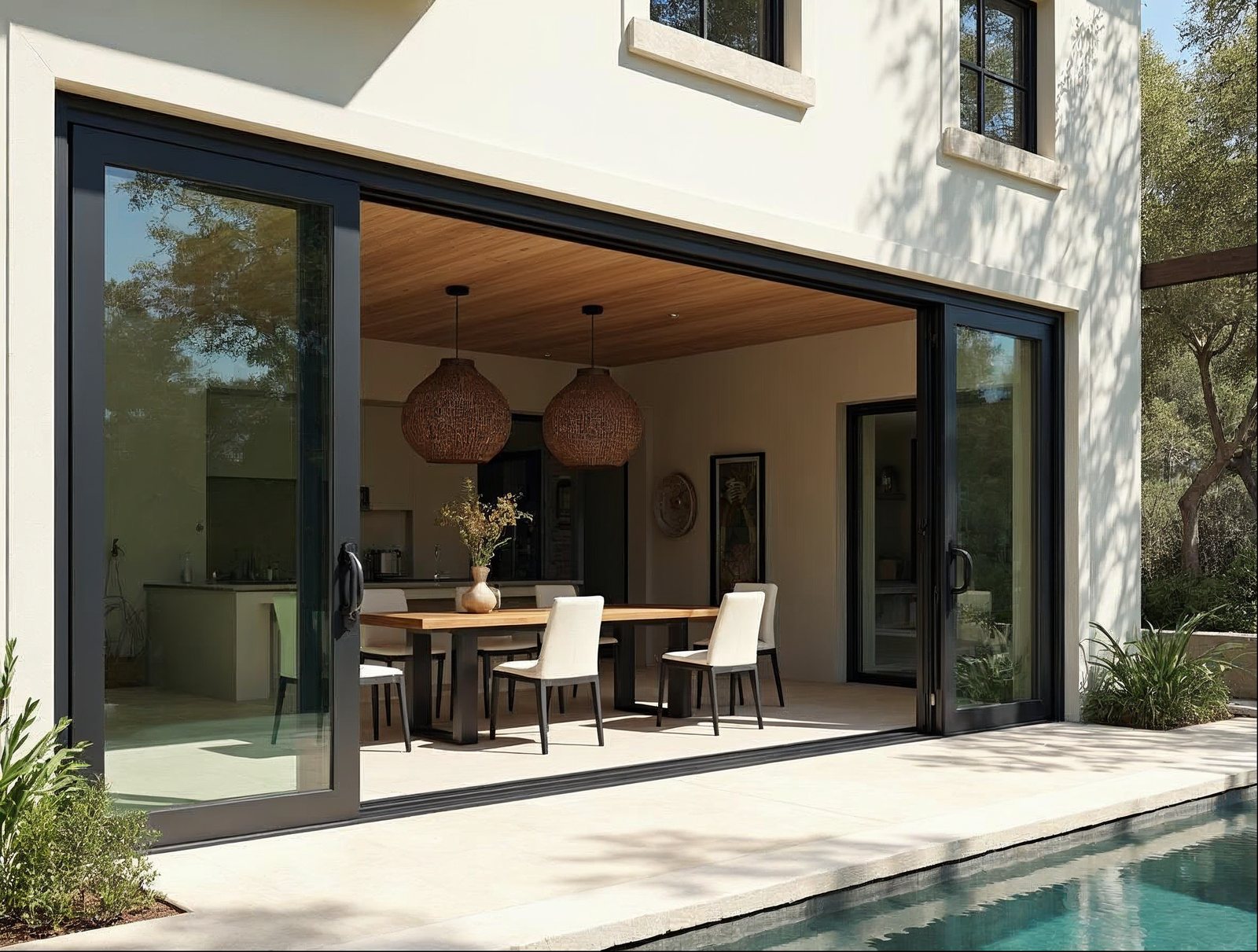

What Standard-Size Aluminum Sliding Doors Are Available at Lower Price Points?

Standard-size sliding glass doors — those built to common architectural dimensions — are the fastest path to a lower price and a faster delivery. Gladiator keeps a curated selection of standard-size units in stock at our factory, ready to ship without the lead time of a fully made-to-order system.

Stock sizes available include popular widths like 6 ft, 8 ft, 10 ft, and 12 ft in standard 8-foot heights, configured as two- and three-panel systems. These represent our best-value entry points because the manufacturing and materials costs are already optimized at scale.

Why does in-stock availability matter beyond price?

• Faster project timelines. Custom orders require production lead time. In-stock units ship as soon as your order is confirmed — no waiting for an open factory slot.
• Contractor scheduling. When you know the door will arrive quickly, you can schedule your crew without holding a project calendar open for weeks.
• Budget certainty. In-stock pricing is fixed — no material surcharge risk on future-dated custom orders.

Browse our current doors ready to ship now to see what is available in your size range. Inventory turns regularly, so checking early in your planning process is worthwhile.

If your opening falls outside a standard dimension, our made-to-order systems are fully configurable — width, height, panel count, glass specification, and finish — while still benefiting from factory-direct pricing and free shipping.

For buyers whose openings call for something other than a slider, our folding passthrough windows are an excellent complement to a sliding door system, particularly for kitchen-to-patio connections, and are also available in in-stock configurations.

Ready to Get an Accurate Price for Your Opening?

Start by checking our in-stock sliding glass door inventory for the fastest path to a confirmed price. If you need a custom size or configuration, use our online configurator or reach out to our team directly — we will walk you through every spec decision without pressure, and provide a clear, itemized quote factory-direct.
