What Is an Aluminum Commercial Storefront System?

An aluminum commercial storefront system is a non-load-bearing exterior wall assembly made from extruded aluminum framing, fixed and operable glass panels, and integrated entry doors — engineered to form the entire glazed face of a commercial building's ground floor. Unlike a residential window or patio door, a storefront system is a continuous structural grid that spans floor-to-ceiling or sill-to-head, combining fixed glass lites, operable sidelites, transoms, and commercial-grade entry doors into a single weather-sealed unit. It is the defining architectural feature of retail shops, office lobbies, restaurants, medical offices, schools, and mixed-use developments.

How Is an Aluminum Storefront System Constructed?

A storefront system is built from precision-extruded aluminum framing members — vertical mullions and horizontal rails — that interlock to form a rigid grid. Glass is set into this grid using structural glazing tape and pressure-cap covers or captured-glass gaskets, creating a continuous weather seal. The core components are:

• Extruded aluminum framing: Typically 2" × 4.5" or 2" × 6" face-dimension profiles. The depth of the extrusion determines the system's rigidity, deflection rating, and wind-load capacity.
• Thermal break: A polyamide or pour-and-debridge isolator separates the interior and exterior aluminum faces, dramatically reducing conductive heat transfer. This is non-negotiable in Florida's climate and in any project targeting ENERGY STAR or LEED credits.
• Glass infill: Insulated glass units (IGUs) are standard, with laminated-impact glass required in Florida's High-Velocity Hurricane Zone (HVHZ) and strongly recommended statewide. A quality system accommodates glass from 5/8" to 1" overall unit thickness.
• Commercial entry doors: Swing, pivot, or sliding commercial doors integrate directly into the framing grid. Door stiles and rails match the storefront extrusion profiles for a seamless appearance.
• Hardware and closers: Concealed or surface-mounted door closers, panic hardware, multipoint locks, and ADA-compliant pull handles complete the assembly.

What Are the Key Performance Specifications to Evaluate?

Performance specs determine whether a storefront system meets local code, survives Florida weather, and delivers long-term operating efficiency. Here are the numbers that matter most:

At Gladiator, every commercial storefront ships with 6 mm glass standard, thermal-break aluminum extrusions, and NFRC whole-system ratings — not just the glass alone, which is how many manufacturer specs are inflated.

What Types of Layouts Does a Storefront System Support?

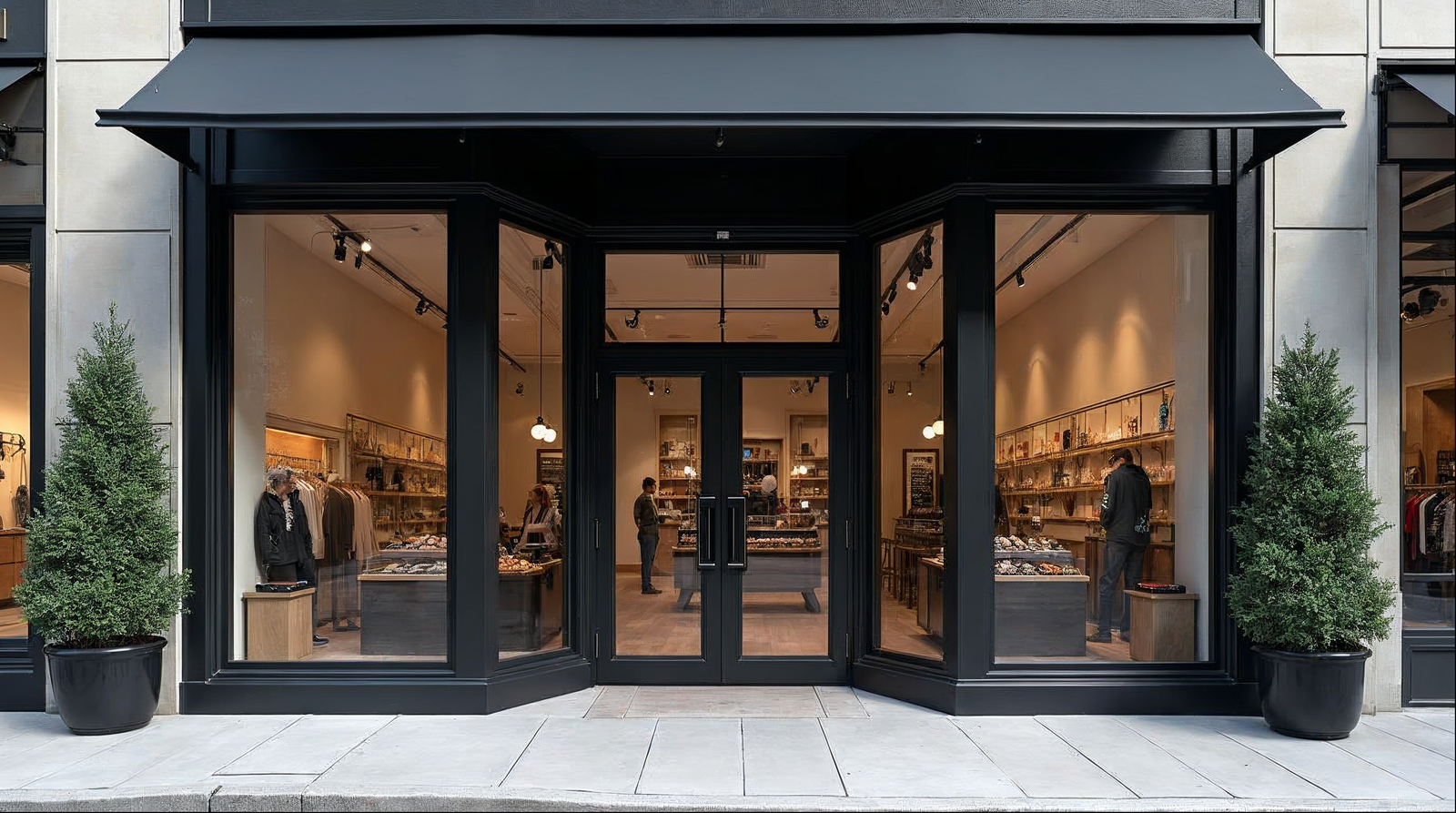

A well-designed aluminum storefront system is modular, meaning the framing grid adapts to virtually any commercial facade geometry. Common configurations include:

• Single entry with sidelites: One commercial door flanked by fixed glass panels — ideal for small retail or professional offices.
• Double entry with sidelites and transom: Two doors with fixed glass above and beside, the most common configuration for mid-size commercial buildings.
• Grand entrance with transom: Full-height glazed entry with a continuous transom band, creating a dramatic lobby presence for hotels, corporate offices, or medical centers.
• Display window wall: Fully fixed glass run with no door opening — maximizes product visibility for retail.
• Super-long storefront run: Continuous glazed wall spanning multiple bays with integrated doors, used for strip-mall anchors or large restaurant facades.

Gladiator's factory-direct model means custom sizing for any of these layouts is built into the base process — not a costly add-on. Spans beyond 12 feet are accommodated with deeper extrusion profiles and engineered mullion reinforcement.

How Does a Storefront System Differ from a Curtain Wall?

A storefront system is a ground-floor, non-structural glazed wall assembly anchored to the floor slab and head condition above. A curtain wall, by contrast, spans multiple stories, is independently suspended from the building structure (bypassing each floor slab), and is engineered to carry its own dead load plus significant wind load across greater heights. Curtain walls are significantly more expensive and require specialized engineering. For most single-story commercial projects — retail, restaurants, clinics, gyms — an aluminum storefront system is the correct and code-compliant choice.

Why Does Hurricane Impact Compliance Matter in Florida?

Florida's Building Code mandates impact-rated glazing or approved shutter protection for all commercial openings in wind-borne debris regions, which covers the vast majority of the state — and the entirety of the coastline including Jacksonville and all of Northeast Florida. A non-impact storefront system is not permittable on most commercial jobs here. Gladiator designs its commercial storefront assemblies for Florida's demanding environment from the ground up, with laminated impact glass and framing systems that carry the appropriate Florida Product Approvals. This is not an upgrade you add after the fact; it must be specified at the design stage.

Builders and architects working in Jacksonville and along Florida's First Coast should confirm that any storefront system carries a current FPA number before submitting for permit. We make that documentation available upfront.

What Does a Factory-Direct Storefront System Actually Cost?

Storefront system pricing is driven by four primary variables: linear footage of framing, glass type (clear, low-e, tinted, laminated-impact), number and type of door openings, and finish selection. Dealer-network brands typically add 20–40% in distributor margin on top of the manufacturer price. Because Gladiator ships directly from our Jacksonville factory with no intermediary markup, the savings flow directly to the project budget — without compromising specification.

Free nationwide shipping is included on Gladiator commercial storefront orders, which further closes the gap between a factory-direct spec and a locally-sourced bid that includes freight and handling charges. For builders and architects managing multiple projects, our reseller and wholesale program provides volume pricing and dedicated project support.

How Do Commercial Storefronts Pair with Other Architectural Glazing?

A storefront system rarely stands alone in a well-designed commercial project. Interior glazed partitions, back-of-house service openings, and outdoor hospitality spaces all benefit from coordinated aluminum systems. Gladiator's product line integrates across applications:

• Large operable openings: Our aluminum bi-fold doors are a natural complement to a commercial storefront when a restaurant or bar needs an indoor-outdoor wall that fully opens to a patio.
• High-traffic sliding entries: Sliding glass doors work alongside fixed storefront panels for secondary entries or accessible side entrances.
• Service and pass-through openings: Commercial kitchens and bars integrate folding passthrough windows as service counters that maintain the same aluminum aesthetic as the primary storefront.
• Outdoor structures: Aluminum pergolas coordinate with the storefront finish to extend the commercial aesthetic into covered outdoor dining or entry canopy areas.

Specifying all systems from a single factory source simplifies procurement, ensures finish consistency, and reduces coordination complexity for the general contractor.

Ready to Specify Your Aluminum Storefront System?

Whether you are an architect drawing a commercial tenant fit-out, a builder pricing a new retail strip, or a business owner renovating your storefront, Gladiator's team can provide drawings, specifications, and factory-direct pricing with a short lead time. Contact our commercial team or apply for a wholesale account to start your project.
