What is a commercial storefront system, and how is it different from a residential window and door package?

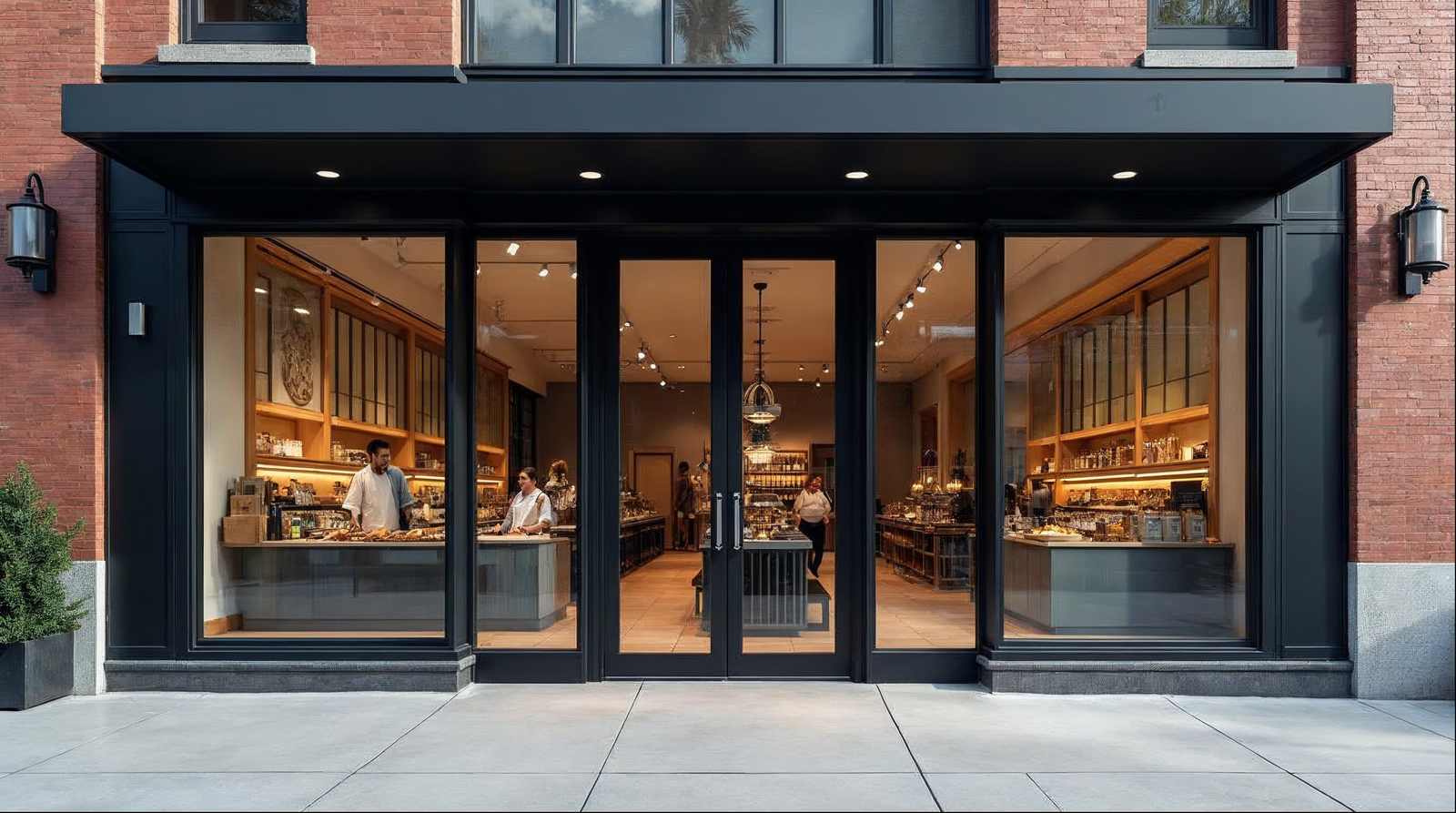

A commercial storefront system is a field- or factory-glazed aluminum framing assembly designed to span large openings in retail, office, hospitality, and mixed-use buildings. Unlike residential windows and patio doors, storefront systems are engineered to meet commercial building codes, higher structural wind-load ratings, and ADA-compliant hardware requirements. The aluminum profiles are typically heavier-gauge, the glass is thicker (often starting at 6 mm and stepping up to laminated or insulated units), and the entire assembly is rated as a whole system—not just glass or frame independently.

At Gladiator Window & Doors, our commercial aluminum storefronts are manufactured in our Jacksonville, Florida factory with thermally broken profiles, meaning the aluminum interior and exterior sections are separated by a polyamide barrier that dramatically reduces heat transfer—critical in Florida's climate and required for NFRC whole-system U-factor compliance.

What does the storefront installation process actually look like, step by step?

A well-managed storefront installation follows six distinct phases, and understanding each one helps owners, architects, and general contractors set realistic timelines and avoid costly surprises.

1. Pre-Construction: Drawings, Permits, and Shop Drawings

Before any aluminum touches a job site, your project needs stamped architectural drawings, a commercial building permit (required in every Florida county), and approved shop drawings from the manufacturer. Shop drawings confirm rough opening dimensions, anchor locations, sill flashing details, and glass specifications. This phase typically takes two to four weeks and is the single biggest schedule driver—rushing it leads to field errors that cost far more to fix.

2. Rough Opening Preparation

The structural opening must be plumb, level, and square to within ⅛ inch across the full span. Masonry and concrete openings require embedded anchor clips or drilled fasteners; steel or wood stud openings use continuous header blocking. Any moisture infiltration path—sill pans, back-dam flashing, sealant behind the frame—must be addressed before the aluminum goes in. Skipping this step is the number-one cause of water intrusion callbacks on commercial glazing projects.

3. Frame Assembly and Setting

Factory-direct systems like Gladiator's ship as pre-cut, pre-punched kite assemblies, which dramatically reduces field labor. The installer squares the frame in the opening, sets it on shims, anchors it per the shop drawing schedule, and then checks for rack and twist before any glass is cut or ordered. On multi-bay storefronts with transoms, intermediate horizontals are set and pressure-tested for alignment before moving to glazing.

4. Glazing

Glass is set into the frame using structural glazing tape and wet-seal silicone or dry-glaze gaskets, depending on the system specification. For Florida installations, impact-rated laminated glass (typically a 0.090" SGP or PVB interlayer) is required in any coastal HVHZ (High-Velocity Hurricane Zone) application. All glass units must carry a Miami-Dade Notice of Acceptance (NOA) or a Florida Product Approval (FPA) number. Gladiator's factory-direct supply chain means we specify and source the correct glass unit from the start—there's no third-party distributor interpreting the spec.

5. Perimeter Sealing and Flashing

Once the frame is glazed and plumb, the perimeter joint between the aluminum and the building substrate is sealed with a backer rod and a ASTM C920 Class 25 sealant. On exterior faces, a weep screed or continuous flashing at the sill directs any incidental water to the outside. Many inspectors in Jacksonville and coastal Florida will specifically check this detail at rough-in inspection—don't let it be an afterthought.

6. Hardware, Closers, and Final Inspection

Commercial storefronts require ADA-compliant door closers (maximum 5 lbf opening force for non-fire-rated doors), panic hardware or push-pull bars where occupancy load requires it, and keying that integrates with the building's master system. After hardware is set, a pre-final walkthrough checks glass clarity (no chips, scratches, or distortion beyond ASTM C1036 tolerances), sealant integrity, closer adjustment, and threshold height compliance. The building official's final inspection closes out the permit.

How long does a commercial storefront installation take?

Total project duration depends on scope, but a realistic breakdown for a single-storefront retail bay looks like this:

Phase	Typical Duration
Shop drawings & permit	2–4 weeks
Factory fabrication & shipping	3–5 weeks (Gladiator factory-direct)
Rough opening prep	1–2 days
Frame set & anchor	1–2 days
Glazing & seal	1 day
Hardware & final inspection	1 day + inspection scheduling

A single-bay project can move from permit to certificate of occupancy in six to nine weeks when the supply chain is tight. Multi-bay or multi-story projects scale proportionally.

What are the most common mistakes in commercial storefront installation?

The three most preventable issues we see in the field are:

• Undersized rough openings. Commercial aluminum frames need a minimum ¾-inch clearance on all sides for shimming and sealant. Openings poured or framed tight to the nominal size create impossible field conditions.
• Wrong glass specification. Specifying clear annealed glass in a Florida HVHZ is a code violation. Always confirm Miami-Dade NOA or FPA numbers before ordering glass.
• Skipping the sill flashing. Water will find the sill. A proper sill pan with end dams and a slope to drain is non-negotiable in Florida's rain-intensive environment.

Does working with a factory-direct manufacturer change the installation process?

Yes—in several meaningful ways. When you order directly from Gladiator's Jacksonville factory, you're dealing with the engineers who designed the system, not a sales rep at a distribution house. That means shop drawing review cycles are faster, substitution questions get answered with actual engineering data, and the components that arrive on site were fabricated to your exact opening dimensions—not cut down from stock lengths in a warehouse.

Factory-direct pricing also removes the distributor and dealer markups that are standard in commercial glazing supply chains. On a multi-bay or full-floor commercial project, that savings is substantial. Gladiator ships free nationwide and backs every system with a 15-year warranty, so the total installed cost—and total ownership cost—is genuinely competitive with dealer-network alternatives that carry higher embedded margins.

Builders and glazing contractors who install multiple Gladiator commercial projects each year can also apply for our reseller and wholesale program, which provides volume pricing, priority lead times, and dedicated technical support.

What finishes and configurations are available for commercial storefronts?

Gladiator commercial storefronts are available in matte black, dark grey (RAL 7016), white (RAL 9010), and bronze anodized aluminum. Configuration options include single-entry with sidelites, double-entry with sidelites and transom, full display window walls with no operable door, and long-run multi-bay assemblies suited to retail corridors and hospitality lobbies. The same thermally broken aluminum profile spans all configurations, so U-factor and structural performance are consistent regardless of layout.

If your project also includes interior courtyard access or covered outdoor dining, Gladiator's aluminum bi-fold door systems and multi-slide glass door systems use the same aluminum family as our commercial storefronts, making mixed-system specification straightforward. For bar or café pass-through counters, our folding passthrough windows integrate cleanly with a commercial storefront façade.

Ready to spec your commercial storefront?

Whether you're a developer, architect, or general contractor, Gladiator's commercial team can turn around a preliminary quote with system options in 24–48 hours. Start a wholesale or commercial inquiry here, or browse our full commercial storefront line to explore configurations, finishes, and performance specifications.
