By the Gladiator Window & Doors Technical Team — factory-direct aluminum door specialists serving contractors, builders, and trade accounts nationwide.
Exterior pocket sliding glass doors solve a problem that standard multi-slide systems cannot: when you need a completely unobstructed opening — no stacked panels visible on either side — the pocket configuration hides every panel inside the wall cavity when fully open. This guide answers the six questions builders, developers, and architects ask most often before speccing a pocket slider, including rough opening requirements, realistic cost ranges, lead times, and how to order factory-direct through Gladiator.
What exactly is a pocket sliding glass door and how does it differ from a standard multi-slide door?

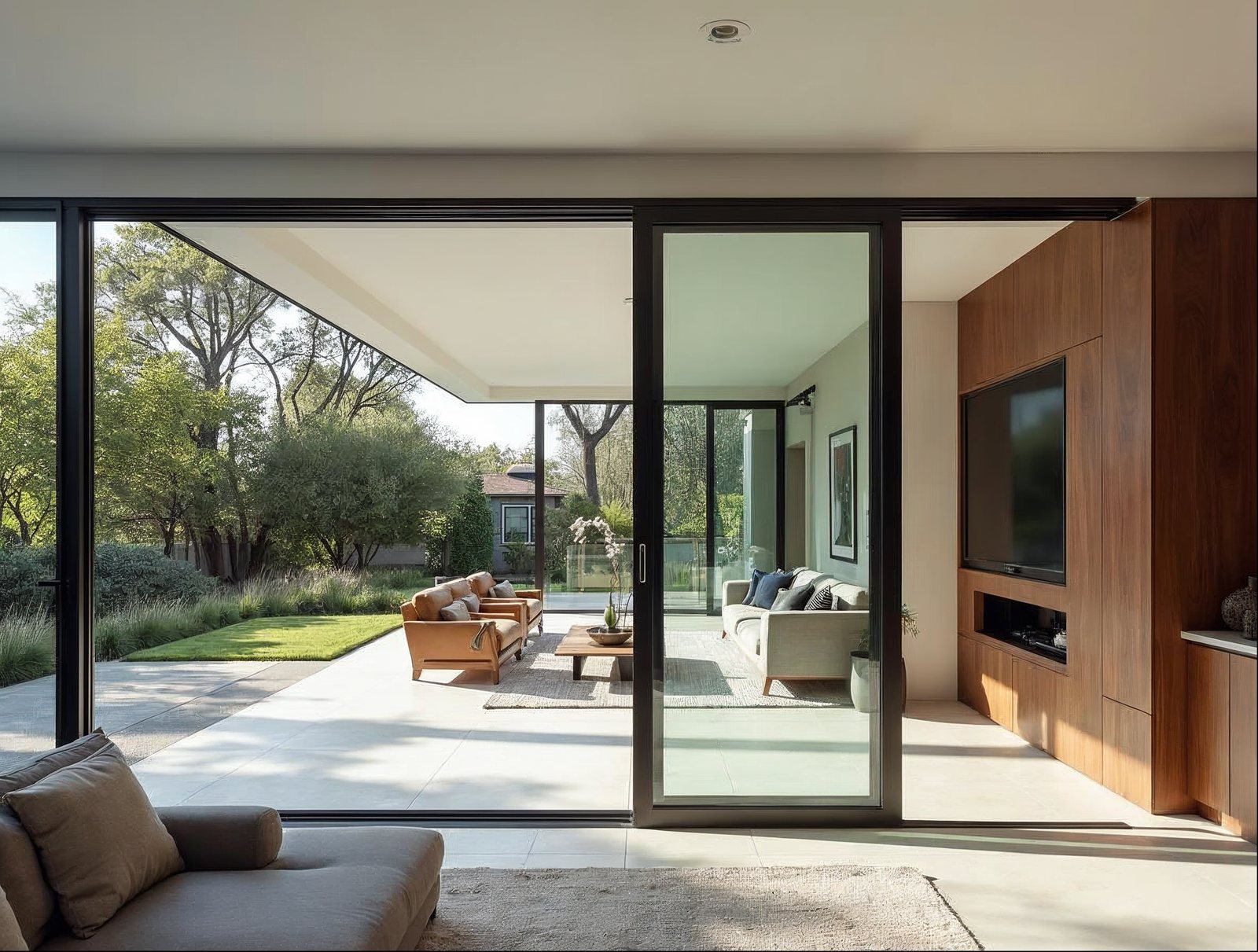

A pocket sliding glass door retracts all panels completely into a concealed wall pocket, leaving a fully open, frame-free threshold when the system is in the open position. A standard multi-slide system stacks its panels against one or both sides of the opening in a visible stack; a pocket system eliminates that stack by routing every panel into an engineered cavity built into the wall framing. The practical result is a seamless indoor-outdoor connection with zero visual obstruction — no panel stack interrupting sightlines or living space.
Key structural distinction: because the panels disappear into the wall, pocket configurations require a deeper rough opening wall (typically 6–8 inches minimum finished depth per pocket side) and a properly engineered header to span both the visible opening and the pocket cavity. The track system runs continuously from the visible opening into the pocket, sitting flush at the threshold so there is no trip hazard. Gladiator's aluminum sliding glass door systems are available in both standard stacking and full pocket configurations — using the same thermal-break aluminum frame platform.
Configurations available in a pocket layout:
- Single pocket (one direction): all panels slide and hide into one wall side.
- Double pocket (center open): panels split and disappear into pockets on both sides, maximizing the clear opening width.
- Combination pocket/stack: one side pockets, the other side stacks — useful when only one wall cavity is available.
How much do exterior pocket sliding glass doors cost for large openings?
For a factory-direct aluminum pocket sliding glass door system, builders should budget approximately $850–$1,800 per linear foot of opening depending on panel count, glass specification, finish, and pocket configuration — with large openings (16 ft and wider) generally falling in the mid-to-upper range due to header engineering and track complexity.
The table below shows how Gladiator's factory-direct aluminum pocket systems compare on key cost and spec dimensions against the two most common alternative system archetypes builders encounter:
| Specification | Gladiator Factory-Direct Aluminum | Dealer-Network Aluminum Systems | Wood-Clad Pocket Systems |
|---|---|---|---|
| Frame material | Thermal-break aluminum | Thermal-break aluminum | Wood interior / aluminum exterior |
| Standard glass thickness | 6mm (standard, no upcharge) | Typically 5mm or upgrade pricing | Varies; often 3/4" IGU |
| Typical cost per linear foot | $850–$1,800 (factory-direct) | $1,400–$2,500+ (dealer markup) | $2,000–$3,500+ |
| Lead time (custom) | 6–10 weeks | 10–16 weeks | 12–20 weeks |
| In-stock standard sizes | Yes — ships faster | Rarely | No |
| Shipping | Free nationwide | Freight cost added | Freight cost added |
| Warranty | 15 years | Varies (typically 5–10 years) | Varies (wood components limited) |
| Trade / wholesale pricing | Yes — direct reseller program | Dealer discount only | Dealer discount only |
| U-factor (whole-door NFRC) | Available; meets CA Title 24 | Available at upcharge | Available; wood frame assists |
Cost drivers for pocket systems specifically (beyond the door unit itself):
- Header engineering: the beam must span the full pocket + opening width; on a 24 ft double-pocket opening that can mean a 26–28 ft structural header.
- Wall pocket framing: labor and material to build and finish dual wall cavities adds $1,500–$4,000 per pocket depending on wall depth and finish material.
- Glass spec: low-e coatings, tinted glass, and upgraded IGU units affect unit price but Gladiator's 6mm glass is standard — not an add-on.
- Finish selection: matte black, dark grey RAL 7016, white RAL 9010, and bronze anodized are all standard; no upcharge on standard finishes.
What rough opening and wall-depth requirements do pocket sliding doors need?
Pocket sliding glass door rough openings must account for three dimensions simultaneously: width (opening + pocket depth × 2 for double-pocket), height, and wall depth — and all three must be confirmed before framing begins.
Width rough opening
For a single-pocket configuration, the rough opening width equals the finished door opening width plus the pocket cavity width (typically equal to the opening width) plus framing tolerances (~1 inch per side). A 12 ft single-pocket system therefore requires a rough opening of approximately 24–25 ft total wall width. For double-pocket (center-open), each side pocket is half the total panel stack width; a 16 ft opening with 4 panels (2 each direction) needs roughly 24 ft of total framed wall.
Header height and span
Header engineering is the most critical framing element. The header must span the entire rough opening width — pocket included — and carry roof or floor loads above. On openings exceeding 16 ft, engineered LVL or steel I-beam headers are standard practice. Gladiator provides configuration drawings with door orders so structural engineers have accurate load-point data.
Wall depth (pocket cavity)
The pocket cavity must be deep enough to house the full panel stack when open. Panel thickness in Gladiator's aluminum system is approximately 2 inches per panel including the frame. A 4-panel single-pocket system requires a minimum 10–12 inch finished interior pocket depth (panels + track clearance + drywall). Standard 2×6 framing (5.5 inch cavity) is insufficient on its own — builders typically frame a dedicated pocket wall using doubled framing or a steel-stud pocket frame to achieve the required depth without sacrificing interior space.
Floor track and threshold
Gladiator's low-profile track sits flush at the finished floor level — the threshold rise is minimal, eliminating trip hazards at large openings. Confirm subfloor and concrete slab heights before ordering so the track detail integrates cleanly with the finished floor material (tile, wood, or concrete).
Can pocket sliding glass doors include screens for large exterior openings?
Yes — retractable screen systems are compatible with exterior pocket sliding glass door configurations, but the screen housing location requires planning at the rough opening stage. Because both wall pockets are occupied by door panels, screen cassettes are typically mounted to the face of the pocket frame header or integrated into a dedicated screen pocket above or beside the door pocket.
Options builders use on large pocket openings:
- Retractable roll-up screens: motorized or manual cassette mounts at the header; screen drops vertically across the opening. Works on openings up to 16 ft wide per cassette; wider openings use dual cassettes meeting at center.
- Sliding screen panels: run on a dedicated outer track in front of the door track. Screen panels stack in their own mini-pocket or at a fixed end when not in use.
- No screen (most common on large commercial openings): developers and commercial clients often forgo screens on openings exceeding 20 ft; the fully open configuration is the feature.
Confirm screen compatibility at the time of door order — screen track integration affects the rough opening width and head detail. Gladiator's team can advise on the correct head detail for your specific panel count and pocket configuration.
How do contractors and builders order pocket sliding doors factory-direct?
Ordering factory-direct from Gladiator follows a structured process designed specifically for trade accounts — contractors, builders, developers, and dealers — not retail walk-ins. The process moves faster than dealer-network ordering because there is no distributor layer adding quote time or markup.
- Apply for a trade or wholesale account. Submit the Reseller & Wholesale Application to unlock trade pricing, volume discounts, and a dedicated account contact. This is the fastest path to accurate quotes on pocket systems.
- Submit project dimensions and configuration. Provide the finished opening width, height, panel count, pocket direction (single or double), wall depth, and finish. If the project is still in design, rough dimensions are fine for a ballpark quote.
- Review shop drawings and approve. Gladiator provides configuration drawings showing panel layout, pocket depth, track detail, and header load points. Your structural engineer reviews and signs off before production begins.
- Confirm glass spec and finish. Select glass package (standard 6mm, low-e, tinted, or upgraded IGU), finish color, and hardware. All standard finishes are included at no upcharge.
- Production and shipping. Custom pocket systems are manufactured in our Jacksonville, FL factory. Freight ships free to any of the 50 states. Delivery is coordinated directly with the job site or staging warehouse.
Builders managing multiple projects can also check in-stock doors ready to ship for standard-size configurations that ship significantly faster than custom lead times — useful for projects with tight schedules or standard rough openings.
What are the lead times for custom-sized pocket sliding glass door systems?
Custom pocket sliding glass door systems from Gladiator ship in 6–10 weeks from approved shop drawings, which is consistently faster than dealer-network brands that add distributor queue time on top of factory production. Standard in-stock configurations ship in days, not weeks.
What affects lead time?
- Panel count and opening width: systems with 6 or more panels on a single pocket run require more production time than 2- or 3-panel configurations.
- Glass specification: standard 6mm clear or low-e glass is fastest. Specialty tints or custom IGU builds add 1–2 weeks.
- Approval speed: production does not begin until shop drawings are signed off. Fast turnaround on approvals = faster ship dates. Builders who pre-apply for trade accounts and submit dimensions early can compress the total timeline significantly.
- Volume orders: multi-unit residential or commercial projects with multiple door systems may qualify for phased production scheduling — discuss with your account rep.
Planning lead times into your schedule
Best practice: initiate the Gladiator quote process at permit application, not at permit issuance. By the time permits clear, shop drawing approval and production can begin immediately — keeping the door delivery on the framing schedule rather than delaying rough-in inspections. Pocket systems also require the wall framing and pocket cavity to be built before the door can be set, so early coordination between the door spec and the framing subcontractor is essential.
For projects where schedule is the primary constraint, explore Gladiator's in-stock inventory — standard pocket-compatible sizes that ship within days — or consider a standard stacking sliding glass door system as an alternative if the pocket wall framing is not yet committed. Builders speccing folding configurations should also review bi-fold door systems and folding passthrough windows for complementary indoor-outdoor opening solutions on the same project.
