Do I need a structural engineer for a folding door installation?

In most cases, yes. Any folding door opening wider than 10 feet, located in a load-bearing wall, in a multi-story building, or in a high-wind zone requires a licensed structural engineer to size the header, posts, and connections. In Florida, engineered drawings are required for permitting on large glazed openings in hurricane-exposure areas.

What header size do I need for a large folding door?

Header size depends on span, tributary load, lumber species/grade, and local code — there is no single prescriptive answer for spans over 16 feet. For openings 16 ft and wider, builders typically use an engineered wood beam (PSL or LSL) or a steel wide-flange beam, sized by a structural PE to limit deflection to L/360 or tighter so glass panels don't bind or rack.

How much does a large bi-fold door system weigh, and does that affect the structure?

Yes. A typical Gladiator aluminum bi-fold panel with 6mm glass can weigh 80–130 lbs each. An 8-panel system can add 640–1,040 lbs of door dead load to the header. This weight must be factored into the structural beam design alongside the building's tributary loads. Share the door system's weight per linear foot with your engineer before beam sizing is finalized.

What deflection limit should be specified for a folding door header?

Gladiator recommends specifying a deflection limit of L/360 or tighter for any header supporting a large folding door system. Standard residential allowances of L/240 are too loose and can cause the top track to bow, leading to panel binding, hardware problems, and long-term seal failure.

What sill or threshold substrate does a folding door require?

Gladiator's low-profile flush track must bear on a level, rigid substrate — within 1/8 inch across the full span. For ground-floor installations, this typically means a concrete slab of adequate thickness and mix design. On elevated wood-framed floors, an engineered sub-floor system is required to prevent track deflection and panel binding.

Does Florida's building code have special requirements for large folding door structural framing?

Yes. Florida Building Code (FBC) requires engineered framing drawings for large glazed openings, especially in high-velocity hurricane zones (HVHZ) like Miami-Dade and Broward counties. The door system must have a Miami-Dade NOA or FBC product approval, and the surrounding structural framing must be engineered by a licensed PE to transfer wind loads into the building's lateral system.

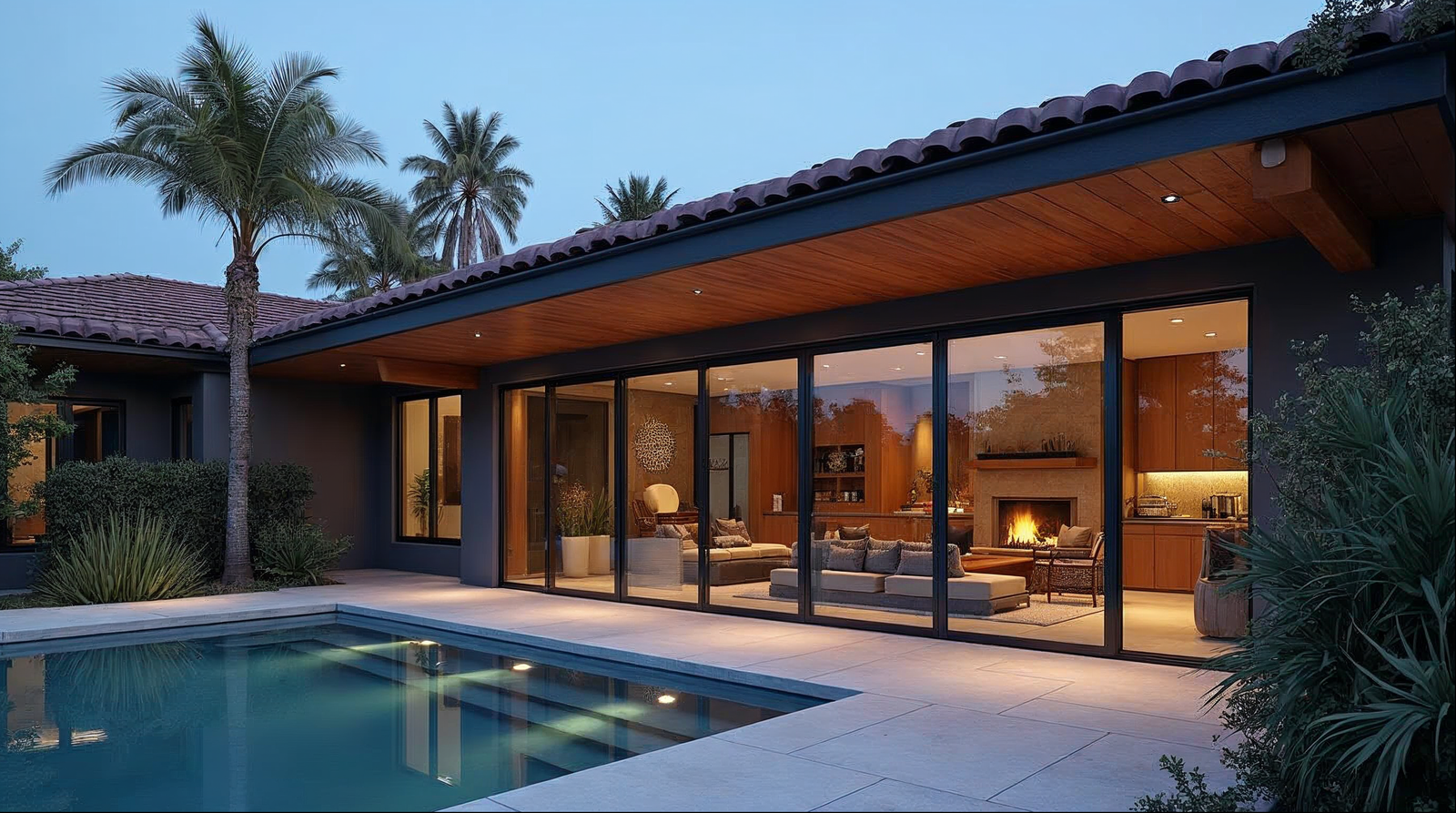

Do Large Door Systems Need Special Structural Support?

By Gladiator Window & Doors August 21, 2026

By the Gladiator Window & Doors Technical Team — factory-direct aluminum door manufacturer, Jacksonville, FL

Yes — large folding door systems almost always require engineered structural support. Any opening wider than roughly 10–12 feet must carry roof, floor, or wall loads that were previously handled by the framing being removed. A proper header or beam, sized by a licensed structural engineer for your specific span and load conditions, is non-negotiable before any large-format bi-fold door system is installed.

Why Do Large Openings Require a Structural Header or Beam?

When you remove a wall section to accommodate a wide folding door, you eliminate the studs that were distributing vertical loads down to the foundation. Every pound of roof dead load, live load (people, equipment, snow where applicable), and lateral wind load that those studs carried must now travel through a header or beam spanning the new opening and down into the king studs and posts on each side. Skip or undersize that element and you risk deflection, cracked finishes, door misalignment, or — in extreme cases — structural failure.

In Florida, this is compounded by wind-pressure requirements. Miami-Dade and Florida Building Code (FBC) demand that large openings in high-velocity hurricane zones be tested and rated for specific design pressures. The structural framing around your door must be capable of transferring those wind loads into the building's lateral system. A properly spec'd aluminum folding door like Gladiator's — with thermal-break aluminum extrusions and 6mm impact-rated glass standard — meets the door-level performance requirements, but the surrounding framing must be engineered to match.

What Header or Beam Size Is Needed for a Folding Door Opening?

There is no single universal answer — header size depends on span, tributary load, lumber or steel species/grade, and local code — but the table below shows representative framing archetypes builders encounter across common folding door widths.

Opening Width	Typical Framing Approach	Engineer Required?	Notes
Up to 10 ft	Double 2×12 LVL or engineered lumber header	Often prescriptive (check local code)	Verify point load at king studs
10–16 ft	Triple LVL or parallam beam; steel angle options	Recommended in most jurisdictions	Post size and footing bearing critical
16–24 ft	Engineered wood beam (PSL/LSL) or wide-flange steel	Required in virtually all jurisdictions	Deflection limit L/360 or stricter for glass panels
24 ft and wider	Steel wide-flange or built-up steel beam; moment frame may be needed	Always required; structural PE stamp	Coordinate beam depth with door head clearance

Deflection is the critical variable for glass doors. Standard residential deflection allowances (L/240) are too loose for large glass panel systems. Gladiator recommends specifying L/360 — or tighter — on any header carrying a folding door system to prevent glass-panel racking, hardware bind, and seal failure over time. Communicate this to your structural engineer before drawings are finalized.

folding door structural support header detail — 6-panel matte black bi-fold door on Florida coastal home

When Should a Builder Consult a Structural Engineer?

Consult a licensed structural engineer any time the folding door opening exceeds 10 feet, is in a load-bearing wall, is located in a high-wind or seismic zone, or when the home is multi-story and upper-floor loads bear above the opening. In practice, that covers the vast majority of large-format door installations.

Here are the specific triggers that make engineer involvement mandatory, not just advisable:

Load-bearing wall removal — any wall running perpendicular to floor joists or roof rafters is almost certainly load-bearing.
Multi-story construction — upper-floor dead and live loads concentrate at posts flanking the opening; undersized posts or footings are the most common failure point.
High-wind or hurricane zones — Florida's FBC requires engineered connections for large glazed openings in Wind Exposure Categories C and D. Miami-Dade product approval and a NOA (Notice of Acceptance) for the door system must be paired with engineer-of-record drawings for the surrounding framing.
Spans over 16 feet — prescriptive span tables in the IRC and FBC don't cover these widths; a PE-stamped calculation is required for permit.
Retrofit or remodel projects — existing framing conditions (notched studs, old lumber species, non-standard spacing) are unknowns until exposed; an engineer's field assessment before demo protects everyone.
Commercial applications — any commercial or mixed-use project with folding glass walls or large accordion door systems will require engineered drawings for permitting regardless of span.

How Does Door Weight and Track Loading Factor In?

The door system itself adds dead load that the header must support. Gladiator's aluminum bi-fold panels with 6mm tempered or laminated glass weigh significantly more per panel than single-pane or thin-frame alternatives. A typical Gladiator bi-fold panel in the 3-ft-wide × 9-ft-tall range can weigh 80–130 lbs depending on glass specification. An 8-panel system at full width therefore contributes 640–1,040 lbs of door dead load bearing on the top track and, ultimately, on the structural header above it.

The top track on Gladiator systems is a continuous aluminum extrusion that distributes this load across the header, but the header must still be designed to handle the combined tributary building load plus door system dead load without exceeding allowable deflection. Share the door system's weight per linear foot with your engineer of record at the start of design — not after the beam is already sized.

Equally important: the sill and threshold must bear on a structurally adequate sub-floor or concrete substrate. Gladiator's low-profile flush track requires a level, rigid bearing surface; if the slab or subfloor deflects, the track deflects, and the door panels will bind. Coordinate concrete mix design and slab thickness with your civil or structural engineer on ground-floor installations.

engineer-approved folding door structural support beam in Southeast US new construction project

What Are the Most Common Structural Mistakes Builders Make with Large Door Systems?

The most common structural mistakes are undersizing the header for deflection (not just strength), failing to transfer loads down through properly sized posts to adequate footings, and neglecting lateral bracing at the jamb posts.

Undersized header for deflection: A beam can be strong enough to not break but still deflect enough to bind the top track. Always specify a deflection limit, not just a load capacity.
Undersized king studs and posts: A correctly sized beam transferring load into a doubled 2×4 king stud that's been notched for plumbing is a failure waiting to happen. Use full-height, un-notched LVL or steel posts at wide openings.
No bearing below the post: A steel beam sitting on a wood post sitting on a standard footing can still punch-through or rotate if the footing bearing area is undersized. Engineers often specify a spread footing or pile cap at these locations.
Ignoring lateral loads: Wind uplift and lateral pressure act on the door and transfer into the jamb framing. The connection between the door frame, rough opening, and structural system must be engineered for these loads — especially in Florida coastal zones.
Coordinating rough opening dimensions late: Rough opening width and height directly affect beam span and required clearance. Get Gladiator's shop drawings into your structural engineer's hands before final beam sizing, not after the frame is built.

How Do I Coordinate Structural Requirements with Gladiator's Door Specs?

Start the process by requesting Gladiator's product data sheet for your selected system — it includes panel weight per square foot, track bearing load, rough opening tolerances, and minimum sill substrate requirements. Gladiator's factory-direct model means you are working directly with the manufacturer; our team can provide the technical data your structural engineer needs without routing through a distributor or dealer who may not have access to that documentation.

Key data points to pass to your engineer:

Total door system weight and distribution (per linear foot of header)
Minimum rough opening dimensions (width and height) per Gladiator's shop drawings
Recommended deflection limit: L/360 minimum
Sill substrate requirements: level within 1/8 in. over the full span, rigid (concrete slab or engineered sub-floor)
Wind-pressure rating of the door system (for Florida FBC compliance pairing)

Gladiator's aluminum bi-fold door systems are available in configurations from 2 to 10+ panels, spanning from compact 6-ft openings to expansive 40-ft+ walls of glass. Our aluminum sliding glass doors and folding passthrough windows each carry their own structural data; coordinate early regardless of which system you specify.
