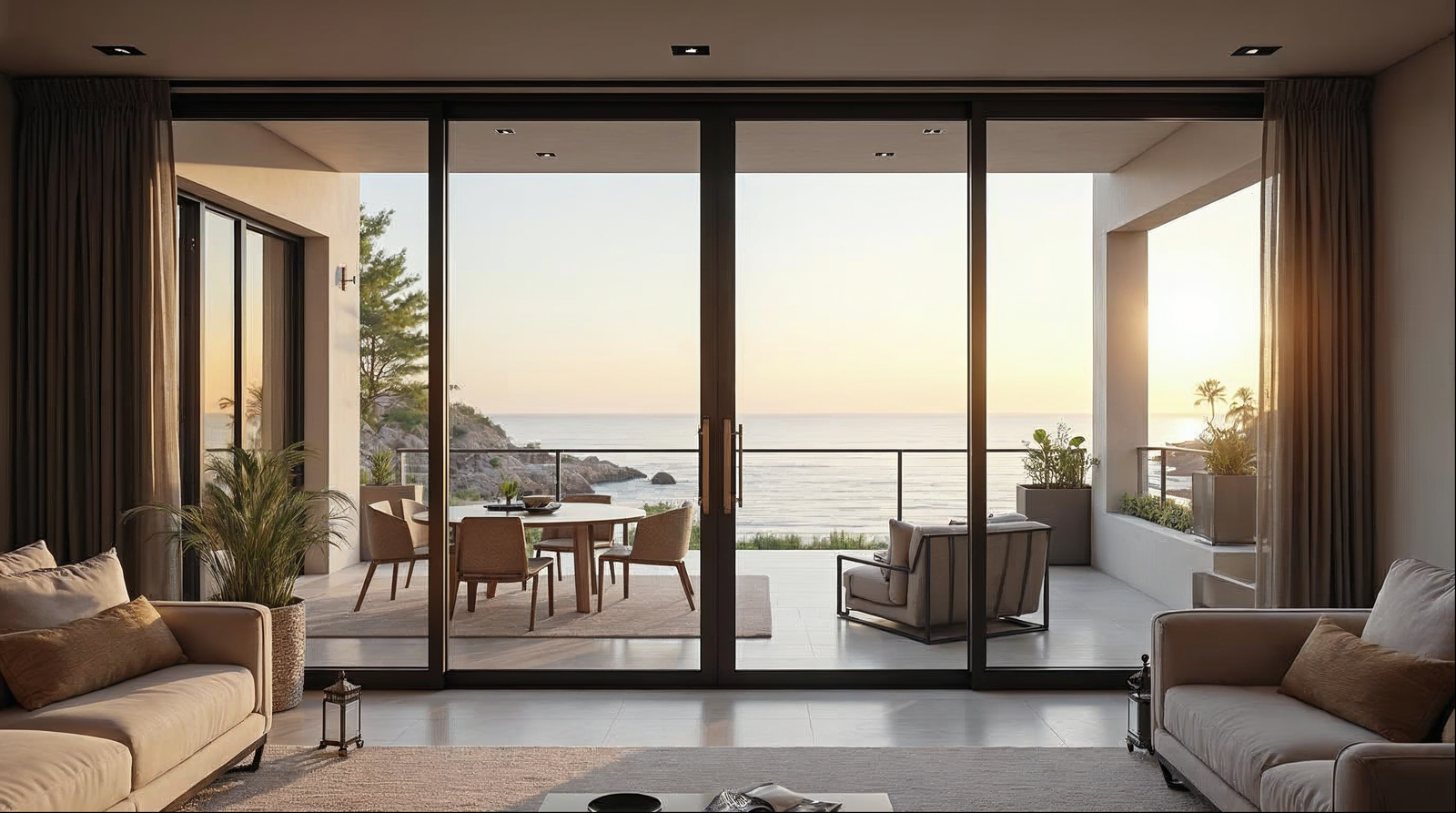

How Wide Can a Sliding Glass Door Be?

A premium aluminum sliding glass door system can span up to 40 feet or more in total opening width when multiple panels are combined on a multi-slide or pocket-slide track. A single sliding panel is typically limited to around 6–8 feet wide, but stacking two, three, four, or more panels side by side is how architects and builders achieve truly expansive glass walls — sometimes 30, 36, or even 40+ feet across in custom residential and commercial applications.

The honest answer depends on three things: panel count, structural support (the header above the opening), and the glass specification. Understanding each one will help you design the widest sliding glass door that works for your space, your budget, and Florida's building code.

What Is the Maximum Width of a Single Sliding Panel?

A single sliding panel in a high-performance aluminum system typically maxes out at roughly 72–96 inches (6–8 feet) wide and up to 120 inches (10 feet) tall. Beyond that, glass deflection, panel weight, and hardware load become engineering challenges that most track systems are not designed to handle reliably long-term.

At Gladiator, our sliding glass doors are built to custom dimensions, so we work with you to find the ideal panel width that balances sightlines, operability, and structural reality. Thicker aluminum extrusions and heavier-duty stainless rollers allow panels on the larger end of that range to glide smoothly without sagging over time.

• Typical single panel width: 36 in – 72 in (3–6 ft)
• Large-format single panel: up to ~96 in (8 ft)
• Maximum panel height: up to ~120 in (10 ft) in most systems

How Do Multi-Panel Configurations Increase Total Opening Width?

Total opening width grows by adding panels — a 2-panel, 3-panel, 4-panel, or even 6-panel configuration lets you achieve wall-length glass that a single slider never could. Each panel rides on its own track, so the engineering challenge shifts from panel size to header span and track load.

Common multi-slide configurations and approximate total widths:

Pocket-slide systems — where all panels disappear into a wall cavity — deliver the cleanest sight line because there is no stacked glass visible when the door is fully open. This is the configuration most often used in high-end Florida homes where the goal is a completely unobstructed indoor-outdoor connection.

What Structural Requirements Apply to Very Wide Sliding Door Openings?

The wider the opening, the more critical the structural header becomes — this is often the single biggest factor that limits how wide a sliding glass door can actually be in a given project. A 20-foot or 30-foot span requires an engineered steel or LVL beam above the opening to carry the load that was previously handled by the wall. Without it, the frame will rack, the track will deflect, and the panels will bind or leak.

In Florida, this intersects directly with hurricane impact requirements. The Florida Building Code (FBC) requires that openings in wind-borne debris regions — which covers the majority of coastal and inland Florida — be protected by impact-rated glazing or approved shutters. For wide sliding doors, that means:

• Laminated impact glass: typically 7/16 in or thicker (e.g., ⁷⁄₁₆ in laminated with a 0.090 in PVB interlayer), tested to Miami-Dade or FBC protocols.
• Insulated impact glass: dual-pane units combining impact laminate with an insulating air or argon-filled cavity for energy performance — required for most conditioned spaces under Florida Energy Code.
• Structural glazing silicone: used at perimeter glass edges in large-format panels to transfer wind load into the frame without point-stress failures.

Heavier impact glass also adds significant weight per panel — often 8–12 lbs per square foot — so the track, roller hardware, and structural sill must all be spec'd accordingly. This is why factory-direct manufacturing matters: we engineer the frame, glazing, and hardware as an integrated system rather than sourcing them separately.

Does the Widest Sliding Glass Door Cost Significantly More?

Yes, wider and taller sliding glass doors cost more, and the cost scales with panel count, glass specification, and structural complexity — not just square footage. Here are the main cost drivers to plan for:

• Panel count: Each additional panel means more aluminum extrusion, more glass, and more hardware. A 6-panel system can be two to three times the material cost of a 2-panel system.
• Impact glass upgrade: Laminated insulated units cost more than standard double-pane, but are essential in Florida and add real long-term value in storm protection and insurance.
• Pocket-slide complexity: Building a wall cavity for panels to pocket into adds framing labor and coordination with your GC or architect.
• Structural header: An engineered beam for a 20-ft+ opening can add thousands of dollars to a framing budget — but it is non-negotiable for safety and code compliance.
• Factory-direct advantage: Buying directly from Gladiator's Jacksonville facility eliminates distributor and dealer markups, which on a large custom order can represent a meaningful saving — often 20–30% compared to retail-channel pricing.

How Does a Wide Sliding Door Compare to a Bi-Fold Door for Large Openings?

For very large openings — say 20 feet and beyond — both wide sliding doors and bi-fold (accordion) doors are strong options, and the right choice depends on how you want the opening to feel and function.

Sliding doors keep all panels in-plane with the wall, require no swing clearance, and create a cleaner, more minimalist aesthetic. They are generally the better fit for wide but moderate-height openings where unobstructed sightlines and ease of operation are the priority. Bi-fold doors fold and stack to one side, opening nearly the full width — but they do require a small amount of swing clearance and the folded stack is visible at the jamb.

For openings with a counter or bar top — like an outdoor kitchen pass-through — a folding passthrough window is a purpose-built solution that opens horizontally over the counter, which neither a sliding door nor a bi-fold door can replicate cleanly.

What Should I Tell My Contractor or Architect Before Ordering?

To get an accurate quote and ensure your wide sliding door installs without surprises, gather these details before you reach out:

• Rough opening dimensions: width × height in inches, as-built or planned.
• Wall thickness: affects sill and jamb depth, and pocket-slide cavity planning.
• Stack direction preference: which side do panels stack to when open?
• Impact requirement: confirm whether your county and zone require impact-rated glazing (most of Florida does).
• Finish preference: matte black, dark grey RAL 7016, white RAL 9010, or bronze anodized.
• Exterior exposure: ground floor vs. upper floor; salt-air proximity for corrosion-resistant hardware spec.

If you are a builder or design professional working on multiple projects, our reseller and wholesale program offers trade pricing and dedicated project support.
