Yes — large aluminum bi-fold doors do come pre-hung as a complete system. When you order from a factory-direct supplier like Gladiator Window & Doors, the panels arrive pre-assembled in their frames with hinges, a top-hung track, a bottom guide track, and all specified hardware included. What you are not doing on-site is cutting, routing, or assembling frame members from raw extrusions. Your crew hangs the system into a prepared rough opening, sets the track, levels and plumbs the frame, and the door is operational. The sections below break down exactly what is — and is not — included so you can plan your rough opening, structural header, and labor budget without surprises.

Do large aluminum bi-fold doors come pre-hung from the factory?

Yes. Factory-direct aluminum bi-fold door systems ship as a pre-hung unit: panels are pre-fabricated with glass already set, hinges already attached, and the head and sill tracks pre-drilled and ready to fix into the rough opening. There is no on-site glazing, no field-assembled frame joinery, and no hardware drilling. The installer's job is to prepare the structural rough opening to the specified dimensions, anchor the frame perimeter, level and plumb, then hang the folding panel stack on the top-hung track. For large multi-panel runs — 6, 8, or even 10 panels spanning 20 ft to 40 ft — this factory pre-assembly is what keeps field labor predictable and the system square from the first panel.

Gladiator's aluminum bi-fold doors ship in panel sets with the complete frame perimeter included. Standard in-stock configurations — common widths and panel counts — can ship faster than made-to-order custom units, which is worth considering when a project schedule is tight. See current in-stock doors ready to ship for lead-time-sensitive jobs.

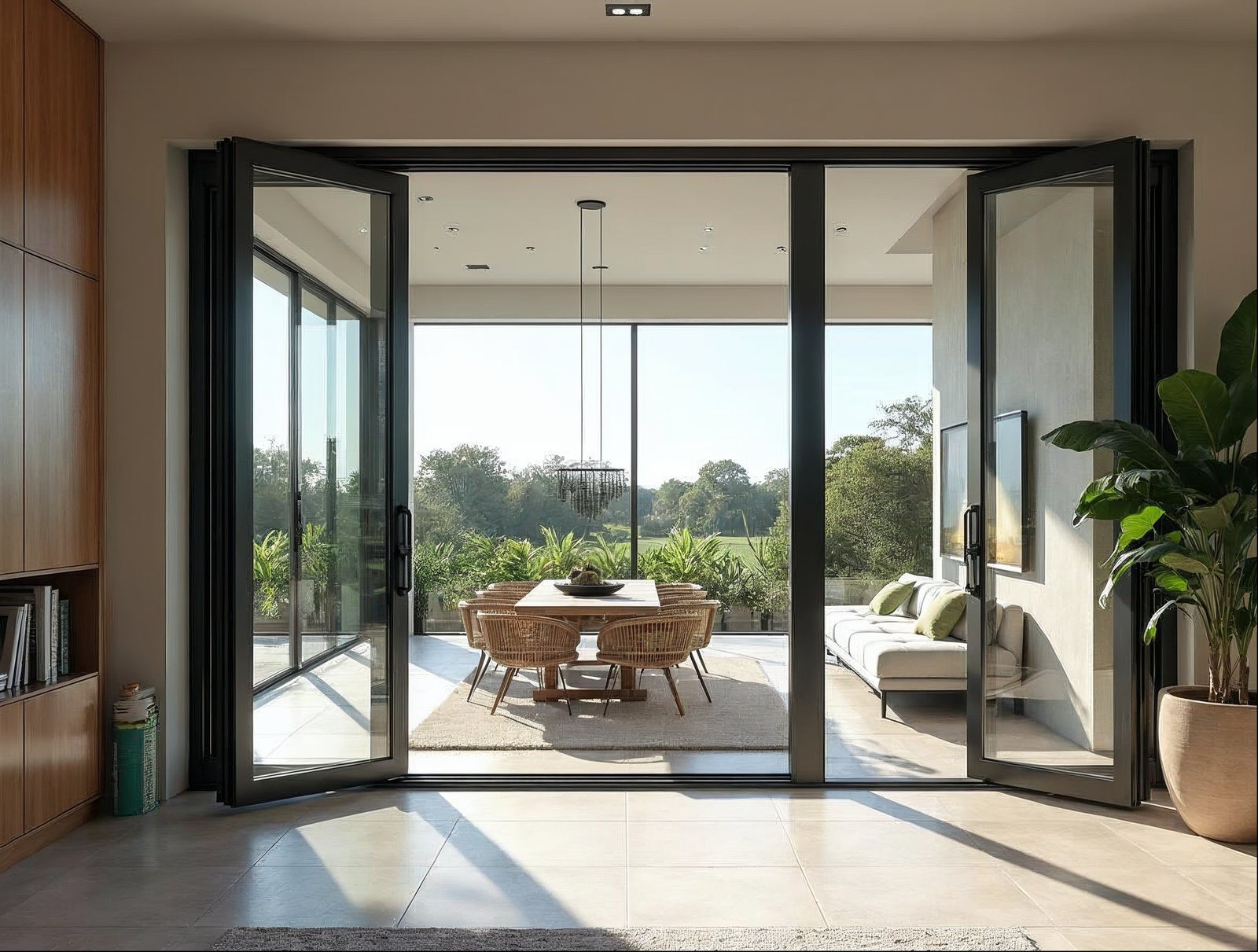

Do aluminum bi-fold doors come with a frame, or is that ordered separately?

The complete frame — head jamb, sill, and both jamb legs — is included with every Gladiator aluminum bi-fold door system; it is not a separate line item. The frame is extruded thermal-break aluminum, meaning a continuous polyamide thermal barrier is pressed between the interior and exterior aluminum profiles. This matters for two reasons: it dramatically reduces conductive heat transfer through the frame itself, and it is a requirement for California Title 24 energy compliance and most other state energy codes adopted from ASHRAE 90.1.

Frame depth and profile dimensions are sized to the system. For large openings — say a 6-panel, 24-ft run — the head extrusion is engineered to carry the full panel load across the span without deflection. Contractors need to confirm the structural header above the rough opening is sized for the dead load of the door system (glass weight is substantial with 6mm glass across 8 or 10 panels) plus any structural loads above. Gladiator's technical team provides load data on request so your engineer of record can specify the correct header.

Key frame specs for planning purposes:

• Frame material: Thermal-break aluminum with polyamide thermal barrier
• Glass thickness: 6mm standard (dual pane insulated unit)
• Panel widths: Individual panels typically 24 in – 36 in wide; total system widths from ~8 ft to 40+ ft depending on panel count
• Standard configurations: 2-, 3-, 4-, 5-, 6-, 8-, and 10-panel sets; stacking left, right, or split (bi-parting)
• Finishes: Matte black, dark grey RAL 7016, white RAL 9010, bronze anodized
• Energy performance: Whole-door NFRC U-factor and SHGC ratings available; low-e glass standard

What hardware is included when you order aluminum bi-fold doors?

Every Gladiator aluminum bi-fold door system includes the full hardware set needed for installation and operation — nothing is sold separately as an add-on. Standard inclusions are:

• Top-hung roller carriages: One per panel, pre-set in the head track; carry the panel weight and allow smooth folding travel
• Head track: Extruded aluminum top track, factory-drilled for anchor points, spanning the full opening width
• Bottom guide track: Low-profile aluminum sill track that keeps panels aligned without bearing panel weight (top-hung system)
• Continuous hinges: Panel-to-panel hinges pre-attached; number depends on panel height (typically 3 hinges per panel pair for 8-ft panels; 4 for 10-ft panels)
• Folding handle set: Interior and exterior pull/lever hardware for the active leaf panel
• Multi-point locking mechanism: Engages at top and bottom of the active panel; operates with a single lever or handle turn
• End panel jamb latch or flush bolt: Secures the stacking end of the panel run to the jamb when fully open
• Weather seals and gaskets: Factory-applied to all panel perimeters and sill; no field sealing required before operation
• Anchor and fixing hardware: Frame anchor clips and fastener packs included

What is NOT included and must be sourced separately: threshold transitions or floor-level trim to match finished flooring, structural jamb blocking or LVL buck material, and site-applied sealant for the perimeter between frame and rough opening framing.

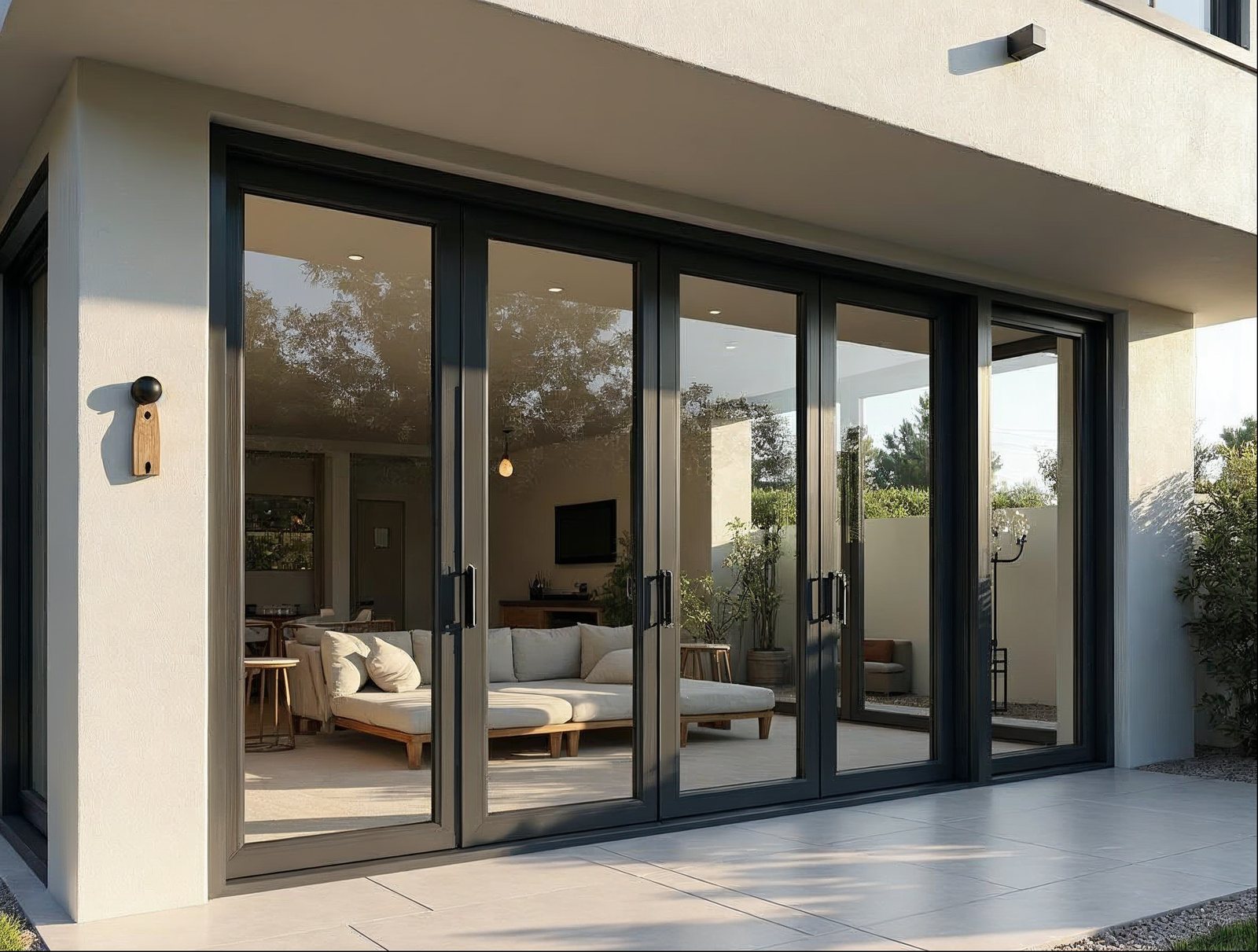

Do aluminum bi-fold exterior doors need a bottom track?

Yes — all aluminum bi-fold door systems require a bottom track, but on a quality top-hung system, the bottom track is a guide only, not a weight-bearing component. Gladiator bi-fold doors use a top-hung carriage system: each panel is suspended from the head track via roller carriages, so virtually all panel weight is transferred to the header, not the floor. The low-profile bottom guide track keeps the panel stack perpendicular and prevents lateral drift — it does not carry load.

This distinction matters for floor finish planning. Because the bottom track is slim and low-profile, the transition between interior and exterior floor levels is minimal. For flush or near-flush threshold details — increasingly specified on high-end residential and commercial projects — Gladiator's bottom guide track allows for a very low-threshold installation. Contractors should still plan for a threshold transition strip between interior and exterior floor surfaces and confirm the sill track anchor pattern with the project's waterproofing or flashing detail at the rough sill.

For folding systems that open onto decks, patios, or outdoor living areas, also consider that the bottom track will see foot traffic and some exposure. Gladiator's tracks are aluminum-extruded and powder-coated to match the system finish — they are not mild steel or plastic components.

If your project also includes complementary systems — for example, a sliding glass door in an adjacent wall or a folding pass-through window at a bar or serving counter — Gladiator's track profiles are consistent across product lines, which simplifies matched-finish specifications.

Does an aluminum bi-fold door system come with its own frame, or does it need a site-built buck?

The aluminum bi-fold door system ships with a complete factory frame — you do not need to build a separate interior wood or LVL buck to carry the door. However, the structural rough opening still needs to be framed correctly in the wall structure before the aluminum frame is set, and for large spans, that framing must include an engineered structural header or LVL beam above the opening. The aluminum head extrusion is an aesthetic and functional frame member, not a structural beam — it does not replace the structural header.

Here is the practical distinction for field crews:

• What the factory frame replaces: A pre-built interior wood buck, field-assembled frame joinery, and any separate frame order. The aluminum perimeter frame is included, finished, and ready to anchor into the structural framing.
• What site framing still requires: A structural rough opening sized to Gladiator's specified rough-opening dimensions (provided in the project submittal), with king studs, trimmers, and an engineered header for the span. For openings over ~12 ft, a structural engineer should specify the header.
• Rough-opening tolerance: Typically ¾ in to 1 in per side for shimming and plumb adjustment. Exact tolerances are provided with each order's installation documentation.

For contractors planning multiple openings on a project or a production build, Gladiator's trade account holders get access to direct technical support to review rough-opening schedules before walls are framed — preventing the most common field problem: a rough opening that is undersized for the ordered system. Apply for a Reseller & Wholesale Account to get that level of pre-construction support.

Aluminum Bi-Fold Door System: What's Included vs. What You Supply — Spec Comparison Table

How to Order: The Factory-Direct Process for Trade Buyers

For contractors, builders, and developers ordering at volume, the Gladiator factory-direct process is straightforward:

1. Confirm rough-opening dimensions: Provide the clear opening width and height. Gladiator provides the exact rough-opening size required for your specified panel count and configuration.
2. Select configuration: Panel count, stack direction (left, right, or bi-parting), finish, glass type (low-e standard; tinted or frosted available), and hardware finish.
3. Review submittal drawings: Trade account holders receive submittal-ready drawings for permit sets and structural engineer coordination.
4. Place order and confirm lead time: Standard in-stock sizes ship faster. Custom configurations have production lead times confirmed at order.
5. Receive and inspect on delivery: Systems ship freight-protected; inspect panels, frame members, and hardware pack on receipt before signing off.
6. Install: Anchor frame to structural rough opening, hang panels on top track, set bottom guide, adjust roller carriages for plumb and smooth travel, apply perimeter sealant.

Trade account holders also get direct access to Gladiator's technical team for pre-construction rough-opening review, specification support, and post-delivery questions — not a general customer service queue. If you are managing multiple projects or want consistent trade pricing across a production build, the Reseller & Wholesale Account is the right structure. You can also explore the full bi-fold door collection to review available panel counts, finishes, and glass options before your next spec submittal.

For related product planning on mixed-system projects, see our guides on sliding glass door systems and aluminum pivot doors for entry applications.
