For wide exterior openings — panels starting at 8 feet and running past 30 feet — aluminum sliding glass doors are the better structural and aesthetic choice over vinyl in nearly every commercial and high-end residential application. Aluminum's superior strength-to-size ratio supports taller glass panels, longer unsupported spans, and thinner sightlines that vinyl simply cannot match at scale. That said, the right material depends on opening width, project budget, energy-code requirements, and long-term durability expectations. This guide breaks down every dimension of the aluminum vs. vinyl decision so contractors, builders, architects, and dealers can specify with confidence.

By the Gladiator Window & Doors Technical Team — factory-direct aluminum door manufacturer, Jacksonville, FL. We engineer, fabricate, and ship aluminum sliding, bi-fold, and pivot systems directly to job sites nationwide.

Are aluminum sliding doors better than vinyl for large openings?

Yes — aluminum is structurally superior to vinyl for large sliding door openings, and the performance gap widens as panel width and height increase. Vinyl (PVC) extrusions rely on internal steel or aluminum reinforcement once panels exceed roughly 6 feet in height; beyond that, the composite assembly adds weight without adding rigidity. Aluminum extrusions carry the load natively. A thermally broken aluminum frame carries a large glazed panel without deflecting, bowing, or requiring hidden steel reinforcement — which matters for smooth operation on low-profile flush tracks over decades of use.

For openings under 6 feet wide and 7 feet tall in a budget-sensitive residential context, vinyl can be a workable choice. For anything wider, taller, or in a project where aesthetics, longevity, or re-sale value matter, aluminum is the professional specification. Gladiator's aluminum sliding glass doors are available in panel widths up to 5 feet per panel and door heights up to 10 feet, with multi-panel configurations spanning openings from 6 feet to over 36 feet wide.

How do aluminum and vinyl sliding doors compare on strength, frame size, and glass area?

Aluminum's higher modulus of elasticity — roughly three times that of PVC — means thinner frame profiles carry the same or greater load, resulting in substantially more glass area per opening. In practical terms, a thermal-break aluminum sliding door delivers sightlines as narrow as 2–3 inches at panel joints, while a vinyl system at the same size typically runs 3.5–5 inches or more at the same location due to the bulkier extrusion geometry needed to maintain stiffness.

• Panel width: Aluminum panels can be fabricated up to approximately 5 ft wide; vinyl panels are typically capped around 4 ft wide before deflection tolerances become a quality concern.
• Panel height: Aluminum sliding doors routinely reach 10 ft tall. Vinyl systems above 8 ft require heavy steel reinforcement and become unwieldy in the field.
• Glass-to-frame ratio: A 12 ft × 10 ft aluminum two-panel slider can achieve 90%+ visible glass area. An equivalent vinyl system loses 10–15% more area to frame material.
• Glazing capacity: Gladiator aluminum sliding doors are glazed with 6mm tempered glass as standard — a spec typically reserved for premium systems and not common in vinyl product lines at the same price point.

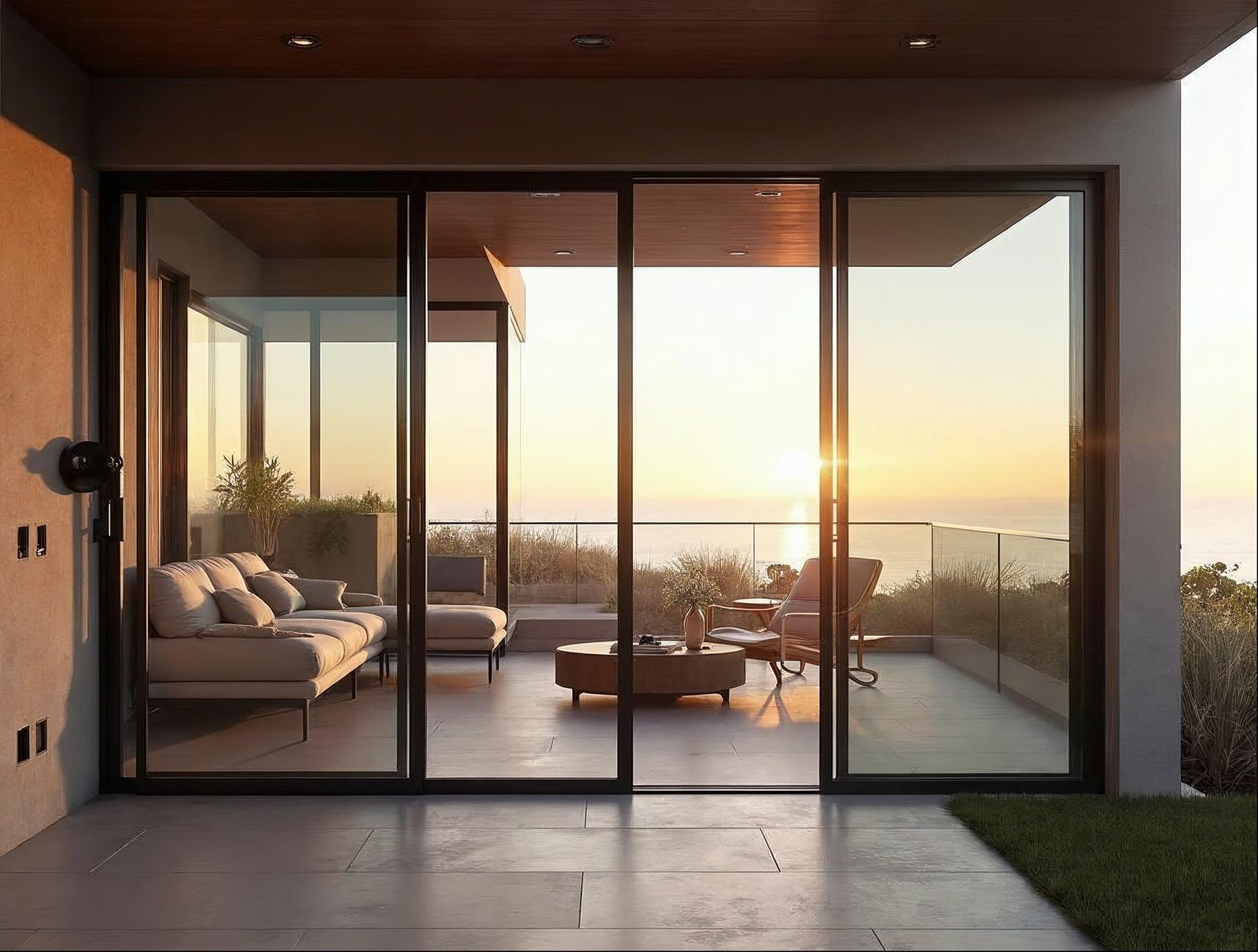

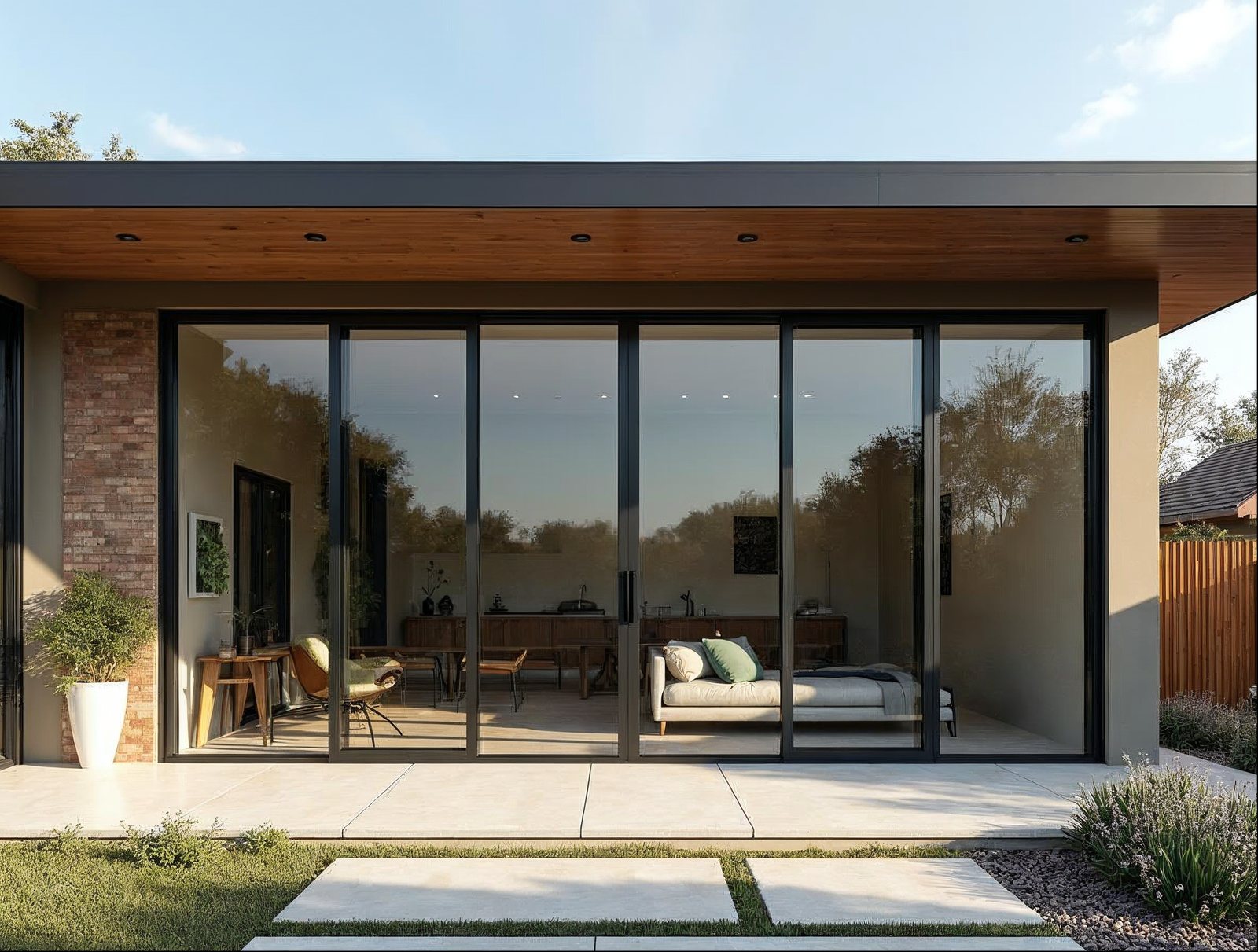

• Multi-panel configurations: Aluminum systems support 2-, 3-, 4-, and 6-panel configurations, including pocket-slide (disappearing) layouts. Vinyl is largely limited to 2- and 3-panel configurations before structural and operational concerns arise.

Which material holds up better over time — aluminum or vinyl sliding doors?

Aluminum holds up significantly better over time, particularly in high-UV environments, temperature-extreme climates, and in commercial or high-traffic applications. Vinyl (PVC) is vulnerable to UV degradation, thermal expansion and contraction cycles, and surface oxidation over 10–15 years, which can cause frames to warp, discolor, and lose their seal integrity. Aluminum does not warp, rot, or degrade under UV exposure, and when finished with a quality powder coat, it retains its appearance and structural integrity for 20-plus years.

Key long-term considerations by material:

• Thermal cycling: Vinyl expands and contracts at roughly four times the rate of aluminum. Over years of cycling, this stresses corner joints, weatherstripping seats, and glazing seals. Aluminum's lower expansion coefficient keeps tolerances tight and hardware operating smoothly.
• Finish durability: Gladiator doors ship with a durable powder-coat finish standard. Vinyl frames are colored through the extrusion; surface chalking and yellowing are common after 10+ years of sun exposure and cannot be field-refinished.
• Hardware compatibility: Heavy multi-point locking hardware, motorized actuators, and flush flush-handle systems are engineered for aluminum substrates. Retrofitting or upgrading hardware on vinyl frames in the field is often impractical.
• Warranty: Gladiator offers a 15-year warranty on its aluminum sliding door systems. Vinyl products in this category typically carry 5–10 year limited warranties with significant material exclusions.
• Recyclability / end-of-life: Aluminum is infinitely recyclable, a specification point increasingly required in LEED and sustainable-build projects.

Does aluminum or vinyl perform better for energy efficiency in a large sliding door?

Modern thermal-break aluminum sliding doors match or outperform vinyl on whole-door energy performance — a distinction that matters when specifying to California Title 24 or ENERGY STAR standards for large openings. The critical spec is the whole-door NFRC U-factor, not the frame material alone. Vinyl has a slightly lower conductivity as a raw material, but thermal-break aluminum frames — which incorporate a polyamide or foam insulating bridge between interior and exterior aluminum skins — eliminate the thermal bridging that historically made aluminum a poor energy performer.

• Thermal-break frame: All Gladiator aluminum sliding doors feature thermal-break aluminum construction, achieving competitive whole-door U-factors suitable for most U.S. climate zones.
• Glass specification: Gladiator's standard 6mm glass paired with dual-pane low-E insulating glass units delivers SHGC and U-factor values appropriate for national energy codes. Vinyl products often ship with thinner glass (4mm or 5mm) to keep weight manageable.
• Glazing options: Aluminum systems can accommodate a wider range of IG unit thicknesses (including triple-pane units for cold-climate projects) than vinyl, which is constrained by frame depth and structural load limits.
• Air infiltration: Aluminum sliding doors with proper multi-point locking and compression weatherstripping achieve low air infiltration rates — a critical metric for large openings where the perimeter seal is proportionally large.
• California Title 24: For California residential and commercial projects, Gladiator aluminum sliding systems with thermal breaks and low-E glass are appropriate for Title 24 compliance review. Specifiers should confirm glazing package selection with their energy consultant for the specific climate zone.

What are the price differences between aluminum and vinyl large sliding glass doors?

For large openings (12 ft wide and above), the installed cost difference between aluminum and vinyl systems is smaller than most contractors expect — and factory-direct aluminum pricing frequently closes the gap entirely. Here is a realistic framework for 2026 project budgeting:

Specification	Gladiator Thermal-Break Aluminum	Standard Vinyl Sliding System	Premium Wood-Clad Sliding System
Typical opening range	6 ft – 36+ ft wide	6 ft – 16 ft wide (practical max)	6 ft – 24 ft wide
Max panel height	Up to 10 ft	Up to 8 ft (with reinforcement)	Up to 10 ft
Glass standard	6mm tempered, dual-pane low-E IG	4–5mm, dual-pane low-E IG	5–6mm, dual-pane low-E IG
Frame construction	Thermal-break aluminum extrusion	PVC extrusion (steel-reinforced at large sizes)	Aluminum core, wood or composite cladding
Typical dealer-net cost (12 ft × 8 ft, 2-panel)	$3,500–$5,500 (factory-direct)	$2,800–$4,500 (distribution markup included)	$7,000–$12,000+
Multi-panel configurations	2, 3, 4, 6+ panels; pocket-slide available	2–3 panels standard	2–4 panels standard
Shipping	Free nationwide (all 50 states)	Varies by distributor region	Typically freight-quoted separately
Lead time (in-stock sizes)	Ships within days from stock	2–6 weeks typical	8–16 weeks typical
Lead time (custom/made-to-order)	3–5 weeks typical	4–8 weeks	12–20 weeks
Warranty	15 years	5–10 years (limited)	5–10 years (limited)
Upcharges for large sizes	None — priced by configuration	Often apply above standard sizes	Significant at non-standard sizes

The key cost dynamic: vinyl products reach the market through multi-tier distribution (manufacturer → regional distributor → dealer → contractor), and that chain adds 30–50% to factory cost before a contractor ever sees a quote. Gladiator sells factory-direct to trade accounts at wholesale pricing with no middleman markup — which means a comparable per-square-foot cost at a substantially higher specification level. For large openings where the door is a centerpiece of the design, the value case for aluminum is clear.

Contractors managing multiple projects can further improve margins by accessing in-stock doors ready to ship, avoiding lead-time delays that push installation schedules and draw costs.

Which sliding door material do contractors and builders typically specify for wide openings?

Aluminum is the dominant specification choice among experienced contractors, builders, and architects for any wide sliding door opening, and has been for the last decade in high-end residential, multi-family, hospitality, and commercial construction. Vinyl specification is largely confined to budget entry-level single-family residential and manufactured housing — segments where price per unit matters more than longevity, aesthetics, or configurability.

Here is why the trade community defaults to aluminum for wide openings:

• Structural confidence: Aluminum does not require engineering caveats at large spans. Builders avoid the liability and field callbacks associated with vinyl systems that bow, rack, or degrade the glazing seal over time in large-format configurations.
• Architectural compatibility: Modern residential and commercial design calls for minimal sightlines and maximum glass. Aluminum delivers the profile geometry that architects specify; vinyl cannot replicate it at scale.
• Rough-opening simplicity: Gladiator's aluminum sliding doors are specified with clear rough-opening dimensions and header-load documentation. Standard in-stock configurations allow contractors to frame rough openings to published specs, reducing custom engineering on-site.
• Hardware and integration: Multi-point locking, flush pulls, soft-close rollers, and smart-lock integration are standard or available on aluminum systems. Vinyl hardware ecosystems are limited and often proprietary to the manufacturer.
• Repeat-buy economics: Builders and developers running multiple projects benefit from consistent wholesale pricing, predictable lead times, and a single point of contact. Gladiator's Reseller & Wholesale Application gives trade accounts access to volume pricing and project support across their entire pipeline.

For contractors and dealers who also specify aluminum bi-fold doors for wide interior-to-exterior transitions, the same aluminum advantage applies — and sourcing both systems from a single factory simplifies procurement, finish matching, and warranty coverage on every project.

Ordering and lead-time planning for wide aluminum sliding doors

Getting a large aluminum sliding door to the job site on schedule requires three planning steps:

1. Confirm the rough opening early. For a 3-panel slider spanning 18 ft × 9 ft, the rough opening must account for the frame allowance (typically ½ inch per side and top), sill pan, and header depth. Gladiator provides opening guides for every standard configuration.
2. Choose stock vs. custom. Standard configurations ship from in-stock inventory within days. Made-to-order panels in non-standard widths, heights, or finishes ship in 3–5 weeks. Build both timelines into your schedule before framing.
3. Apply for a trade account before the project starts. Trade account holders receive priority quoting, project-specific pricing, and dedicated support. Apply through the Reseller & Wholesale Application so your account is active when the first RFQ arrives.
