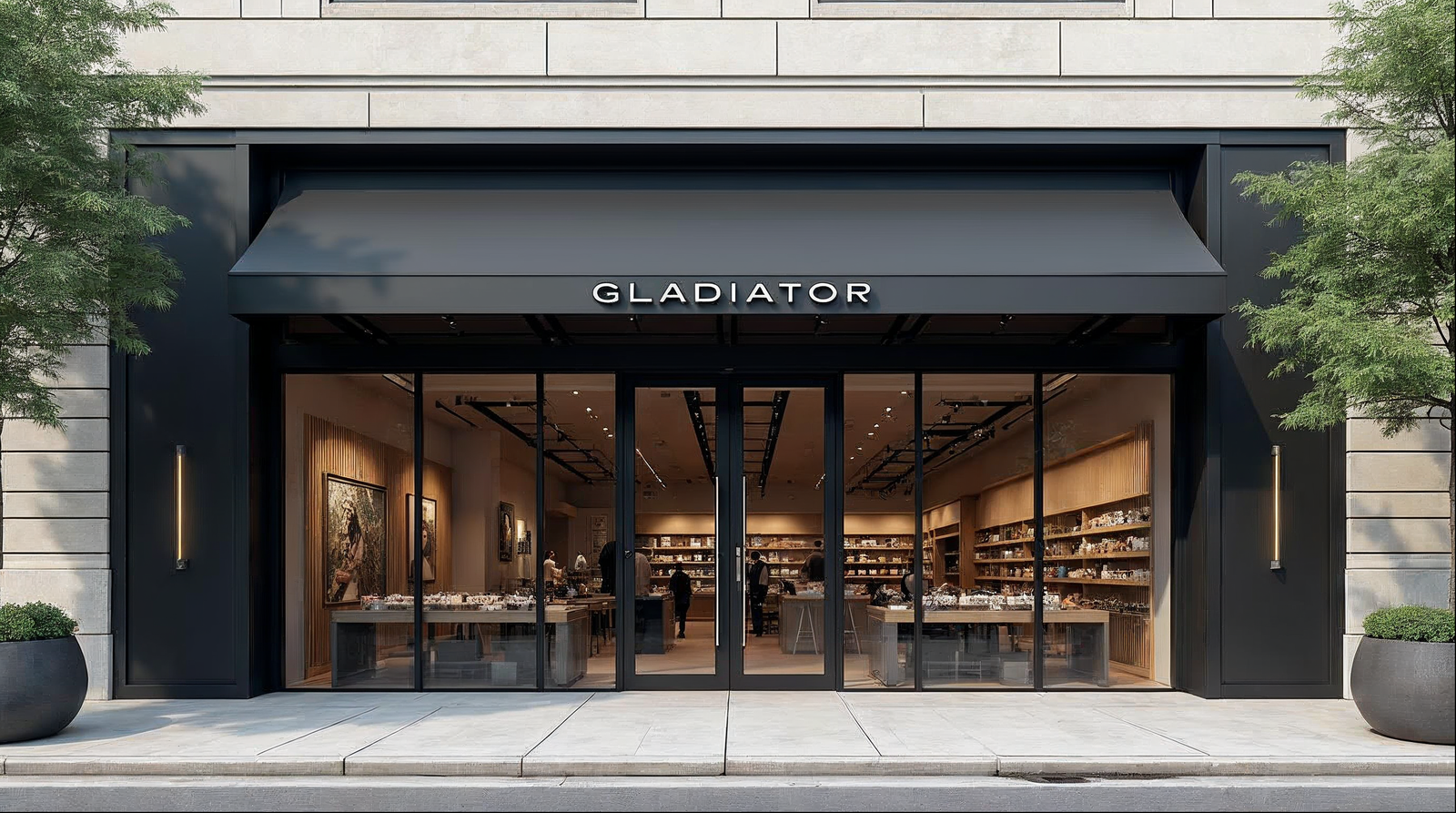

What Is a Retail Storefront System?
A retail storefront system is a factory-engineered assembly of aluminum framing, structural glazing, entry doors, and hardware designed to form the entire glass-forward face of a commercial space. Unlike residential patio doors or windows, commercial storefront systems are engineered to meet higher structural, thermal, and egress requirements — spanning wide openings, supporting heavy glass loads, and integrating with commercial locking and access-control hardware.
For retailers, restaurants, showrooms, and mixed-use developers, the storefront is both the building's first impression and its most performance-critical envelope component. Choosing the right system from the start saves costly change orders, code-compliance delays, and energy-penalty fines down the road.
What Frame Material Should a Retail Storefront Use?
Thermally broken aluminum is the industry standard for commercial storefronts and the right choice for virtually every retail build-out in 2026. Aluminum delivers the strength-to-weight ratio needed to span large openings without bulky mullions, accepts precision powder-coat finishes that hold color for decades, and meets the structural requirements of ASCE 7 wind-load standards — critical in Florida and coastal markets.
The key distinction to evaluate is thermal break construction. A true thermal break inserts a low-conductivity polyamide barrier between the interior and exterior aluminum flanges, dramatically reducing heat transfer and condensation. In Florida's climate — where exterior temperatures regularly exceed 95°F — a thermally broken frame keeps interior surfaces comfortable, protects merchandise from heat damage near the glass line, and lowers cooling loads.
Gladiator's commercial storefront frames ship with a factory-applied thermal break as standard, not an upgrade. That distinction matters when you're comparing line items on a bid sheet.
What Glass Specification Is Right for a Commercial Storefront?
Glass selection drives both the energy performance and the structural integrity of your retail storefront. The key variables are:
- Thickness: Most commercial storefronts use 6mm glass as a baseline. For spans exceeding roughly 5 feet or in high-wind-load zones, laminated or tempered-laminated units are required by code.
- Insulated Glass Units (IGU): A dual-pane IGU with a low-e coating is the minimum for energy code compliance in Florida's climate zone. It reduces solar heat gain while maintaining visible light transmittance — so your products stay visible without your HVAC working overtime.
- Impact Rating: In Florida, coastal counties and many inland jurisdictions require impact-rated glazing. This means laminated glass that holds together under debris impact, satisfying Florida Building Code (FBC) hurricane provisions. Confirm your jurisdiction's wind-speed map zone before specifying glass.
- NFRC U-Factor: Look for whole-assembly NFRC ratings, not just center-of-glass numbers. A whole-door or whole-unit U-factor accounts for the frame, edge, and glass together — the number that actually appears on your energy compliance report.
What Entry Door Configuration Works Best for Retail?
The right entry configuration depends on your foot traffic volume, ADA requirements, and brand aesthetic. The most common layouts for retail build-outs are:
- Single entry with sidelites: Ideal for boutique retail, professional offices, or lower-traffic storefronts. One active door panel flanked by fixed glass panels maximizes the open, airy appearance.
- Double entry with sidelites: The workhorse for mid-volume retail — two active door panels provide egress capacity and accessible entry width without a vestibule.
- Double entry with sidelites and transom: Adds height drama and brings in more daylight. A strong choice for showrooms, restaurants, or any space where ceiling height is a selling feature.
- Grand entrance with transom: Best for flagship retail, hotel lobbies, or anchor tenants. Floor-to-ceiling glass with a structural transom bar commands attention from the street and maximizes natural light penetration into deep floor plates.
Every configuration should be evaluated against your local fire marshal's egress requirements and ADA clearance widths (minimum 32 inches clear opening, ideally 36 inches for accessibility compliance).
How Do Wind Load and Impact Requirements Affect Storefront Specification in Florida?
Florida has some of the strictest fenestration codes in the country, and retail build-outs are not exempt. The Florida Building Code requires that all exterior glazing systems in wind-borne debris regions — which covers most of peninsular Florida and all coastal counties — meet specific missile-impact and pressure ratings.
What this means for your storefront specification:
- The aluminum frame must be engineered to resist both positive (wind push) and negative (suction) pressure loads calculated from the building's risk category, height, and exposure category.
- Glass must be laminated or protected by an impact-rated film system tested to FBC standards.
- The attachment to the structural substrate (concrete block, steel stud, or CMU) must follow engineered anchor calculations.
Gladiator's storefront systems are engineered for Florida's wind-load environment and ship with documentation that supports the permitting process — reducing back-and-forth with the building department. If you're building in Jacksonville, Miami-Dade, or anywhere along Florida's Gulf or Atlantic coast, impact compliance isn't optional; it's day one.
What Are the Real Cost Drivers for a Retail Storefront Build-Out?
Understanding what actually moves the price needle helps builders, architects, and tenants budget accurately and avoid scope surprises.
| Cost Driver | Low-Cost Direction | Higher-Cost Direction |
|---|---|---|
| Linear footage of framing | Compact single-bay opening | Wide multi-bay or corner wrap |
| Glass specification | Standard IGU, non-impact zone | Impact laminated IGU, low-e coated |
| Entry door count | Single active door | Double door + ADA auto-operator |
| Finish | Standard mill or bronze anodized | Custom RAL powder coat, multi-tone |
| Supply chain model | Factory-direct (no dealer markup) | Dealer/distributor network (added margin) |
| Shipping | Free nationwide (factory-direct) | Freight billed separately (dealer model) |
Factory-direct procurement is the single largest lever most commercial clients overlook. When a storefront system ships directly from the manufacturer — with no regional distributor or dealer adding margin — the savings on a typical build-out run in the thousands, not hundreds. Gladiator ships nationwide at no freight charge, and our 15-year warranty transfers with the building.
How Does a Storefront System Integrate with the Rest of the Building Envelope?
A retail storefront doesn't exist in isolation — it has to coordinate with the floor slab, the structural header or lintel above, the weatherproofing membrane, and any adjacent curtain wall or cladding system. Key integration points to plan early:
- Sill condition: The threshold must be flush or ADA-ramped, waterproofed, and coordinated with the interior flooring finish. Low-profile sill extrusions simplify this detail.
- Head condition: The frame head anchors to a structural header. Verify the header's depth and any deflection allowance before fabrication — frame tolerances are typically ±¼ inch.
- Weatherseal: The perimeter joint between the storefront frame and the building substrate must be flashed and sealant-applied per the glazing contractor's GANA guidelines. This is where most field failures originate.
- Adjacent operable openings: If your design incorporates operable elements — such as bi-fold doors for indoor-outdoor dining areas or sliding glass doors for rear or side access — coordinate frame depths and sill heights early so all systems land at the same finish floor level.
What Should I Ask a Storefront Manufacturer Before I Order?
Before committing to a system, get clear answers on these six questions:
- Is the thermal break standard or an upgrade on your base system?
- What is the whole-assembly NFRC U-factor and Solar Heat Gain Coefficient (SHGC)?
- Is the system rated for my jurisdiction's design wind pressure?
- Does the system carry Florida Product Approval (NOA or FL Number) for impact glazing?
- What is the lead time from order to ship, and what does freight cost?
- What does the warranty cover, and does it transfer to a new building owner?
Gladiator answers every one of these before you place an order — and our team will walk through your floor plan, opening dimensions, and local code requirements with you at no charge. Whether you're a first-time retail tenant, a regional developer, or a commercial glazing contractor, the spec conversation is part of the service.
Builders and contractors who handle repeat commercial volume can also explore our reseller and wholesale program for preferred pricing and dedicated project support.
Ready to Spec Your Retail Storefront?
A well-specified retail storefront system pays back its cost in energy savings, reduced maintenance, and the brand equity of a glass-forward facade that stops foot traffic. Start with the right frame, the right glass, and a manufacturer who engineers for Florida's climate from the ground up.
Get a factory-direct quote from Gladiator Window & Doors — send us your opening dimensions, location, and any code requirements, and we'll turn around a detailed specification and price within one business day. No middleman. No freight charge. Fifteen-year warranty, standard.
