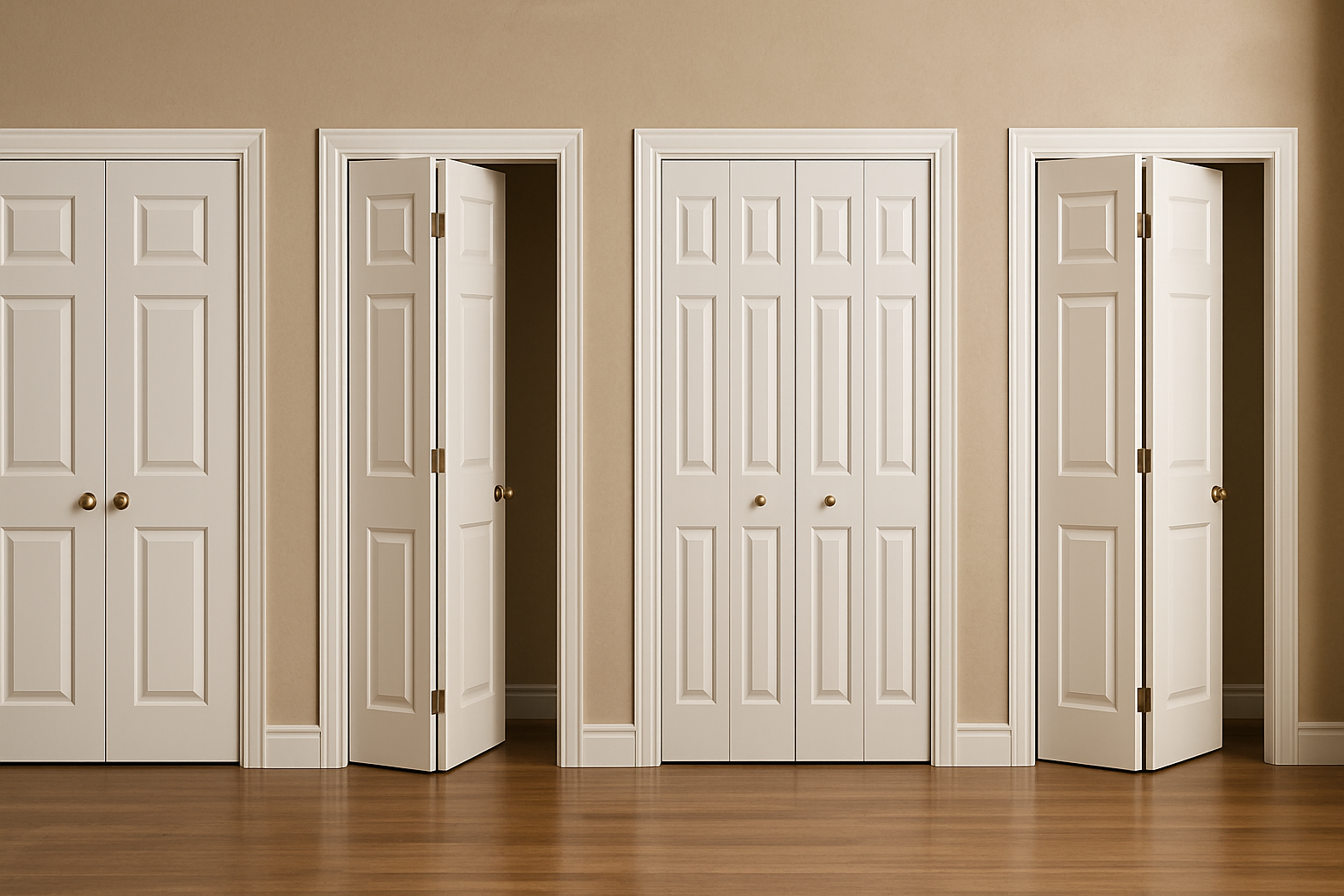

Understanding Standard Bi-Fold Door Dimensions
Bi-fold door configurations have become quintessential architectural elements in contemporary residential and commercial design. These sophisticated portal systems maximize aperture width while minimizing floor space consumption during operation. Understanding standardized dimensional parameters ensures optimal selection for diverse applications ranging from residential patio transitions to expansive commercial storefronts.
Standard bifold door sizes typically range from 24 inches to 96 inches in width, with heights spanning 80 to 96 inches. However, these baseline measurements represent only the foundation of comprehensive dimensional considerations. Width increments commonly follow 12-inch intervals, accommodating modular construction practices prevalent in modern building methodologies.
Common Width Specifications
Width determination fundamentally influences operational dynamics and aesthetic proportionality. Single-panel configurations begin at 24 inches, progressing through 30, 32, and 36-inch variations. Multi-panel assemblies exponentially expand possibilities, with dual-panel systems spanning 48 to 72 inches, while quadruple-panel arrangements can achieve 96-inch expanses or greater.
Architectural vernacular distinguishes between rough opening dimensions and finished frame measurements. Rough openings typically exceed finished dimensions by 2-4 inches horizontally and vertically, accommodating installation tolerances and structural shimming requirements.
Height Standardization
Vertical dimensions align with conventional ceiling heights and building code stipulations. Standard residential applications utilize 80-inch heights, correlating with 8-foot ceiling configurations. Commercial applications frequently specify 84 or 96-inch heights, accommodating taller interior volumes and enhanced visual proportions.
Contemporary design trends favor floor-to-ceiling installations, creating seamless indoor-outdoor transitions. These applications often require custom height specifications exceeding standard parameters.
Material Considerations and Sizing Impact
Material selection significantly influences dimensional specifications and structural requirements. Aluminum extrusions provide exceptional strength-to-weight ratios, enabling larger panel configurations without compromising operational smoothness. Steel reinforcement systems accommodate supersized installations while maintaining structural integrity under wind load conditions.
"The relationship between material choice and achievable span directly impacts both performance characteristics and long-term durability expectations in high-performance bi-fold installations."
Glass thickness specifications correlate directly with panel dimensions and environmental exposure requirements. Standard residential applications typically utilize 1/4-inch tempered glass, while commercial installations may specify 1/2-inch or laminated configurations for enhanced security and thermal performance.
Frame Profile Dependencies
Frame profile dimensions vary according to manufacturer specifications and performance requirements. Narrow sightline profiles maximize glass area while maintaining structural adequacy. Wider profiles accommodate enhanced weatherstripping systems and thermal break technologies essential for energy-efficient installations.
For projects demanding exceptional weather resistance and thermal performance, Gladiator Window and Doors offers comprehensive bi-fold door solutions engineered to exceed standard building code requirements. Their factory-direct manufacturing approach eliminates third-party markups while delivering custom configurations tailored to specific dimensional and performance criteria.
Installation Clearance Requirements
Proper clearance allocation ensures smooth operational characteristics throughout the door system's lifespan. Horizontal clearances accommodate thermal expansion and contraction cycles while preventing binding during extreme temperature variations.
| Opening Width | Recommended Clearance | Panel Configuration |
|---|---|---|
| 48-60 inches | 1/8 inch per side | 2-panel system |
| 72-84 inches | 3/16 inch per side | 3-4 panel system |
| 96+ inches | 1/4 inch per side | 4+ panel system |
Vertical clearances prevent operational interference while accommodating building settlement and structural deflection. Top clearances typically range from 1/8 to 1/4 inch, while bottom clearances vary according to threshold configuration and drainage requirements.
Hardware Space Allocation
Track systems require adequate ceiling or header space for proper installation and operation. Standard track profiles necessitate 4-6 inches of overhead clearance, while heavy-duty commercial systems may require 8-12 inches for proper mounting and adjustment capabilities.
Pivot hardware placement affects panel stacking characteristics and operational clearances. Bottom-rolling systems distribute weight loads while minimizing overhead requirements, particularly beneficial in retrofit applications with limited header space.
Customization Possibilities Beyond Standard Sizes
Contemporary architectural projects increasingly demand non-standard configurations that transcend conventional dimensional parameters. Custom sizing accommodates unique architectural features, historic building constraints, and specialized performance requirements.
Curved track systems enable radius configurations, creating dramatic architectural statements while maintaining operational functionality. These specialized installations require precise dimensional calculations and custom manufacturing capabilities typically unavailable through standard product lines.
Multi-Panel Configuration Strategies
Complex installations often utilize asymmetrical panel arrangements, optimizing traffic flow patterns and furniture placement considerations. Unequal panel sizing creates focal points while maintaining proportional aesthetics across expansive openings.
- Sequential folding patterns minimize stack depth
- Asymmetrical configurations accommodate architectural constraints
- Modular panel systems enable future reconfiguration
- Integrated fixed panels reduce operational complexity
Corner configurations present unique dimensional challenges requiring specialized hardware systems and precise angular calculations. These installations demand expert engineering to ensure proper operation and weatherseal continuity.
Performance Considerations for Size Selection
Larger panel configurations increase wind load exposure, necessitating enhanced structural reinforcement and upgraded hardware systems. Coastal installations particularly benefit from oversized frame profiles and reinforced corner connections designed to withstand extreme weather conditions.
Thermal performance correlates with overall opening size and frame-to-glass ratios. Maximizing glass area enhances natural lighting and view quality while potentially compromising energy efficiency without proper frame thermal break integration.
Frequently Asked Questions About Bi-Fold Door Sizing
What is the maximum width achievable with bi-fold doors? Standard residential systems typically max out around 16-20 feet, while commercial-grade installations can exceed 40 feet with proper engineering and structural support.
Do standard sizes accommodate ADA compliance requirements? Most standard configurations meet ADA guidelines, though specific threshold details and operating force requirements may necessitate custom hardware specifications.
How do standard sizes affect energy efficiency ratings? Larger openings inherently present greater thermal transfer opportunities, making proper frame selection and glass specifications crucial for maintaining energy performance standards.
Selecting appropriate bi-fold door dimensions requires careful consideration of architectural constraints, performance expectations, and long-term durability requirements. Professional consultation ensures optimal configuration selection while avoiding costly installation complications and operational issues.
