What Is the Average Cost of a Large Aluminum Pivot Front Door?

A large aluminum pivot front door typically costs between $4,500 and $18,000, depending on size, glass specification, finish, and whether sidelights or a transom are included. Most single-slab residential pivot doors in the 4-to-6-foot-wide range land between $5,000 and $10,000 factory-direct — a range that encompasses thermal-break aluminum framing, double-pane insulated glass, and the pivot hardware system. Oversized architectural pivots — slabs approaching 4 feet wide by 10 feet tall or taller — push into the $10,000–$18,000 band before optional upgrades.

These numbers reflect a complete, ready-to-install door unit. Pivot doors are not a commodity product; the mechanical complexity of a floor-to-ceiling pivot hinge system, the weight engineering required for heavy glass panels, and the precision of the thermal-break frame all justify pricing well above a standard pre-hung entry door. Treat the investment as architectural hardware, not a home-center purchase.

Browse Gladiator's pivot door collection to see current configurations and factory-direct pricing.

What Size and Glass Options Affect Pivot Door Pricing the Most?

Door height and total slab area are the single biggest pricing levers, followed closely by glass specification. Every additional foot of height adds meaningful cost because it increases both the glass area and the structural demands on the pivot hardware — larger, heavier pivot sets carry a higher price point than standard residential pivots.

On the glass side, the key upgrade decisions are:

• Standard double-pane insulated (IGU): Included in the base price of most factory-direct pivot doors. Gladiator ships 6mm glass as standard, which exceeds the thin 4mm glass common in imported budget systems.
• Triple-pane IGU: Adds roughly 12–20% to the glass cost and is worth considering in colder climates or for California Title 24 compliance in high-performance projects.
• Low-E coating: A moderate add-on — typically $200–$600 for a single large slab — that meaningfully improves whole-door U-factor and solar heat gain control.
• Tinted, frosted, or decorative glass: Custom glass lites can add $500–$2,000+ depending on pattern complexity and overall area.
• Laminated inner pane: Common on floor-to-ceiling pivots for safety glazing compliance; price varies by pane size.

Frame finish is a secondary factor. Matte black and dark grey powder coat are the most popular architectural choices and are priced similarly. Custom RAL colors or anodized finishes are available at a premium and typically require a longer lead time than in-stock configurations.

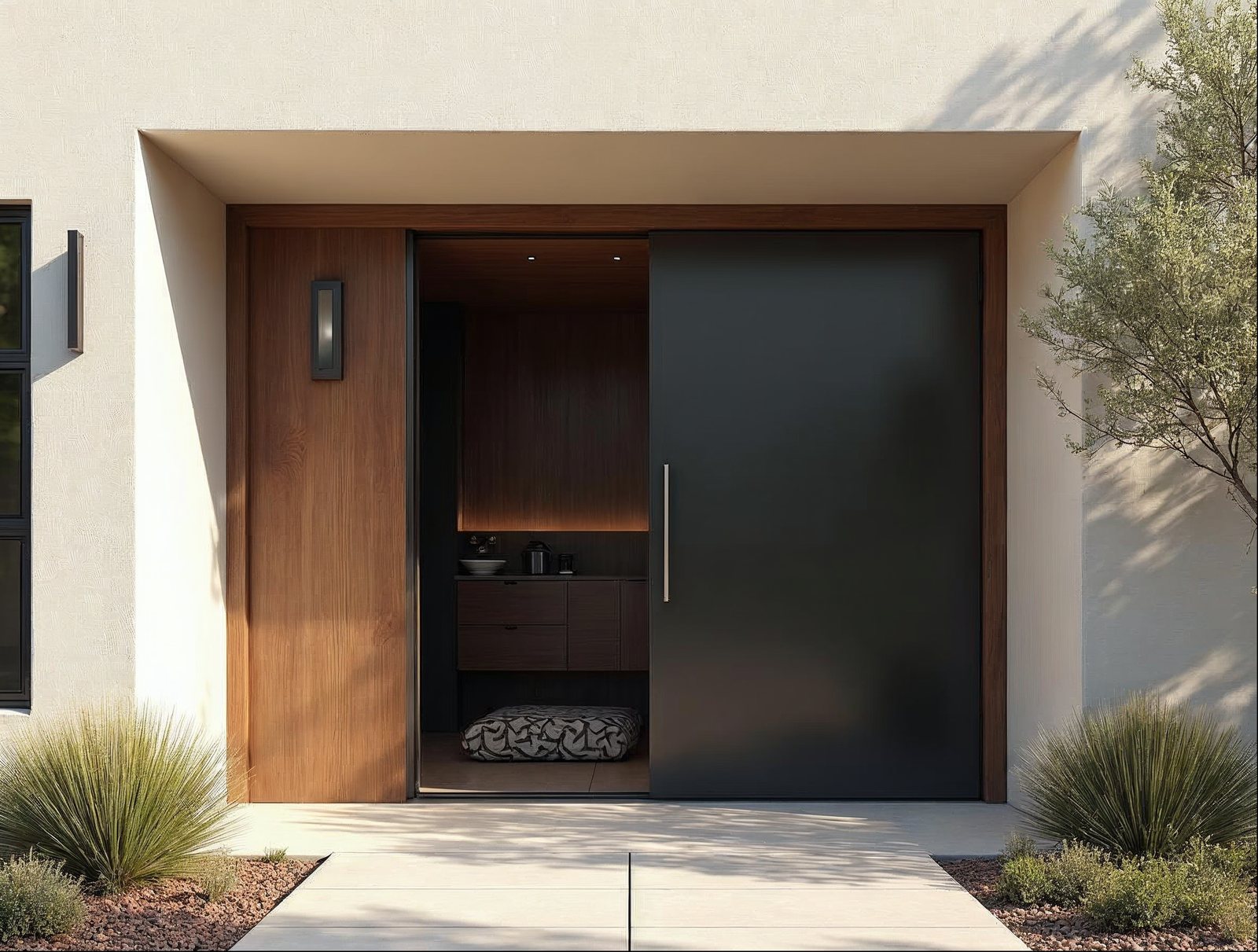

How Does a Pivot Door With Sidelights Affect the Overall Project Cost?

Adding sidelights to a pivot entry system increases the total project cost by roughly $1,500 to $5,000, depending on sidelight width, height, glazing match, and whether the frame assembly is configured as a single unified system or two separate frames. A unified pivot-plus-sidelights assembly — where the frame header and sill run continuously across the opening — commands a premium but delivers a cleaner architectural result and better air infiltration performance than bolted-together independent units.

Key cost factors for sidelight additions include:

• Single vs. double sidelights: A flanking pair costs roughly twice as much as a single sidelight in material, but installation labor is similar, so per-unit cost decreases slightly.
• Operable vs. fixed sidelights: Fixed sidelights are less expensive; operable casement or pivot sidelights add mechanical complexity and cost.
• Matching glass specification: For a seamless look, sidelight glass should match the pivot slab's Low-E coating, tint, and thickness — specifying a mismatch is a common error that creates visual inconsistency and can affect energy performance.
• Total rough opening width: Wider combined openings may require a structural header upgrade, which is a framing cost separate from the door unit itself.

Architects and builders who want to explore full entry system configurations — pivot slab plus flanking glass panels — will find that factory-direct ordering simplifies the process considerably, since a single manufacturer controls the entire frame assembly.

What Is the Price Difference Between a Standard Pivot Door and an Oversized Pivot Entry Door?

The price gap between a standard pivot door (roughly 3–4 ft wide × 8 ft tall) and a true oversized pivot entry door (4–5 ft wide × 10–12 ft tall) is typically $3,000 to $7,000 for comparable quality and specification levels. The jump is not linear — it reflects three compounding cost drivers:

The pivot mechanism itself — a floor-mounted bottom pivot and a top pivot or header pivot — must be engineered for the specific slab weight. Undersizing the pivot hardware on a heavy door is a common failure point in low-cost systems. At Gladiator, pivot hardware is matched to slab weight as part of the factory configuration, not left as a field decision.

If speed matters, check our in-stock doors ready to ship — standard pivot sizes are available for faster delivery than fully custom builds.

How Do Pivot Door Prices Compare Between Factory-Direct and Traditional Distribution Channels?

Factory-direct pivot doors typically cost 20–40% less than equivalent products sold through a traditional dealer-distribution network, for the same specification level. The reason is straightforward: a dealer-distributed product passes through an importer, a regional distributor, and a showroom before reaching the buyer — each tier adds margin. A factory-direct manufacturer like Gladiator eliminates every intermediary step.

The practical impact on a pivot door purchase:

• A $9,000 factory-direct oversized pivot could carry a retail sticker of $12,500–$14,000 through dealer channels at similar specification levels.
• Lead times are often shorter factory-direct, because the order goes straight to the production floor — no dealer order-batching or regional warehouse delays.
• Specification accuracy improves when you work directly with the manufacturer. Dealers sometimes substitute components or simplify specs to hit a price point; a factory order reflects exactly what was specified.
• Warranty claims are simpler with a single point of contact. Gladiator's 15-year warranty is backed by the manufacturer, not re-routed through a dealer who may no longer carry the product.

For builders and architects specifying multiple units, our reseller and wholesale application offers trade pricing that further widens the cost advantage versus retail distribution.

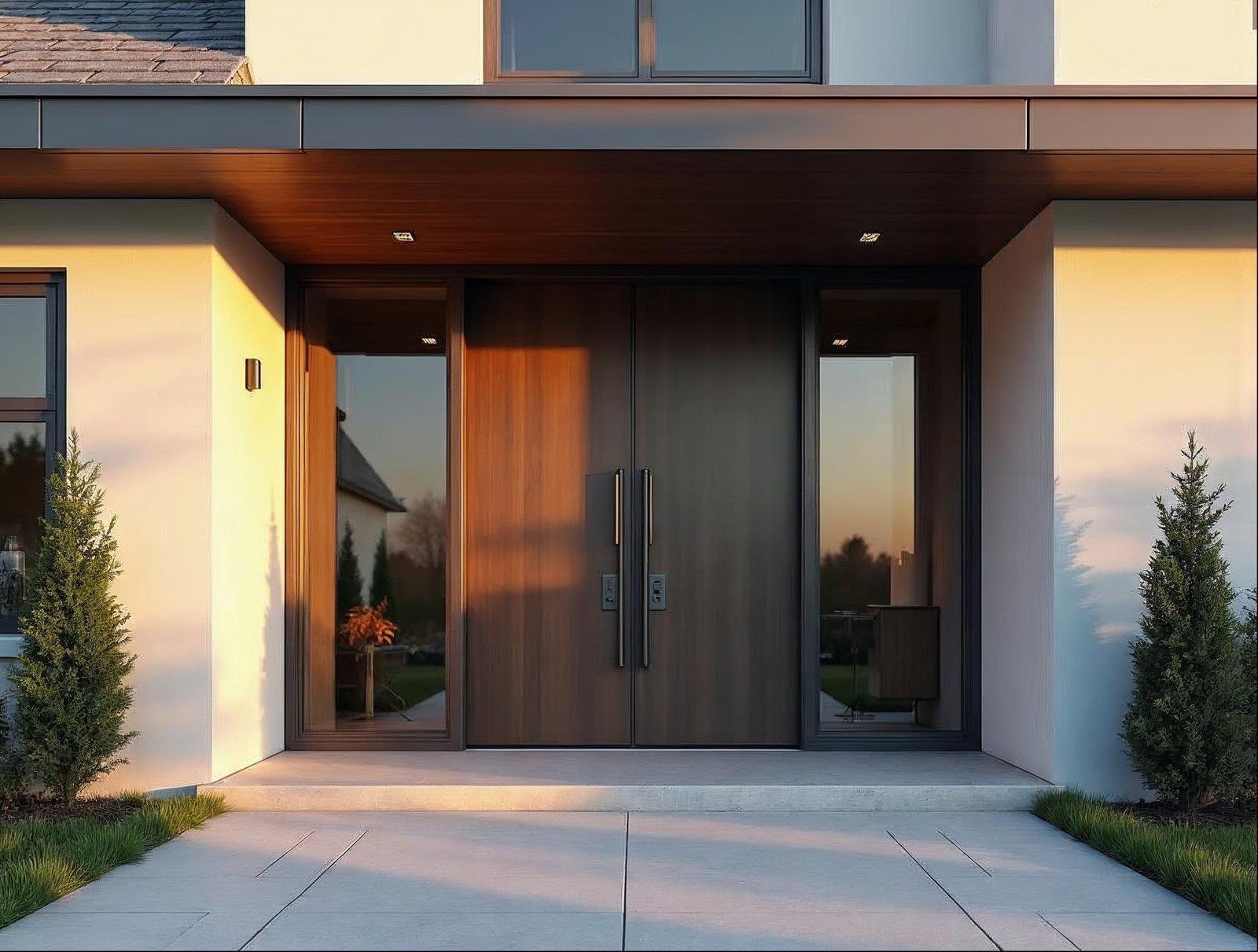

What Is Included in a Pivot Door Purchase — Hardware, Hinges, Frame?

A complete pivot door purchase from Gladiator includes the thermal-break aluminum frame, the insulated glass unit, the pivot hinge system (top and bottom pivot hardware calibrated to the slab weight), and the door slab itself — finished in the selected powder coat or anodized color. In short, everything needed to set the door in the rough opening is included in the unit price.

Here is a breakdown of what is and is not typically included:

• Included: Thermal-break aluminum frame assembly, 6mm insulated glass unit with standard clear Low-E available, top and bottom pivot hardware, weatherstripping and seals, door slab with selected finish, threshold, and basic installation hardware pack.
• Optional add-ons: Smart lock and handle set (lever, pull bar, or flush pull), electronic access control or keypad, transom frame extension, sidelight frame panels, motorized operation systems.
• Not included: Structural rough opening framing, installation labor, site-specific finishing materials (trim, casing), or permitting fees.

Handle and lock hardware are the most common add-on decisions. A pivot door's scale demands hardware that is proportionally sized — a standard residential lever handle looks undersized on a 10-foot slab. Architectural pull bars or flush pulls designed for heavy pivot doors are available as factory-installed options, keeping everything coordinated before the door ships.

Free nationwide shipping is included on Gladiator pivot door orders, which is a meaningful line item on a door that can weigh 400 pounds or more crated.

Ready to configure your entry? Explore the full pivot door lineup or pair your pivot with complementary sliding glass doors for a cohesive architectural package throughout your project.

Get a precise quote for your pivot door project. Share your rough opening dimensions, glass preference, and finish, and our team will provide a factory-direct price — no showroom visit, no sales pressure. Start here →
