By the Gladiator Window & Doors Technical Team — factory-direct aluminum door specialists serving contractors, builders, architects, and dealers nationwide.

A pivot front door with glass transforms an entry from functional to architectural — but speccing one correctly requires a clear understanding of glass configurations, sidelight options, rough-opening planning, and hardware systems. This guide answers the questions trade buyers ask most often, with the concrete details you need to move from design concept to purchase order.

1. What glass configurations are available for large aluminum pivot front doors?

Large aluminum pivot front doors can be ordered with full-lite, half-lite, or divided-lite glass configurations, with single, double, or triple glazing options depending on thermal and acoustic requirements. Gladiator pivot doors use thermal-break aluminum frames as standard and are glazed with 6mm tempered or laminated glass — a heavier, more optically clear spec than the 4mm or 5mm glazing common in lighter residential systems.

• Full-lite: Glass runs floor-to-ceiling within the slab, maximizing transparency and the sense of interior-to-exterior connection. The most requested configuration for contemporary and modern homes.
• Half-lite: Glass occupies the upper half of the slab. Preferred where privacy at eye level is desirable — hospitality entries, street-facing residences.
• Divided-lite (grid): Glass is subdivided by structural or simulated mullions for a more traditional or transitional aesthetic.
• Frosted / obscure glass: Available as a privacy option on full-lite and half-lite configurations. Common on side-entry or urban-facing doors.
• Low-E coatings: Applied to reduce solar heat gain and improve the overall U-factor of the assembly — standard on thermally broken systems and important for California Title 24 energy compliance.

Glass unit thickness and coating selection have a direct impact on the rated U-factor and SHGC of the completed assembly. Always confirm these with the glazing schedule before final submittal.

2. Can a pivot front door be ordered with sidelights as a combined unit?

Yes — Gladiator pivot doors can be configured with fixed sidelights on one or both sides as a single factory-engineered unit, sharing a common frame so the rough opening, header, and installation are planned as one assembly rather than three separate elements. This is the standard trade approach for monumental entries: a wide pivot slab flanked by full-height fixed glass panels creates a seamless glass wall at the entry without the operational complexity of additional swinging or sliding panels.

Key planning points for combined pivot-plus-sidelight units:

• Frame continuity: The sidelight frames are integrated with the pivot door jamb, so the thermal-break aluminum profile is consistent across the entire assembly.
• Rough opening planning: The combined unit rough opening must account for the pivot slab width, both sidelight widths, and the frame/jamb thickness on each side. Gladiator provides unit-specific rough-opening drawings with every order — confirm before framing.
• Header load: A structural header must be sized for the total combined span. On assemblies exceeding 10 ft, coordinate with the structural engineer of record.
• Single-point installation: Factory-unitized assembly simplifies on-site installation: one shimming operation, one flashing sequence, one air-seal perimeter.

Dealers and builders working at volume can pre-qualify standard combined-unit sizes and maintain them as a repeatable spec across projects — a significant scheduling advantage. Check our doors ready to ship now page for combined pivot-sidelight assemblies currently in stock.

3. What are the most popular pivot door with glass design options for modern homes?

The three most-specified pivot front door with glass design combinations for modern residential and light-commercial projects in 2026 are: full-lite single slab with flanking fixed sidelights in matte black aluminum, oversized full-lite slabs (48–60 in. wide) in dark grey RAL 7016, and minimal-frame full-lite slabs with floor-to-ceiling glass in white RAL 9010 for coastal contemporary settings.

Most-Requested Design Combinations

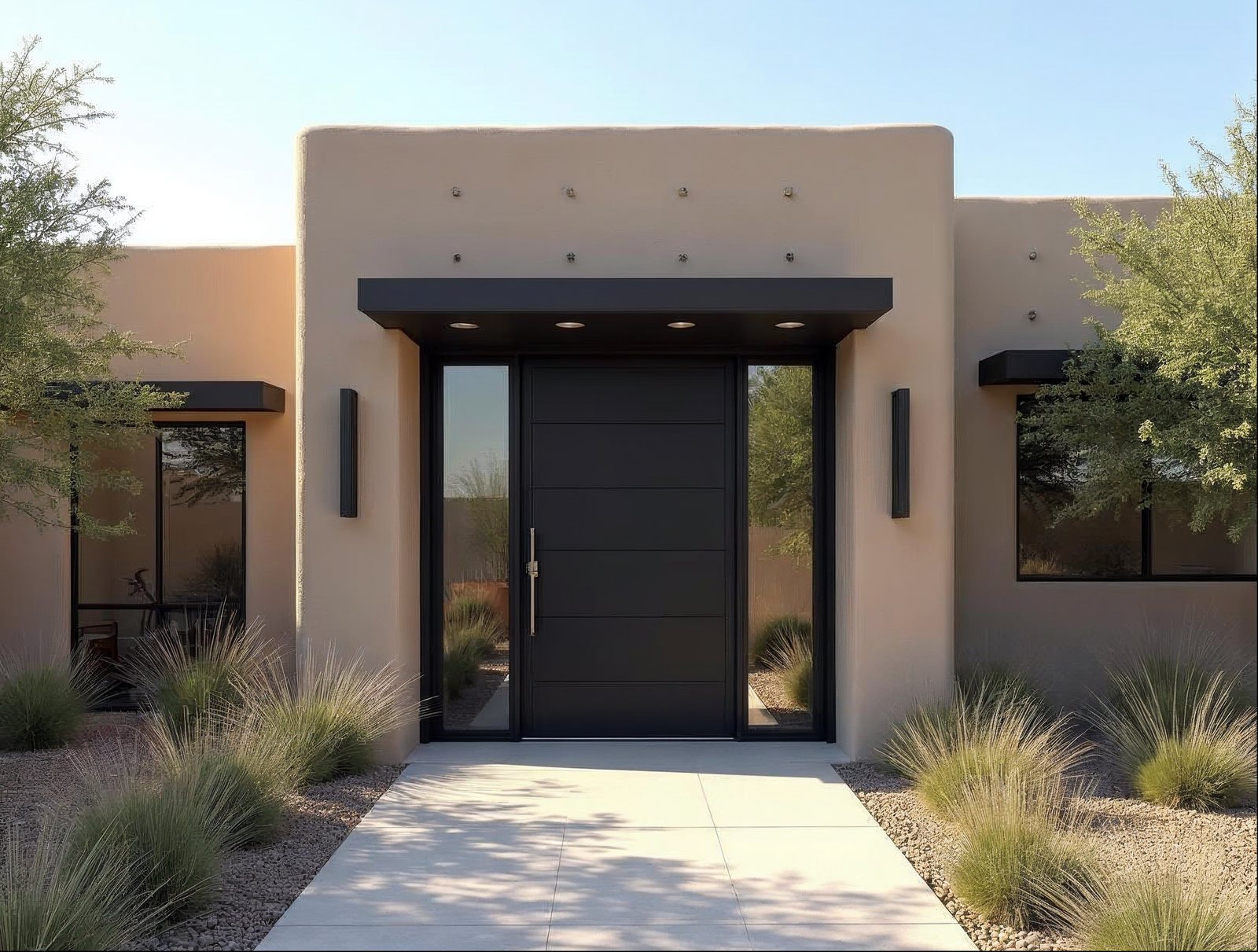

• Matte black frame + clear low-E glass + fixed sidelights: The dominant spec for new construction modern homes. Works across climates, pairs with dark exterior cladding materials, and presents as architecturally resolved from the street.

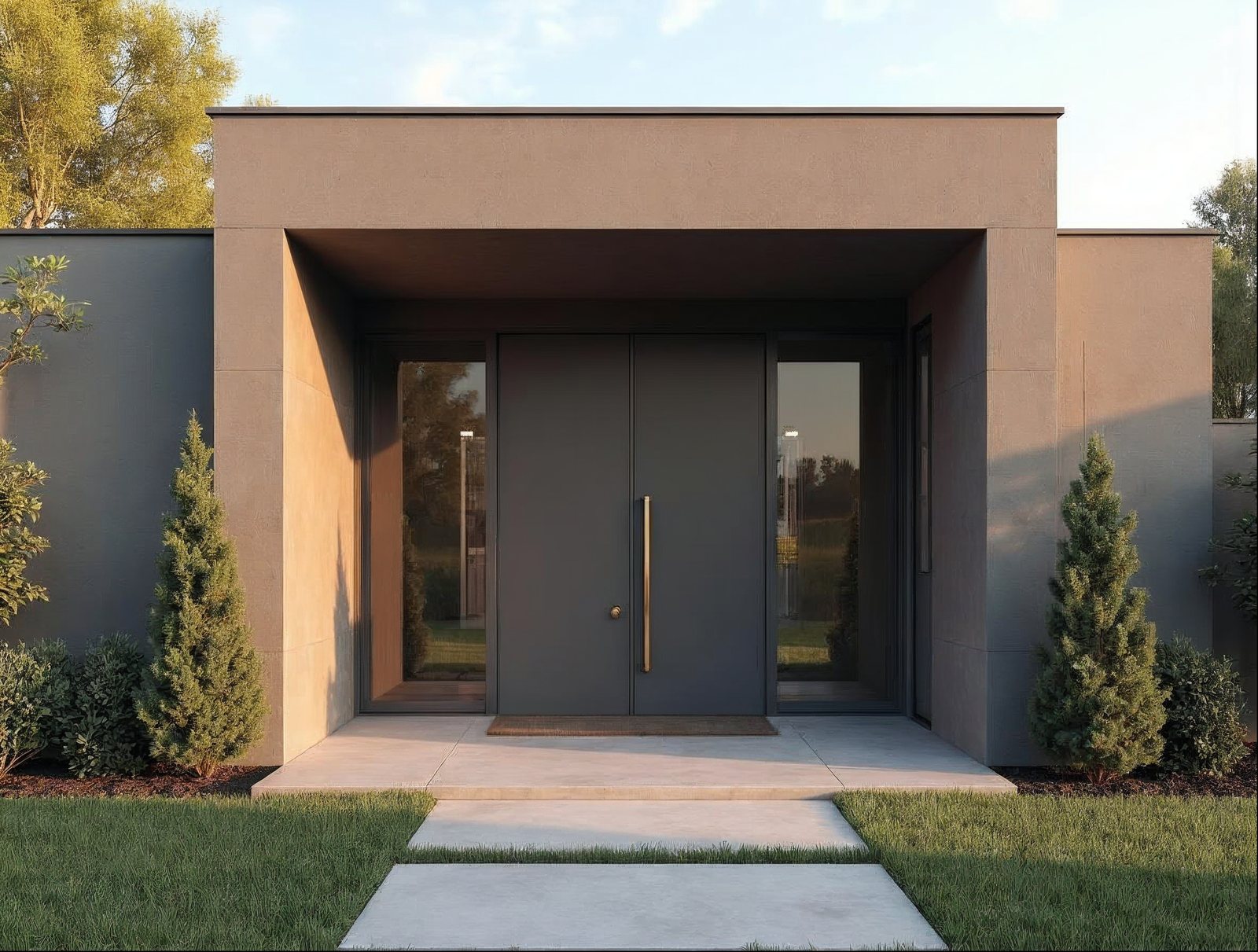

• Dark grey RAL 7016 + frosted inner glass + sidelights: Frequently specified for urban infill projects where street privacy is needed without sacrificing natural light at the entry.
• White RAL 9010 + clear glass + sidelights: Specified for coastal contemporary, Scandinavian-influenced, or all-white exterior palettes. The white frame reads as seamless against light stucco or painted cladding.
• Bronze anodized + warm-tinted glass + no sidelights: A more traditional-transitional profile that performs well on craftsman or Spanish-revival adjacent exteriors.
• Oversized single slab (≥ 48 in. wide, ≥ 96 in. tall) + full-lite: The architectural statement piece. Frequently used on custom homes, high-end spec builds, hospitality lobbies, and design-forward retail.

Gladiator stocks a selection of the most popular pivot door configurations. Browse in-stock pivot doors ready to ship to see what's available for faster project turnaround.

4. How wide can a pivot entry door with sidelights span?

A Gladiator pivot entry door with sidelights can span up to approximately 16–20 feet total when the pivot slab is paired with two flanking fixed sidelights, with individual pivot slab widths up to 60 inches and slab heights up to 120 inches or beyond in made-to-order configurations. The pivot mechanism itself allows for large, heavy slabs that would be impractical on a conventional butt-hinged door — because the pivot distributes the slab's weight vertically through a floor and ceiling (or header) pivot point rather than hanging it from side jamb hinges.

Pivot Door + Sidelight Span Reference Table

Configuration	Pivot Slab Width	Sidelight(s) Width	Approx. Total Unit Width	Typical Application
Single slab, no sidelights	36–48 in.	—	36–48 in.	Standard modern entry
Single slab + one sidelight	36–48 in.	18–24 in.	54–72 in.	Asymmetric modern entry
Single slab + two sidelights	42–60 in.	18–30 in. each	78–120 in. (6.5–10 ft)	Monumental residential entry
Oversized single slab + two wide sidelights	54–60 in.	24–36 in. each	102–132 in. (8.5–11 ft)	Custom home / hospitality lobby
Made-to-order wide slab + sidelights	Up to 72 in.	Custom width	Up to ~200 in. (16+ ft)	Commercial / architectural landmark

Note: Spans beyond 10 ft total require a structural header review by the engineer of record. Gladiator provides unit-specific rough-opening documentation for every configuration. Contact our trade desk for header and structural framing guidance on oversized assemblies.

5. What hardware and pivot hinge systems are standard on large glass pivot doors?

Gladiator large glass pivot doors use a floor-to-ceiling pivot system with a recessed floor pivot, a concealed top pivot bearing at the head frame, and an intermediate support point for slabs taller than 96 inches — all engineered to handle the slab weight without sagging or binding over time. Hardware is integrated into the thermal-break aluminum frame system rather than surface-mounted, which is critical for weather performance and long-term operation on exterior pivot doors.

Standard Hardware Components

• Floor pivot box: Recessed into the substrate at the pivot point. Must be set into a structural sub-floor pad — coordinate with the concrete or framing contractor before pour or sheathing. This is the most commonly missed rough-in detail on pivot door installations.
• Top pivot plate: Concealed within the head frame. Carries vertical load and provides lateral stability at the top of the slab.
• Multipoint locking: Three-point or five-point lock systems are standard on exterior pivot doors. Locking engages at the top, bottom, and strike-side jamb simultaneously for a consistent weatherseal compression across the full perimeter.
• Soft-close / controlled close: Available on most pivot configurations. Particularly important on heavy full-lite slabs where an uncontrolled swing would create a safety or damage risk.
• Long-bar pull hardware: Through-bolt pull bars in matching aluminum or stainless finish. Standard lengths are 24 in. and 36 in.; custom lengths available on made-to-order slabs.
• Weatherstripping: Continuous brush-seal or compression gasket at all four slab edges. The pivot system does not use a traditional door sweep — the perimeter gasket is compression-engaged by the multipoint lock.

All hardware on Gladiator pivot doors is covered under our 15-year warranty alongside the frame and glazing system — a single-source warranty that simplifies liability for builders and dealers.

6. What should architects and designers spec when ordering a pivot door with full glass panels?

When specifying a pivot front door with glass for a project submittal, architects and designers should document six items at minimum: overall unit dimensions (slab + sidelights), rough-opening dimensions with tolerances, frame finish and glazing specification (glass type, coating, and U-factor/SHGC targets), hardware selection, pivot point location relative to slab width, and structural header requirement. Missing any one of these at the RFI stage will cause a revision cycle that delays the order.

Full Specification Checklist for Pivot Door with Glass & Sidelights

• Unit configuration: Slab-only / slab + one sidelight / slab + two sidelights. Note sidelight fixed or operable.
• Slab dimensions: Width × height (e.g., 48 in. W × 108 in. H). Note that pivot slabs are measured as the slab itself, not including frame.
• Rough opening: Gladiator provides RO specifications per unit — request the RO drawing before framing. Do not frame to guesswork.
• Frame finish: Matte black / dark grey RAL 7016 / white RAL 9010 / bronze anodized. Consistent across slab and sidelight frames.
• Glass specification: Tempered vs. laminated; clear vs. low-E vs. frosted; single vs. double vs. triple glazed. Gladiator standard is 6mm tempered with low-E as the energy-efficient baseline.
• U-factor / SHGC targets: Required for California Title 24 compliance submittals. Confirm NFRC-rated assembly values with Gladiator's trade desk at order stage.
• Pivot offset: Standard center pivot or offset pivot (pivot point positioned off-center to create unequal active/passive portions). Affects slab balance, swing arc, and clearance requirements.
• Swing direction and handedness: Confirm in-swing vs. out-swing and which side the pivot is on — this determines floor pivot box location.
• Hardware finish: Match pull bar and lock trim to frame finish or specify contrasting material (e.g., brushed stainless on matte black frame).
• Header / structural note: For combined units wider than 8 ft, include a note on the structural drawings requiring a LVL or steel header sized for the full unit span.
• Lead time vs. in-stock: Standard Gladiator pivot door sizes are kept in stock and ship significantly faster than made-to-order production. For fast-track projects, cross-reference your spec dimensions against our in-stock pivot door inventory before committing to a schedule.

Comparing Pivot Door System Archetypes

Specification Factor	Gladiator Aluminum Pivot (Factory-Direct)	Traditional Wood-Clad Pivot Systems	Imported Thin-Frame Aluminum Systems
Frame material	Thermal-break aluminum	Wood core with aluminum or composite cladding	Aluminum (thermal break varies)
Standard glass thickness	6mm tempered / laminated	Typically 4–5mm	Typically 4–5mm
Sidelight integration	Factory-unitized, single RO	Often site-assembled, separate RO	Varies; often field-fabricated
Finish options	4 powder-coat / anodized finishes	Paintable wood; limited aluminum finish options	Limited standard colors; upcharges for custom
Pricing model	Factory-direct, no dealer markup	Dealer network; multiple markups	Importer + dealer margin stack
Lead time (standard sizes)	In-stock sizes ship faster; made-to-order lead times vary	Typically 12–20+ weeks	Typically 10–18+ weeks
Warranty	15 years, single-source	Varies; wood and hardware often separate warranties	Varies; often limited
Shipping	Free nationwide, all 50 states	Freight billed separately; regional limits common	Port-of-entry + domestic freight
Trade / wholesale pricing	Reseller accounts available; apply online	Dealer programs vary widely	Typically importer-only accounts

Ordering Process for Trade Buyers

Gladiator's ordering process for pivot doors is designed for contractors, dealers, and architects working on production schedules — not retail one-at-a-time transactions. The workflow:

1. Apply for a trade account: Apply for a Reseller & Wholesale Account to unlock trade pricing and direct access to our technical team.
2. Check in-stock availability first: Standard pivot door sizes are stocked at our Jacksonville facility and ship faster than made-to-order. See what's ready to ship now before placing a custom order.
3. Submit your spec sheet: Provide unit dimensions, configuration, finish, glass spec, and swing direction. Our trade desk returns a rough-opening drawing and quote — typically within one business day for standard configurations.
4. Confirm header and rough-opening details: Review the RO drawing with your framing contractor before wall framing. Changes after framing are costly.
5. Place order and schedule delivery: Factory-direct means no intermediary delays. Freight is included — no surprise shipping invoices.

Also explore the full Gladiator pivot door collection for the complete range of slab sizes, finishes, and glass options. For projects that also include patio access, consider pairing with aluminum bi-fold doors or sliding glass doors in matching finishes for a fully coordinated aluminum envelope.

---
