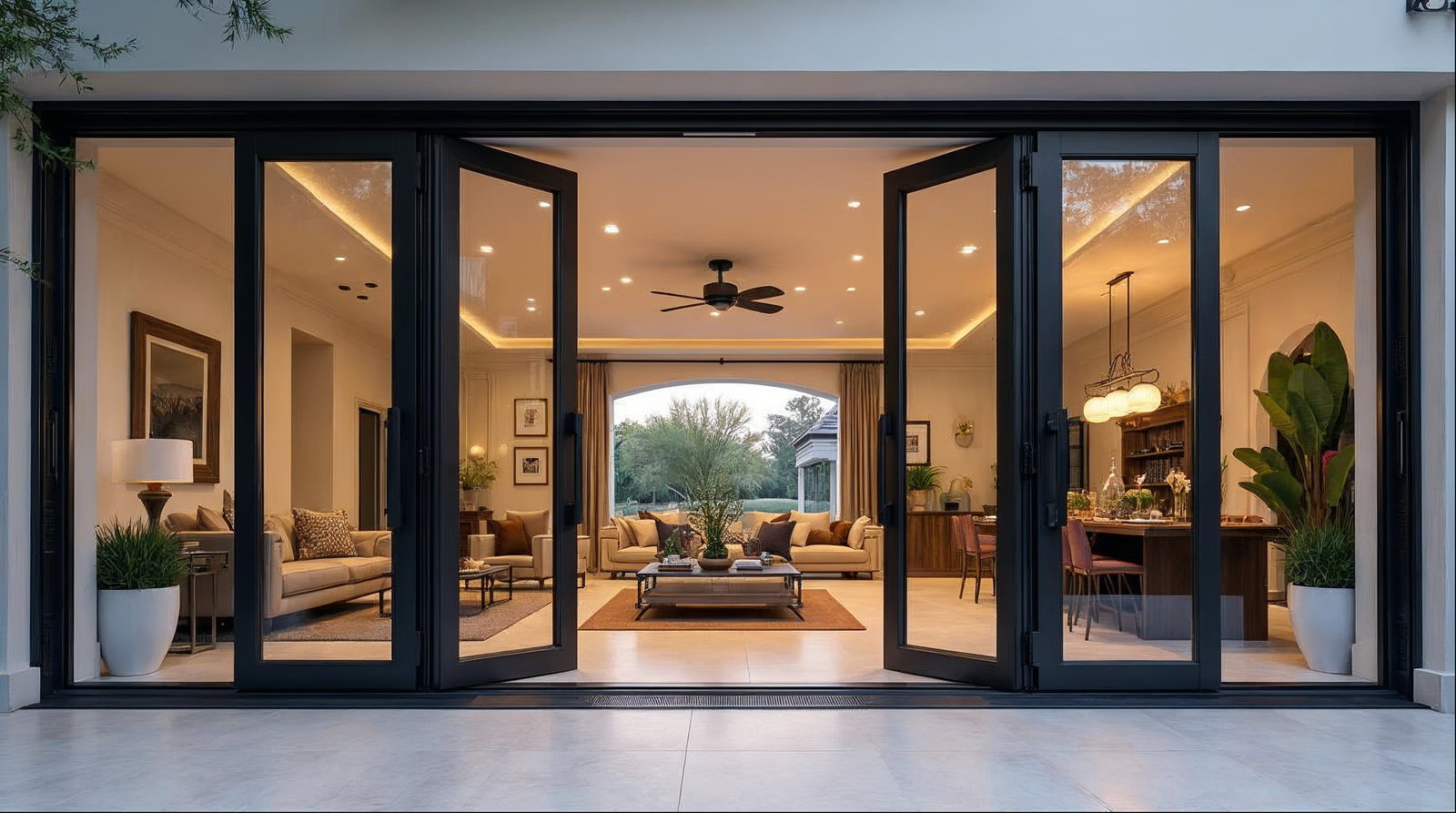

What exactly are bi-fold doors and how do they work?

Bi-fold doors — also called folding or accordion doors — work by hinging multiple panels together so they fold in a zig-zag stack to one or both sides of an opening, rather than swinging outward or sliding flat. Each panel is connected to its neighbor by a continuous hinge along the full vertical edge. When you push or pull the lead panel, every linked panel folds in sequence until the entire wall of glass collapses neatly into a compact stack, leaving the opening fully clear.

It is one of the most dramatic transformations you can make to a home: a solid wall of glass becomes an open-air passage in seconds. That is why Gladiator's bi-fold door systems are among our most-requested products for indoor-outdoor living spaces in Florida and across the country.

What are the main components that make a bi-fold door operate?

A bi-fold door system has four core components that work together to allow smooth, repeatable operation:

• Panels: Individual glass-filled aluminum frames, typically 24–36 inches wide each. Standard configurations range from 2 panels up to 12 or more, covering openings from roughly 6 ft to 36 ft wide.
• Top track: A continuous aluminum extrusion spanning the full opening width. Roller carriages ride inside this track, carrying the weight of the panels so operation stays effortless regardless of panel count.
• Bottom track: A low-profile threshold guide that keeps panels aligned and prevents lateral drift. Gladiator uses a flush, low-profile track profile designed to minimize trip hazards — an important consideration for Florida builds where indoor-outdoor flow is constant.
• Hinges: Heavy-duty multi-point hinges connect adjacent panels along their full height. In a premium aluminum system like Gladiator's, these are stainless-steel or aluminum alloy and rated for tens of thousands of open-close cycles.

The lead panel — the one you actually grab — also carries the locking hardware: typically a multi-point locking bar that engages at the top, middle, and bottom of the frame simultaneously for a weather-tight, secure seal.

How does the top-hung track system support the panels?

In a top-hung bi-fold system, every panel is suspended from rolling carriages that run inside the head track — meaning the bottom track carries no weight and purely guides alignment. This is the preferred configuration for architectural-grade installations because it keeps the threshold profile minimal and eliminates floor-level binding over time as a building settles.

Each carriage is attached to the top corner of a panel. As panels fold, the carriages glide along the track and bunch together toward the stack side. Precision-machined bearings inside the carriages are what make a 30-foot wall of glass feel light to the touch. Cheap imported systems often use plastic rollers that degrade in UV and humidity — exactly the conditions Jacksonville and coastal Florida deliver year-round. Gladiator uses commercial-grade aluminum carriages with stainless-steel ball bearings rated for high-cycle, high-humidity environments.

How do bi-fold doors stack — and which direction should they open?

Panels can stack to the left, to the right, or split in the middle and stack to both sides ("center-split" or "bi-parting" configuration). Here is how to choose:

• Single-stack (all panels to one side): Best for openings up to about 20 ft where you want the maximum clear span on one side. Ideal when a wall, column, or feature on the other side would block a stack anyway.
• Center-split (even panels each side): Best for wide openings — 20 ft and beyond — because it halves the stack depth on each side and creates a natural centered entry point. A 10-panel system, for example, splits into two stacks of 5 panels.
• Outswing vs. inswing: Panels fold either toward the interior or toward the exterior. Outswing keeps your interior floor plan unobstructed; inswing protects the stack from rain but requires clear interior floor space. In Florida, outswing is more common for patio and pool openings.

Your structural opening, slab edge, and landscaping will all influence which direction makes the most practical sense. Our team walks every customer through this during the custom-quote process.

How do bi-fold doors handle Florida's hurricane and impact requirements?

This is one of the most important questions for any Florida homeowner or builder, and the answer lives in the glass and the frame together. A bi-fold door earns impact approval through:

• Laminated impact glass: Typically a 6 mm or thicker laminated unit with a PVB interlayer. When struck, the glass cracks but stays bonded to the interlayer, preventing penetration — the core requirement of Florida's Miami-Dade and TAS 201/202/203 protocols.
• Thermally broken aluminum frames: Gladiator's frames use a polyamide thermal break between the interior and exterior aluminum faces. This not only improves energy performance (lower U-factor) but also contributes structural rigidity that supports impact ratings.
• Multi-point locking: A single-point lock creates stress concentrations at one location. Multi-point locking distributes load across the full panel height, which is essential to passing large-missile impact testing.

Always verify the specific product's Notice of Acceptance (NOA) or Florida Product Approval number before specifying for a permitted project. Gladiator provides full documentation for every system we manufacture.

How does bi-fold door glass affect energy efficiency?

The glass unit is the single largest driver of thermal performance in any bi-fold system. Key specs to evaluate:

• U-factor: Measures total heat transfer through the whole door assembly (not just the glass center). A thermally broken aluminum bi-fold system should achieve a whole-door NFRC U-factor well below 0.40 — competitive with premium wood-clad folding systems at a significantly lower price point when bought factory-direct.
• Solar Heat Gain Coefficient (SHGC): Critical in Florida. A low-E coating on the inner glass lite reduces SHGC without sacrificing visible light transmission (VT). For south- and west-facing openings in Jacksonville, targeting an SHGC of 0.25 or lower is a smart starting point.
• Glazing thickness: Gladiator's standard is 6 mm glass (either monolithic laminated for impact, or insulated laminated for maximum thermal performance). Thicker glass also attenuates sound — relevant for urban or pool-adjacent applications.

If you are also considering window upgrades alongside your folding doors, our folding passthrough windows use the same aluminum and glass platform and integrate cleanly into a unified façade design.

How do bi-fold doors compare to sliding glass doors for the same opening?

The right choice depends on two things: how much clear opening you want and how much floor/deck space you have at the stack end.

Factor	Bi-Fold Doors	Sliding Glass Doors
Clear opening	Up to ~95% of rough opening width	Up to ~50% (one panel always covers the other)
Stack space required	Yes — panels stack in depth (12–18 in per stack)	Minimal — panels slide flat behind each other
Weather seal	Excellent with multi-point lock engaged	Excellent — fewer seam intersections
Best for	Maximum open-air connection, wide spans	Sleek, minimal-profile access, tight deck edges
Typical span range	6 ft – 36 ft+	6 ft – 30 ft (multi-panel)

Both systems are available factory-direct from Gladiator. Explore our sliding glass door collection if you want to compare side by side before deciding.

What does bi-fold door installation involve?

Installation complexity scales with panel count and opening width, but the core steps are consistent:

1. Rough opening prep: The structural header must be engineered to carry the full load of suspended panels — larger systems can weigh several hundred pounds. In Florida concrete-block or CBS construction, the lintel detail is critical.
2. Sill and threshold: A level, waterproofed sill is essential. For outswing panels at a pool or patio, a sloped exterior sill directs water away from the threshold.
3. Track installation: Head and sill tracks are set, leveled, and anchored into the structural framing. The head track carries the panel weight; precision here determines how smoothly the system operates for decades.
4. Panel hanging and adjustment: Panels are hung from the carriages, connected via hinges, and fine-tuned for plumb, level, and equal reveal. Each carriage has micro-adjustment capability.
5. Sealing and weatherstripping: Perimeter seals, panel-to-panel seals, and the bottom sweep are all set to achieve the rated air and water infiltration performance.

Gladiator ships every system with full installation documentation and direct access to our technical support team — something dealer-network brands simply cannot offer.

Is factory-direct pricing really different for bi-fold doors?

Yes — meaningfully so. Dealer-network brands build a distributor margin and a dealer margin into every price. On a large architectural bi-fold system, those combined markups routinely add 25–40% to the cost of the product itself, before installation. Because Gladiator manufactures in Jacksonville and ships direct to your job site nationwide with free shipping, that margin stays in your project budget. Our systems also carry a 15-year warranty — longer than most dealer-network offerings — because we stand behind what we build without a middleman in between.

For builders and architects managing multiple projects, our reseller and wholesale program offers additional trade pricing and priority lead times.

Ready to spec your bi-fold door system?

Understanding how bi-fold doors work is the first step. The next is getting a system specced exactly for your opening, your climate, and your budget. Browse Gladiator's bi-fold door systems or reach out to our team directly for a free custom quote — no pressure, no middleman, just factory-direct expertise.
