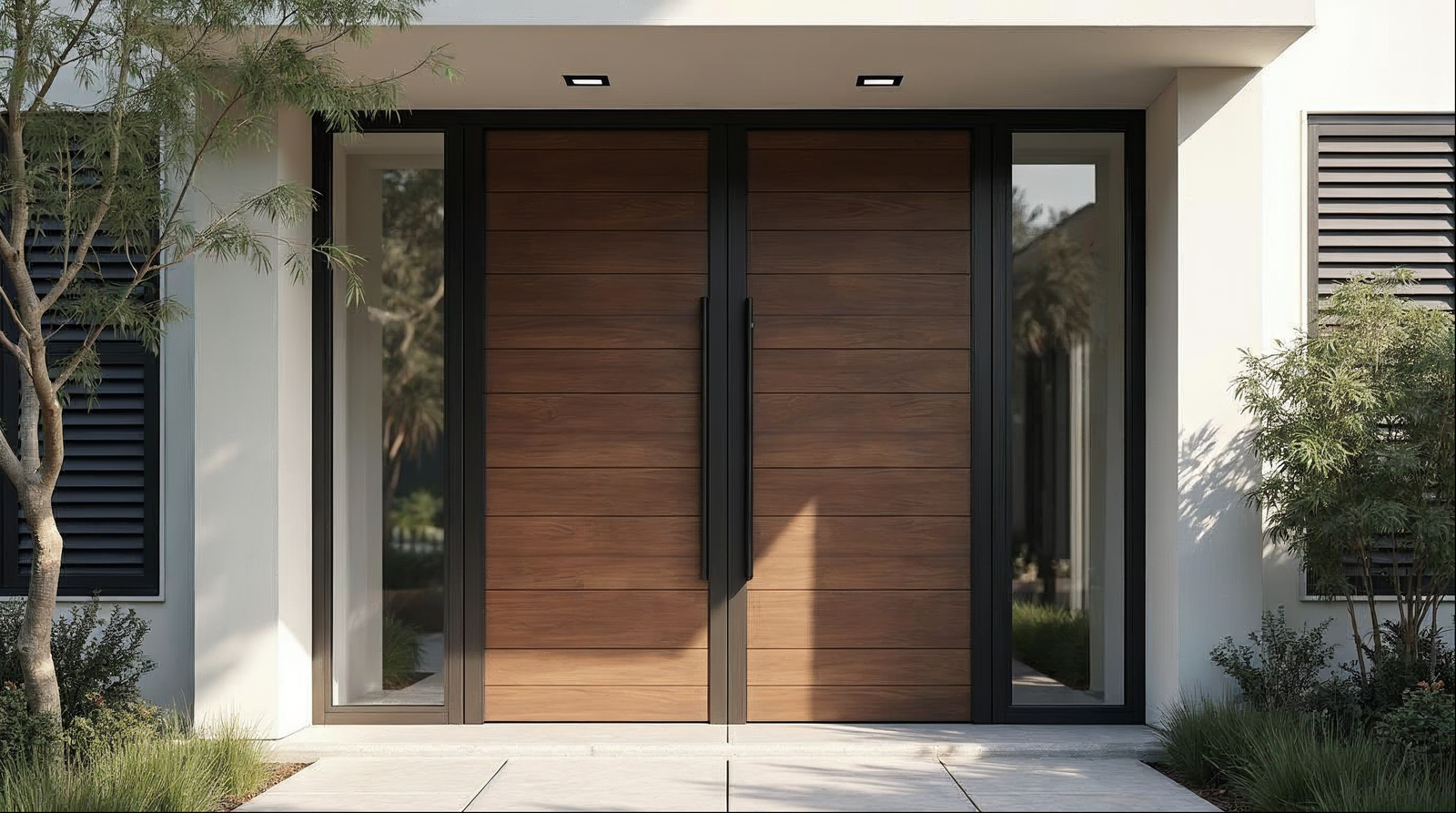

What Is Thermal Performance in a Pivot Door?

Pivot door thermal performance refers to how well the door system resists heat transfer between the interior of your home and the outside environment. Unlike operable windows or sliding panels that rely on multiple interlocking seals, a pivot door is a single oversized slab that rotates on a central axis — meaning its frame design, glass specification, and weatherstripping together determine how much conditioned air stays inside and how much heat radiates through the panel. In Florida's climate, where summer temperatures routinely exceed 95°F and humidity is relentless, a poorly performing pivot door can add hundreds of dollars per year to your cooling bill and create uncomfortable hot spots near the entry.

What Is U-Factor and Why Does It Matter for Pivot Doors?

U-factor (also called U-value) is the industry-standard measurement of a door or window assembly's rate of heat transfer — the lower the number, the better the insulation. U-factor is expressed in BTU/(hr·ft²·°F) and is tested and certified by the National Fenestration Rating Council (NFRC) on the whole door assembly, not just the glass or the frame in isolation. This distinction is critical: a manufacturer can advertise a low-U glass unit while the metal frame conducts heat freely, resulting in a whole-door U-factor that is far worse than the glazing number alone suggests.

For reference, the U-factor scale works like this:

• U-0.20 or below: Excellent — typical of triple-pane or highly optimized thermally broken assemblies.
• U-0.21 – U-0.30: Good — suitable for Florida's mixed-humid climate; meets most energy codes.
• U-0.31 – U-0.40: Marginal — acceptable in mild climates but underperforms in Florida heat.
• U-0.41 and above: Poor — common in non-thermally-broken aluminum systems; not recommended for conditioned spaces.

Florida's Energy Code (based on IECC 2021) generally requires fenestration U-factors at or below U-0.40 for Climate Zones 1 and 2, which cover most of the state. However, high-performance homes, LEED projects, and energy-conscious homeowners routinely target U-0.28 or lower to maximize HVAC efficiency.

How Does a Thermal Break Improve a Pivot Door's U-Factor?

A thermal break is a non-conductive material — typically a rigid polyamide (nylon) strip — inserted between the interior and exterior aluminum profiles of the frame and sash. Aluminum is an excellent conductor of heat (thermal conductivity ≈ 205 W/m·K), which means an untreated aluminum frame acts as a direct pathway for heat to flow into or out of your home. The thermal break interrupts that pathway, reducing the frame's conductivity by roughly 500–1,000× compared to solid aluminum.

Gladiator's pivot doors are engineered with a continuous thermal-break aluminum profile throughout the frame and panel construction. This means the thermal break runs the full perimeter of the door — there are no conductive "shortcuts" at corners or hardware mounting points. The result is a measurably lower whole-door U-factor compared to conventional aluminum pivot doors that rely on glass selection alone to hit energy targets.

What Role Does Glass Play in Pivot Door Thermal Performance?

Glass typically comprises 70–85% of a pivot door's total surface area, so glazing specification has an outsized effect on U-factor. Gladiator pivot doors include 6mm glass as standard, and all units are available in insulated glass unit (IGU) configurations. Key glazing variables that affect thermal performance include:

• Number of panes: Dual-pane IGUs trap an insulating air or gas layer between lites, dramatically reducing conduction compared to single glazing.
• Gas fill: Argon fill (90%+ concentration) reduces convection within the IGU cavity, lowering U-factor by approximately 10–15% versus air-filled units.
• Low-E coating: A microscopically thin metallic coating on one or more glass surfaces reflects long-wave infrared radiation. In Florida, a Low-E coating optimized for solar control (low solar heat gain coefficient, or SHGC) is especially important — it blocks summer solar heat gain while maintaining natural light transmission.
• Spacer system: Warm-edge spacers (foam or structural silicone) at the IGU perimeter reduce edge-of-glass heat loss, contributing meaningfully to the whole-door U-factor.

When specifying a pivot door for a Jacksonville-area home, pairing a thermally broken aluminum frame with a dual-pane, argon-filled, Low-E IGU is the most effective strategy for achieving a whole-door U-factor in the U-0.25–U-0.30 range — well ahead of Florida's minimum code requirements.

How Is Whole-Door U-Factor Different from Center-of-Glass U-Factor?

Whole-door U-factor accounts for every component of the assembly — the glass, the frame, the edge-of-glass zone, and the dividers (if any). Center-of-glass (COG) U-factor measures only the performance at the middle of the glass panel, where edge and frame effects are absent. COG values are almost always lower (better) than whole-door values, which is why comparing whole-door NFRC-certified U-factors across systems is the only apples-to-apples benchmark. Always ask for the NFRC label or test report, not just a glass specification sheet.

For oversized pivot doors — common in architectural projects where slab heights of 10 ft or more are specified — the glass-to-frame ratio is very high, which actually helps whole-door U-factor because the thermally broken frame occupies a smaller percentage of the total area. This is one reason large-format pivot doors can achieve surprisingly competitive whole-door U-factors when the glazing is well-specified.

Does Impact Glass Affect Pivot Door Thermal Performance?

Yes — and generally in a positive direction. Florida's coastal counties require impact-rated fenestration in accordance with the Florida Building Code and Miami-Dade NOA (Notice of Acceptance) protocols. Impact-rated glazing for pivot doors typically uses a laminated glass construction — two or more glass lites bonded with a polyvinyl butyral (PVB) or ionoplast interlayer. That interlayer adds a layer of material that slightly increases the glass assembly's resistance to heat transfer. An impact-rated dual-pane IGU with a Low-E coating and argon fill can achieve center-of-glass U-factors as low as U-0.22, making impact compliance and energy efficiency genuinely complementary goals rather than trade-offs.

Gladiator's pivot doors are engineered to accommodate impact-rated glazing across all standard and custom sizes, so homeowners in Jacksonville, Miami, Tampa, and other coastal Florida markets do not need to choose between structural performance and thermal efficiency. Explore our full range of architectural pivot doors to see available glass configurations.

How Do Pivot Doors Compare Thermally to Other Door Types?

Pivot doors can absolutely match or exceed the thermal performance of sliding or folding door systems when the frame and glass are properly specified. The key variables by door type are:

If you're also evaluating sliding glass doors or bi-fold doors for your project, the same thermal-break and glass-specification principles apply — Gladiator's full lineup uses the same thermally broken aluminum platform, so performance is consistent across product families.

What Else Affects Installed Thermal Performance?

Even a perfectly specified pivot door can underperform if installation details are overlooked. The most common field-level thermal vulnerabilities include:

• Rough-opening gaps: Any void between the frame and structural opening should be filled with low-expansion spray foam, not fiberglass batt, which compresses and loses R-value.
• Flashing and air sealing: Continuous air barrier integration at the head and jamb is as important as the door's own U-factor — infiltration bypasses the door entirely.
• Pivot hardware adjustment: A misaligned pivot creates an uneven slab-to-frame gap that breaks the weatherstrip seal. Gladiator's pivot hardware is adjustable post-installation so the seal can be tuned without replacing components.
• Threshold seal: Unlike a hinged door with a full-perimeter stop, a pivot door's threshold seal must accommodate the rotation arc. Specifying a quality magnetic or compression threshold seal eliminates the most common air-leakage point at the bottom of the door.

For homeowners considering a full indoor-outdoor living system, pairing a pivot entry with folding passthrough windows at a kitchen or bar counter creates a cohesive thermal envelope while maximizing ventilation when conditions allow.

Why Factory-Direct Matters for Thermal Specifications

When you order a pivot door through a dealer network, the thermal specifications are often set at the factory level and locked — you get what the catalog offers. Ordering factory-direct from Gladiator means you can specify the exact glass package, frame depth, thermal break configuration, and weatherstrip standard for your climate zone, project type, and energy targets. There's no distributor markup, no spec dilution, and no ambiguity about what's actually in the wall. Free nationwide shipping and a 15-year warranty are included on every unit — not add-ons negotiated at a dealer counter.

Ready to spec a pivot door for your project? Browse our pivot door collection or reach out to our technical team for a custom quote with full NFRC documentation.
